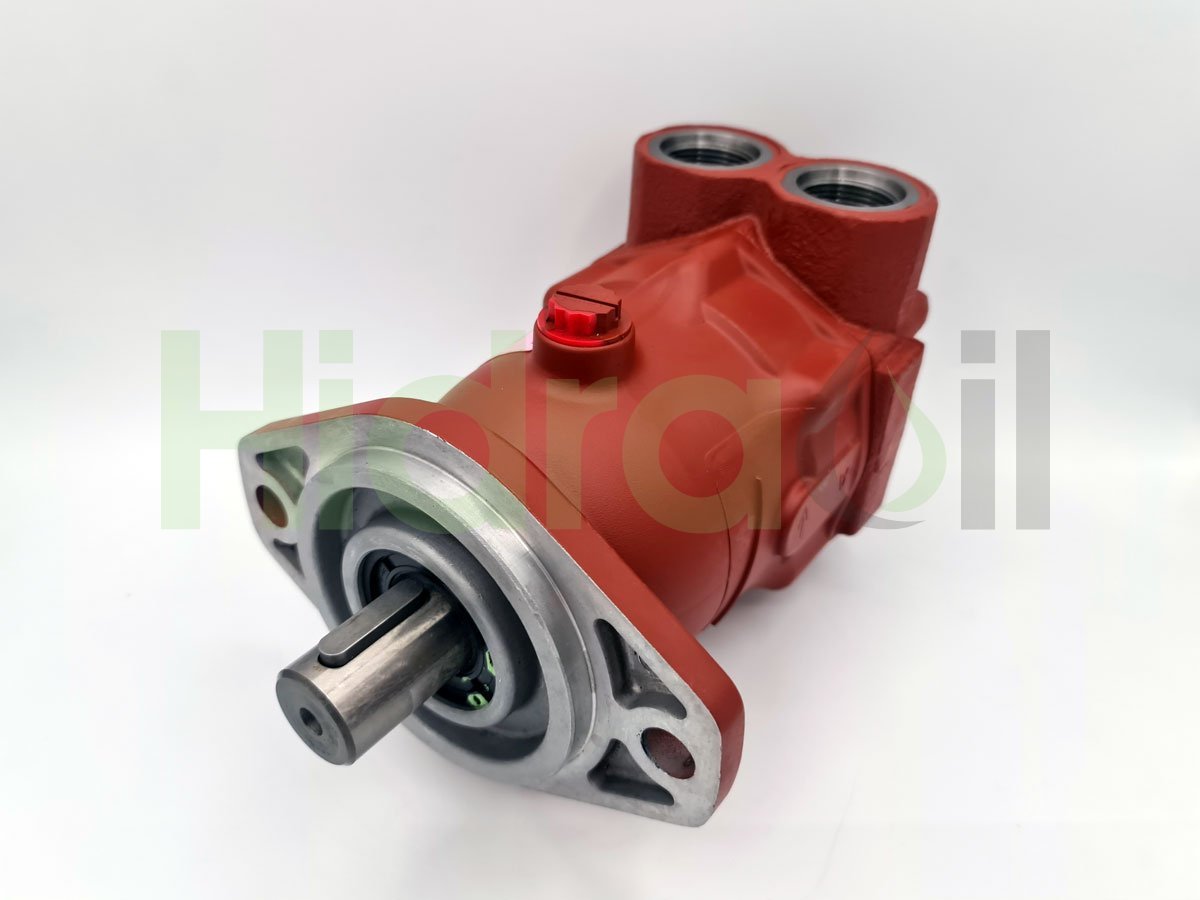

74315-DAS Eaton Cessna hydraulic piston motor 32.9 cm3 with cylindrical shaft D28.55 and same side ports
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX106906
- Brand
- Eaton
- Identification number
- 74315-DAS
- Other numbers
- 74315DAS 74315 DAS AAJADDB0A000A0B
- Approximate weight (kg)
- 9,5
Description
Hydraulic axial piston motor fixed displacement for medium pressure applications and high rpm's.
Type: Fixed displacement.
Displacement: 32.9 cm3/rev.
Max speed: 3600 rpm.
Max working pressure: 210 bar.
Rotation: Bi-directional.
Shaft type: Parallel diameter 28.55 mm (largo del eje 46 mm). Max. Torque en el eje: 337.5 Nm.
Flange type: SAE-B centraje from 101.6 mm y distancia from 146 mm entre centros from los 2 agujeros from fijación.
Type: Fixed displacement.
Displacement: 32.9 cm3/rev.
Max speed: 3600 rpm.
Max working pressure: 210 bar.
Rotation: Bi-directional.
Shaft type: Parallel diameter 28.55 mm (largo del eje 46 mm). Max. Torque en el eje: 337.5 Nm.
Flange type: SAE-B centraje from 101.6 mm y distancia from 146 mm entre centros from los 2 agujeros from fijación.
More information
- Category: Hydraulic Motors
- Category: Piston
- Category: Axial
- Category: Fixed displacement
- Category: Eaton
- Category: Medium pressure range
