Product identification

• Hidraoil Part number: GFX106942
• Brand of product: Eaton
• Part number: 74624-DAB
• Other numbers: 74624DAB AAZADAA0000A0B
• Approximate weight (kg): 11,0

Description

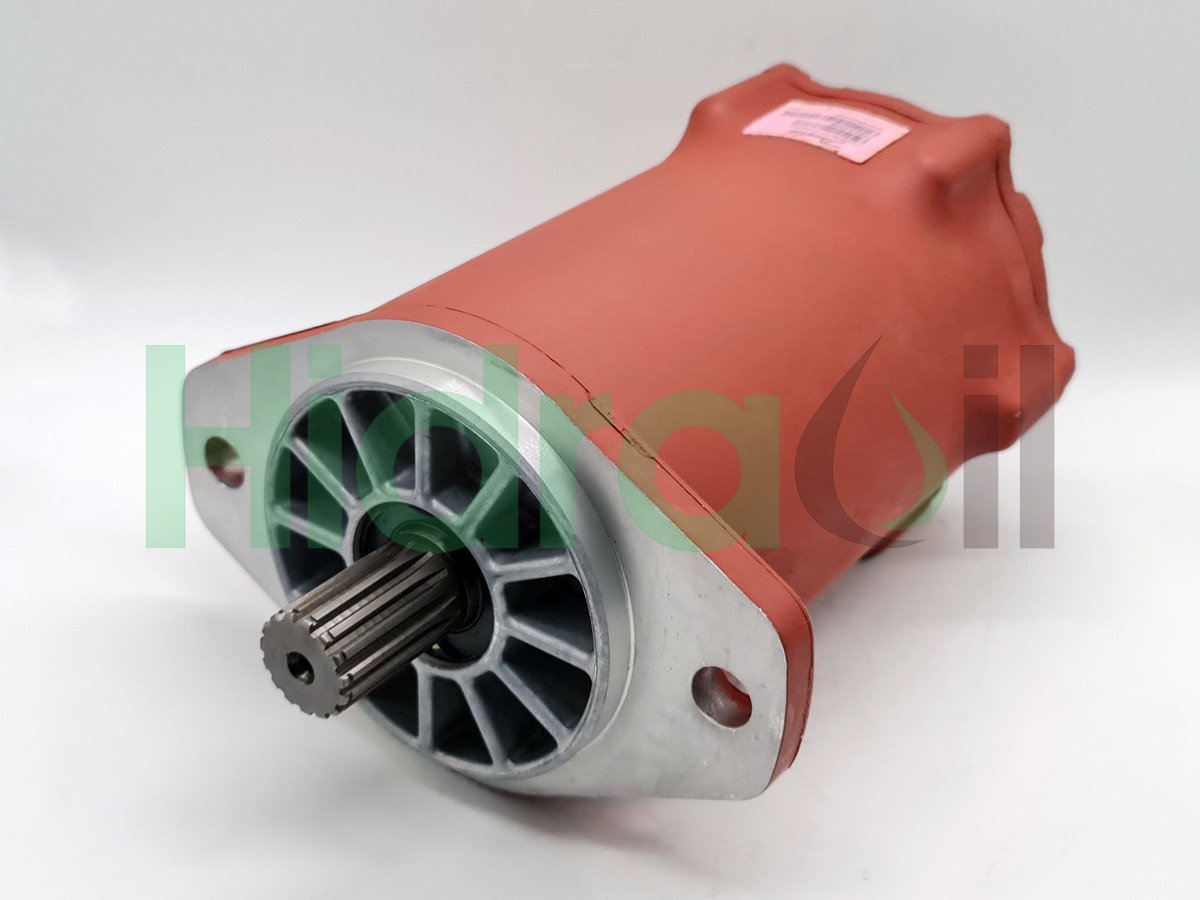

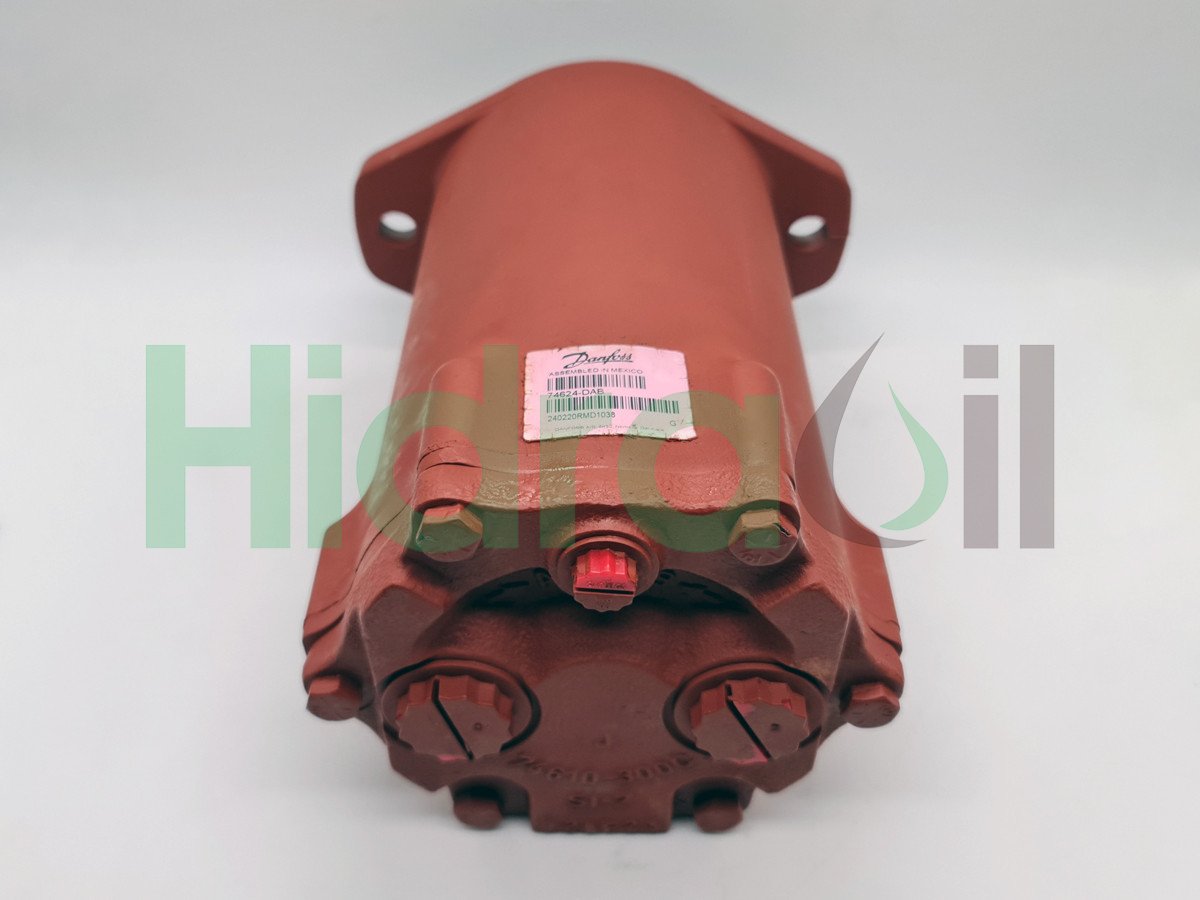

• Hydraulic axial piston motor for applications with high speed and medium pressure requirements.
  Displacement: 82.6 cm3.
  Shaft: Splined shaft 15 Tooth 16/32. Major diameter 25.4 mm.
  Flange: SAE-B 2 holes with centering diameter 101.6 mm.
  Ports: 1-1/16-12 UN-2B straight thread o-ring ports (rear).
