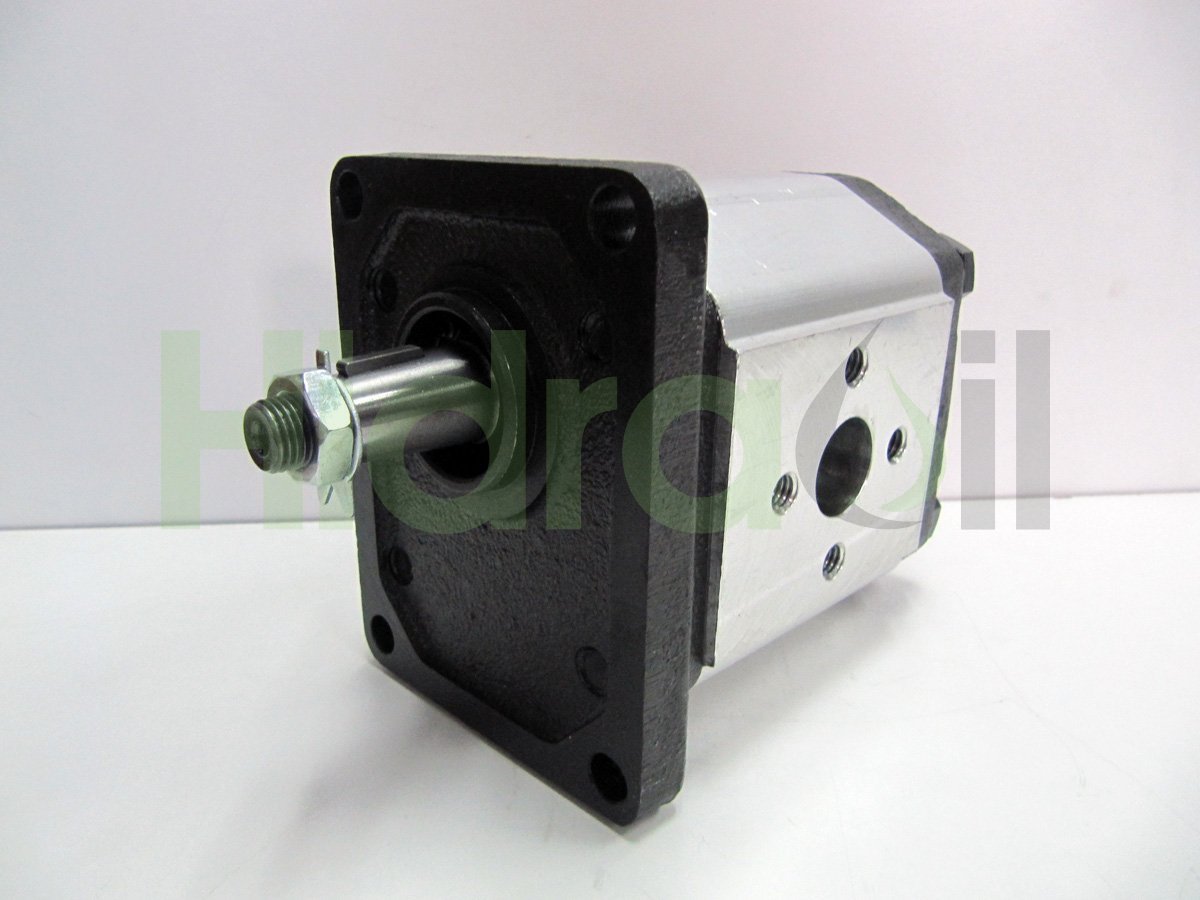

A25X Plessey hydraulic gear pump 11.4 cm3 tapered shaft
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101169
- Brand
- Plessey
- Identification number
- A25X
- Approximate weight (kg)
- 3,0
Description
Hydraulic external gear pump with aluminum case of group 2.
Flange type: European with 36.5 mm centering diameter and 4 holes with 96.1 x 71.4 mm distance between centers.
Displacement: 11.4 cm3/rev.
Flow @ 1500 rpm: 17.1 liters/minute.
Shaft type: Tapered 1:8.
Rotation: Counterclockwise rotation (looking at the pump shaft from the front).
Inlet port: Italian Flange type D40 M8.
Outlet port: Italian Flange type D30 M6.
Flange type: European with 36.5 mm centering diameter and 4 holes with 96.1 x 71.4 mm distance between centers.
Displacement: 11.4 cm3/rev.
Flow @ 1500 rpm: 17.1 liters/minute.
Shaft type: Tapered 1:8.
Rotation: Counterclockwise rotation (looking at the pump shaft from the front).
Inlet port: Italian Flange type D40 M8.
Outlet port: Italian Flange type D30 M6.
More information
- Category: Hydraulic Pumps
- Category: External gear
- Category: Aluminum
- Category: Group 2
- Category: Plessey
