ALP2BK7-D-30 Marzocchi hydraulic gear pump 21.1 cm3 tang shaft 8 mm

Price and availability SHIPPING WORLDWIDE
REQUEST PRICE & AVAILABILITY

Availability: Inquire about stock

Price and availability

Payment and shipping methods

Visa · Mastercard · PayPal · Stripe · Google Pay

DHL · FedEx · UPS

Product identification

Hidraoil Part number
GFX101246
Brand
Marzocchi
Identification number
ALP2BK7-D-30
Other numbers
ALP2BK7D30 2BK7-D-30 2BK7D30
Approximate weight (kg)
2,8

Description

Group 2 hydraulic external gear pump with an aluminum housing.
Displacement: 21.1 cm3/rev.
Flow @ 1500 rpm: 31.6 liters/minute.
Maximum working pressure: 180 bar.
Maximum speed: 3400 rpm.
Rotation: Clockwise rotation.

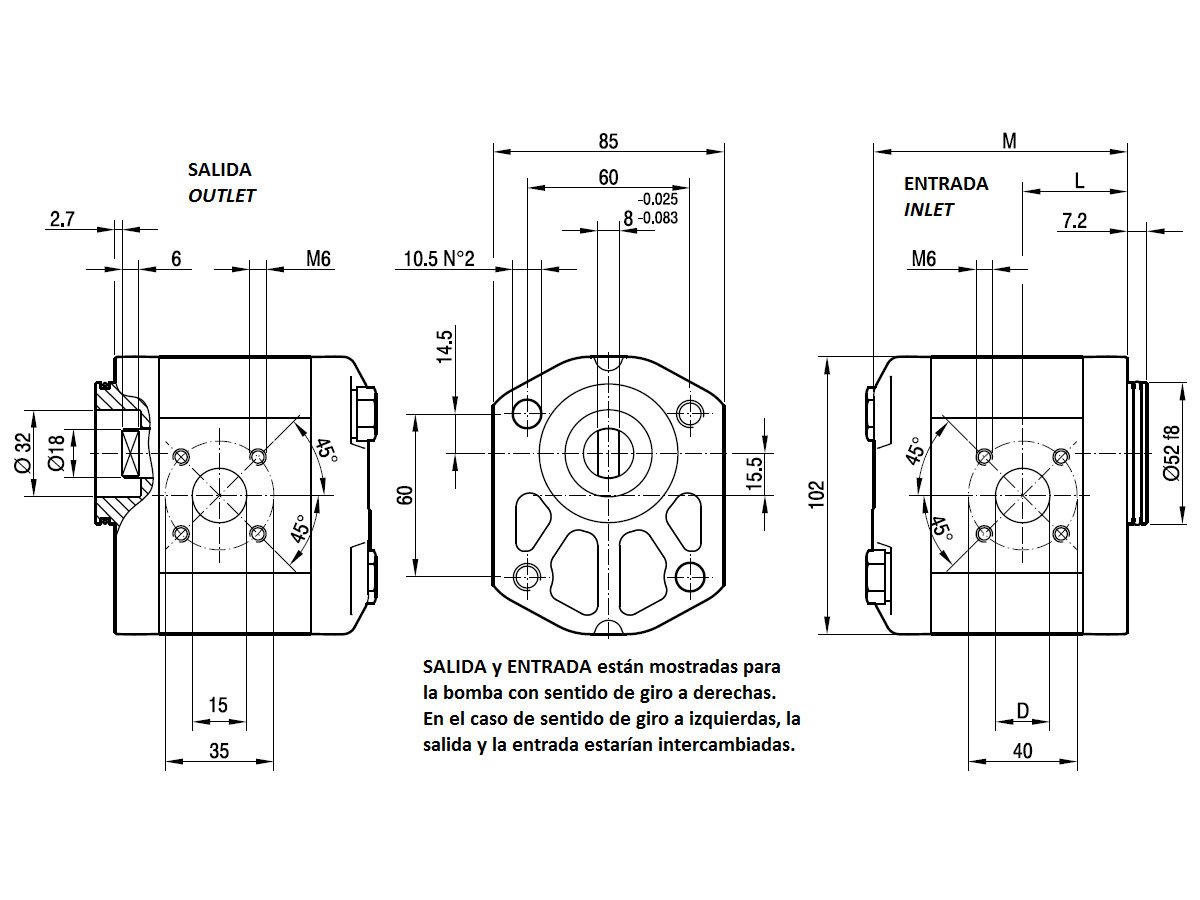

Shaft type: Straight shaft, 18 mm diameter, milled to 8 mm across the flats.
Flange type: 52 mm centering diameter, mounted with 2 diagonal screws.
Inlet ports: Square-pattern flange with 40 mm thread center spacing, M6 threads and a 20 mm oil passage diameter.
Outlet ports: Square-pattern flange with 35 mm thread center spacing, M6 threads and a 15 mm oil passage diameter.
More information
