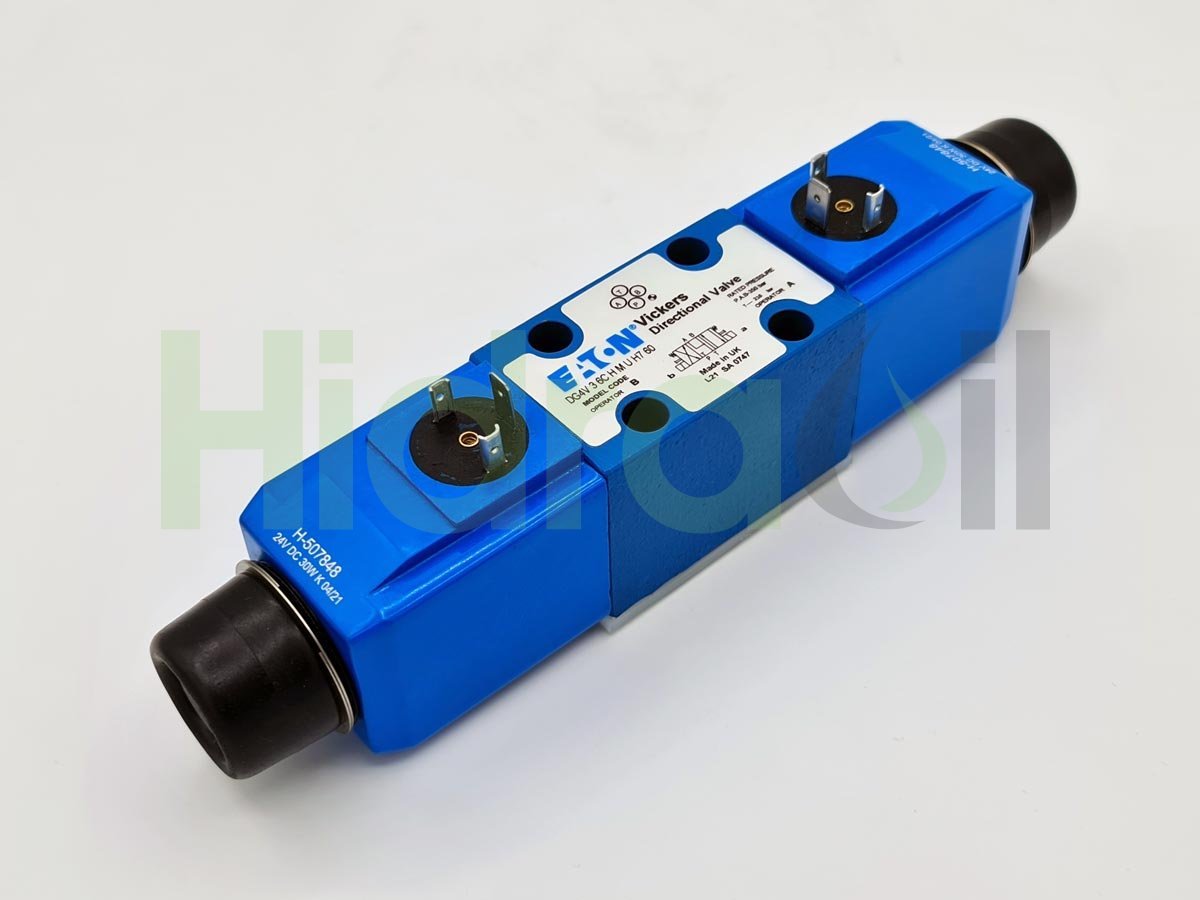

DG4V 3 6C H M U H7 60 Eaton Vickers directional control valve 4/3 CETOP 3 NG06 24V DC weatherproof override in solenoids ends only
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX103052
- Brand
- Vickers
- Identification number
- DG4V 3 6C H M U H7 60
- Other numbers
- DG4V36CHMUH760 869953
- Approximate weight (kg)
- 1,6
Description
Directional control valve solenoid type size CETOP 3 / NG 06 from 4 vías y 3 posiciones con bobinas from 24 V DC.
Number of ways and positions: 4 ways / 3 positions.
Spool type: Centro con puerto P cerrado. Puertos A y B up to T. Retorno up to centro por muelle.
Voltage: 24 V DC.
Mounting interface: NG06 / CETOP 3.
Max working pressure in ports P; A and B: 350 bar.
Max working pressure in port T: 210 bar.
Max oil flow: 80 liters/minute.
Versión: con el mando manual from los extremos from las bobinas protegidos up to prueba from intemperie.
Number of ways and positions: 4 ways / 3 positions.
Spool type: Centro con puerto P cerrado. Puertos A y B up to T. Retorno up to centro por muelle.
Voltage: 24 V DC.
Mounting interface: NG06 / CETOP 3.
Max working pressure in ports P; A and B: 350 bar.
Max working pressure in port T: 210 bar.
Max oil flow: 80 liters/minute.
Versión: con el mando manual from los extremos from las bobinas protegidos up to prueba from intemperie.
More information
- Category: Hydraulic Valves
- Category: Modular Sandwich Valves
- Category: Solenoid Directional Control Valves
- Category: CETOP 3 - NG6
- Category: Vickers
- Category: Double coil
- Category: 24V DC
