Product identification

• Hidraoil Part number: GFX101709
• Brand of product: Vickers

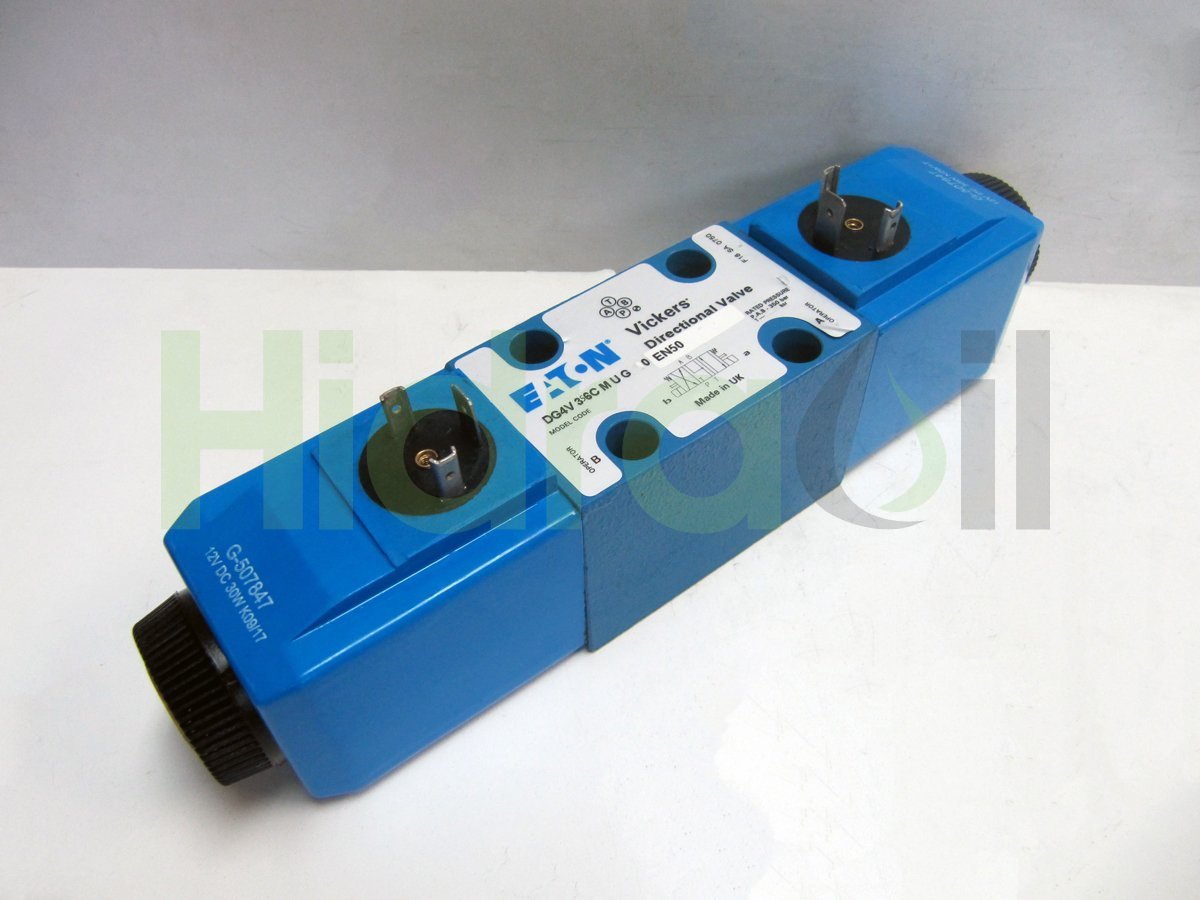

• Part number: DG4V 3S 6C M U G5 60 EN50
• Other numbers: DG4V3S6CMUG560EN50 DG4V-3S-6C-M-U-G5-60-EN50

Description

• Directional control valve solenoid type size CETOP 3 / NG 06 from 4 vías y 3 posiciones con bobinas from 12V DC.
  Number of ways and positions: 4 ways / 3 positions.
  Spool type: Centro con puerto P cerrado. Puertos A y B up to T. Retorno up to centro por muelle.
  Voltage: 12 V DC.
  Mounting interface: NG06 / CETOP 3.
  Max working pressure in ports P; A and B: 350 bar.
  Max working pressure in port T: 100 bar.
  Max oil flow: 40 liters/minute.
