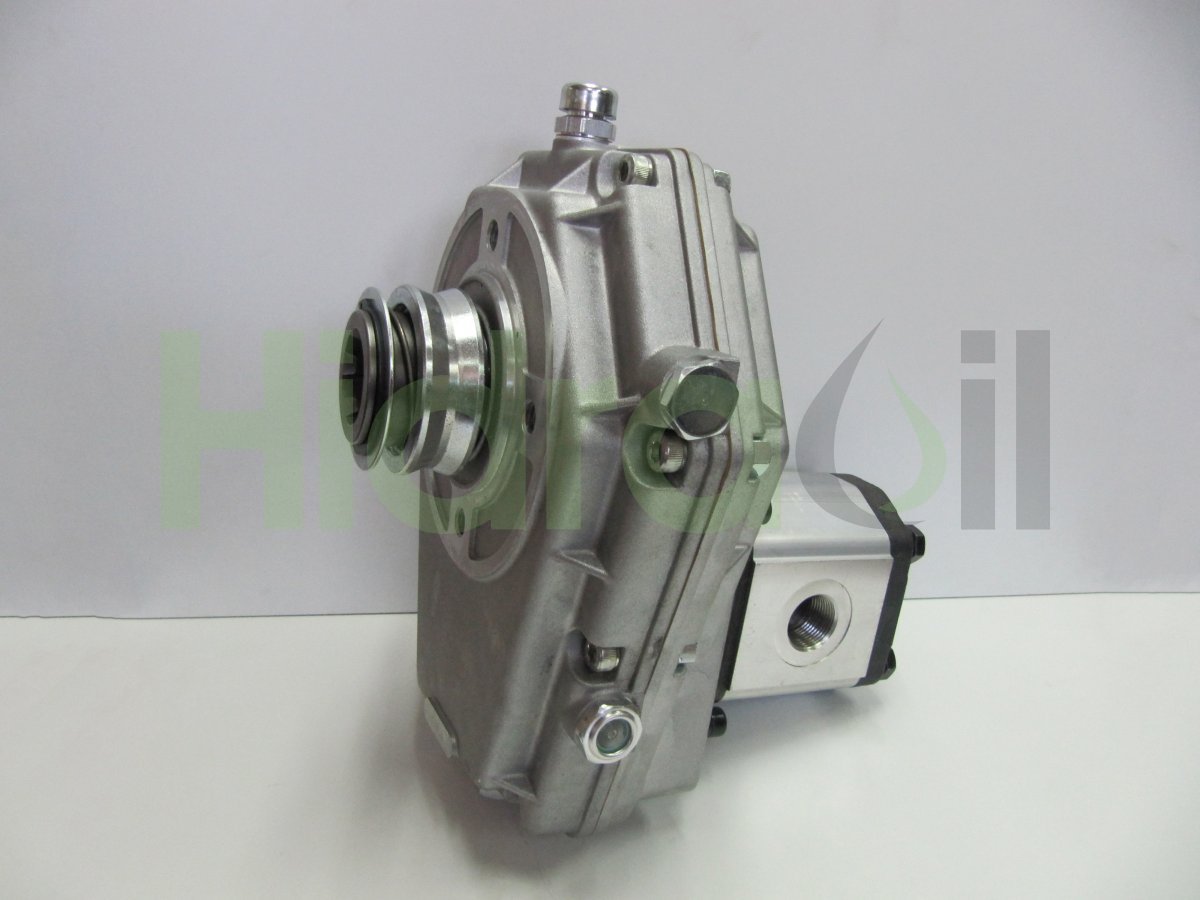

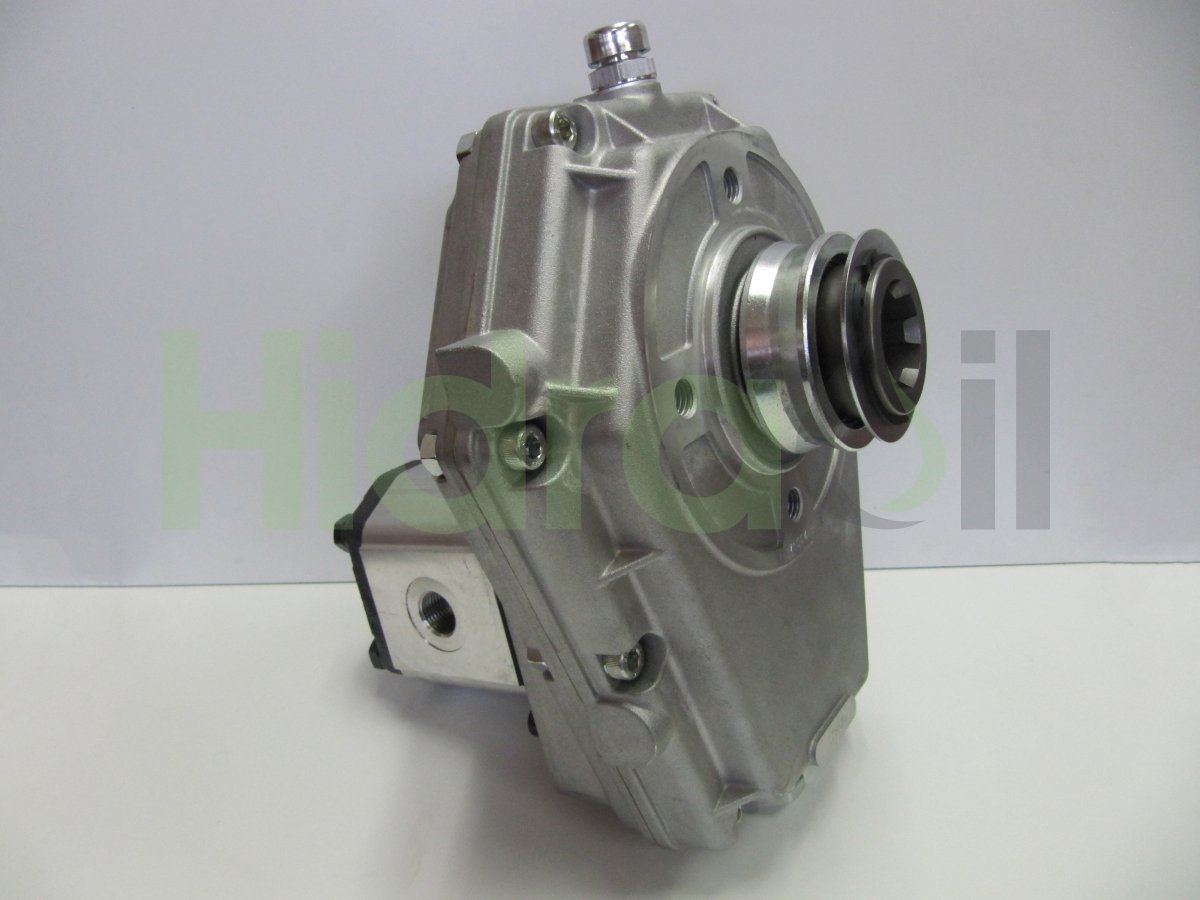

KM23HR-B2R40 Hidraoil agricultural PTO 40 liters per minute hydraulic gear pump assembly
Price and availability SHIPPING WORLDWIDEThe images are indicative and may differ from the final product delivered.
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX102830
- Brand
- Hidraoil
- Identification number
- KM23HR-B2R40
- Other numbers
- KM23HRB2R40
- Approximate weight (kg)
- 12,5
Description
Oil flow with the PTO running at 540 rpm: 40 liters/minute. PTO speed must not exceed 540 rpm.
Maximum permissible tractor PTO speed: 540 rpm
Maximum working pressure: 200 bar
Maximum motor power consumption: 20,5 CV (15 kW)
Gearbox input: Female quick coupling.
Pump oil inlet: Female GAS thread.
Pump oil outlet: Female GAS thread.
More information
- Category: Power Transmission
- Category: Speed PTO Gearbox for Pumps
- Category: Speed PTO Gearbox and Hydraulic Pump Assembly
- Category: Female Shaft
- Last updated: 2020-04-02 10:51:00
