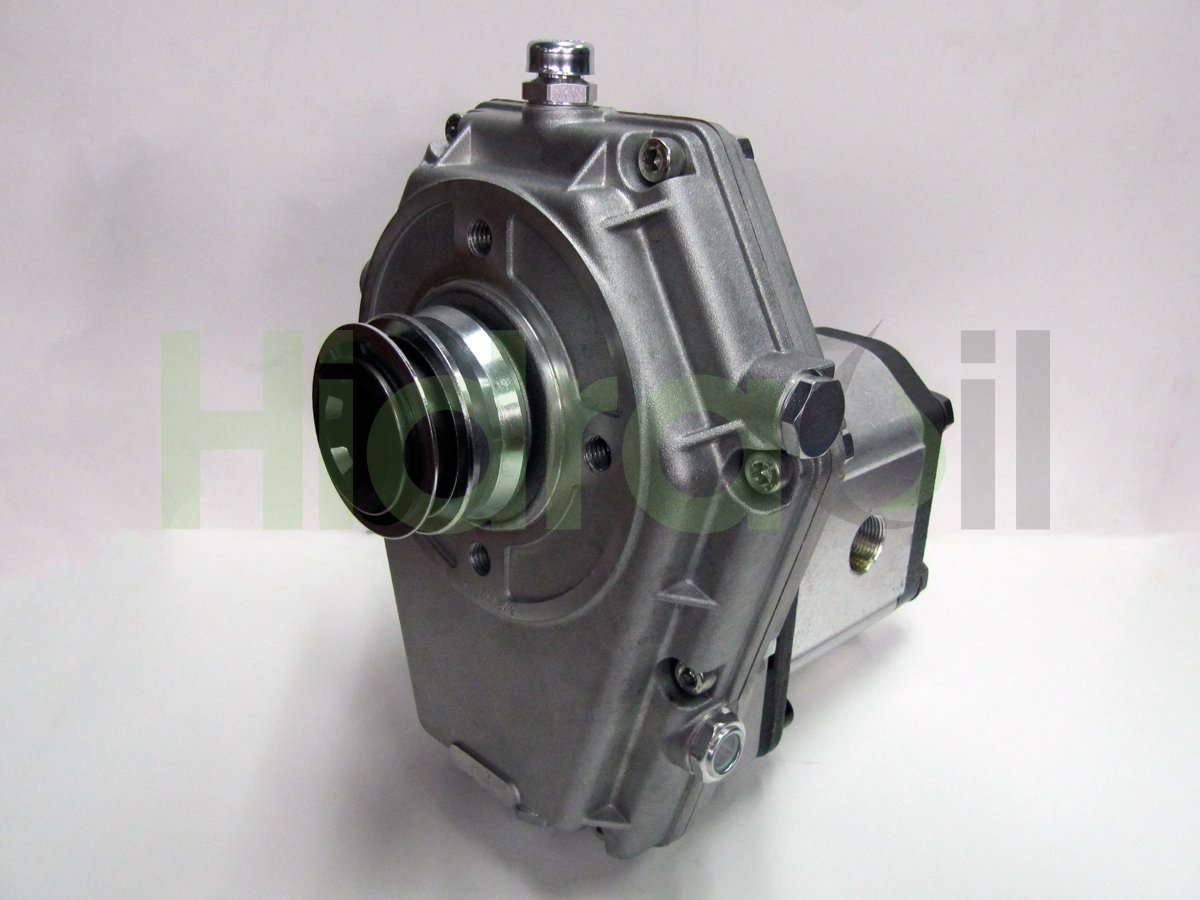

KM23HR-B3R50 Hidraoil agricultural PTO 50 liters per minute hydraulic gear pump assembly
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX102834
- Brand
- Hidraoil
- Identification number
- KM23HR-B3R50
- Other numbers
- KM23HRB3R50
- Approximate weight (kg)
- 17,0
Description
Bomba hidráulica tamaño 3 y multiplicador tamaño 3 para toma from fuerza tractor from 540 rpm con estriado agrícola estándar from 6 dientes y diámetro exterior 35 mm (1"3/8).
Oil flow con la toma from fuerza girando up to 540 rpm: 50 liters/minute. No está permitida una velocidad from la toma from fuerza superior up to 540 rpm.
Max working pressure: 200 bar.
Power from consumo motor máxima: 25 CV (18 kW)
Entrada del multiplicador: Hembra rápida
Toma from entrada from aceite from la bomba: Rosca hembra GAS.
Outlet port from aceite from la bomba: Rosca hembra GAS.
Oil flow con la toma from fuerza girando up to 540 rpm: 50 liters/minute. No está permitida una velocidad from la toma from fuerza superior up to 540 rpm.
Max working pressure: 200 bar.
Power from consumo motor máxima: 25 CV (18 kW)
Entrada del multiplicador: Hembra rápida
Toma from entrada from aceite from la bomba: Rosca hembra GAS.
Outlet port from aceite from la bomba: Rosca hembra GAS.
More information
- Category: Power Transmission
- Category: Speed PTO Gearbox for Pumps
- Category: Speed PTO Gearbox and Hydraulic Pump Assembly
- Category: Female Shaft
- Last updated: 2020-04-02 10:56:00
