KM30.38L0-83E3-LEB/ED-N Casappa hydraulic gear motor 38 cm3 tapered shaft 1:8 and side drain
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101556
- Brand
- Casappa
- Identification number
- KM30.38L0-83E3-LED/ED-N
- Other numbers
- 03578453 KM3038L083E3LEDEDN 03578453 KM30 38 LO 83E3 KM30.38LO-83E3-LED/ED-N KM3038LO83E3LEDEDN
- Approximate weight (kg)
- 12,6
Description

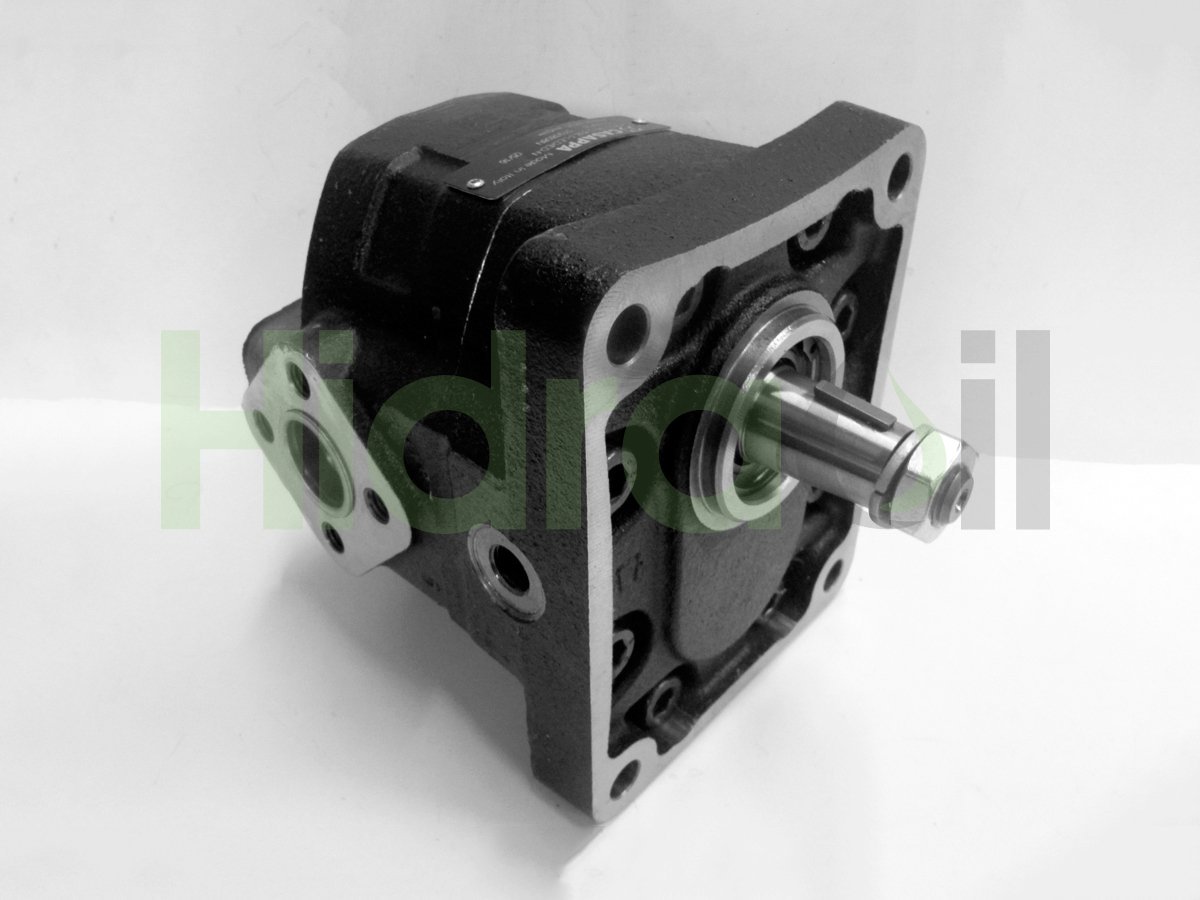

Hydraulic external gear motor Group 3 with cast iron case.
Displacement: 38 cm3/rev.
Max working Pressure: 221 bar.
Speed Range: From 350 up to 3000 rpm.
Rotation: Reversible con drenaje en brida delantera.
Shaft type: Tapered 1:8 with 4 mm key width.
Flange type: European type with 50.8 mm centering diameter and 4 holes distance 128 x 98 mm.
Inlet ports: Flange type port.
Outlet ports: Flange type port.
Displacement: 38 cm3/rev.
Max working Pressure: 221 bar.
Speed Range: From 350 up to 3000 rpm.
Rotation: Reversible con drenaje en brida delantera.
Shaft type: Tapered 1:8 with 4 mm key width.
Flange type: European type with 50.8 mm centering diameter and 4 holes distance 128 x 98 mm.
Inlet ports: Flange type port.
Outlet ports: Flange type port.
More information
- Category: Hydraulic Motors
- Category: External gear
- Category: Cast iron
- Category: Group 3
- Category: Casappa
- Category: Side case drain
- Last updated: 2022-10-10 15:00:00
