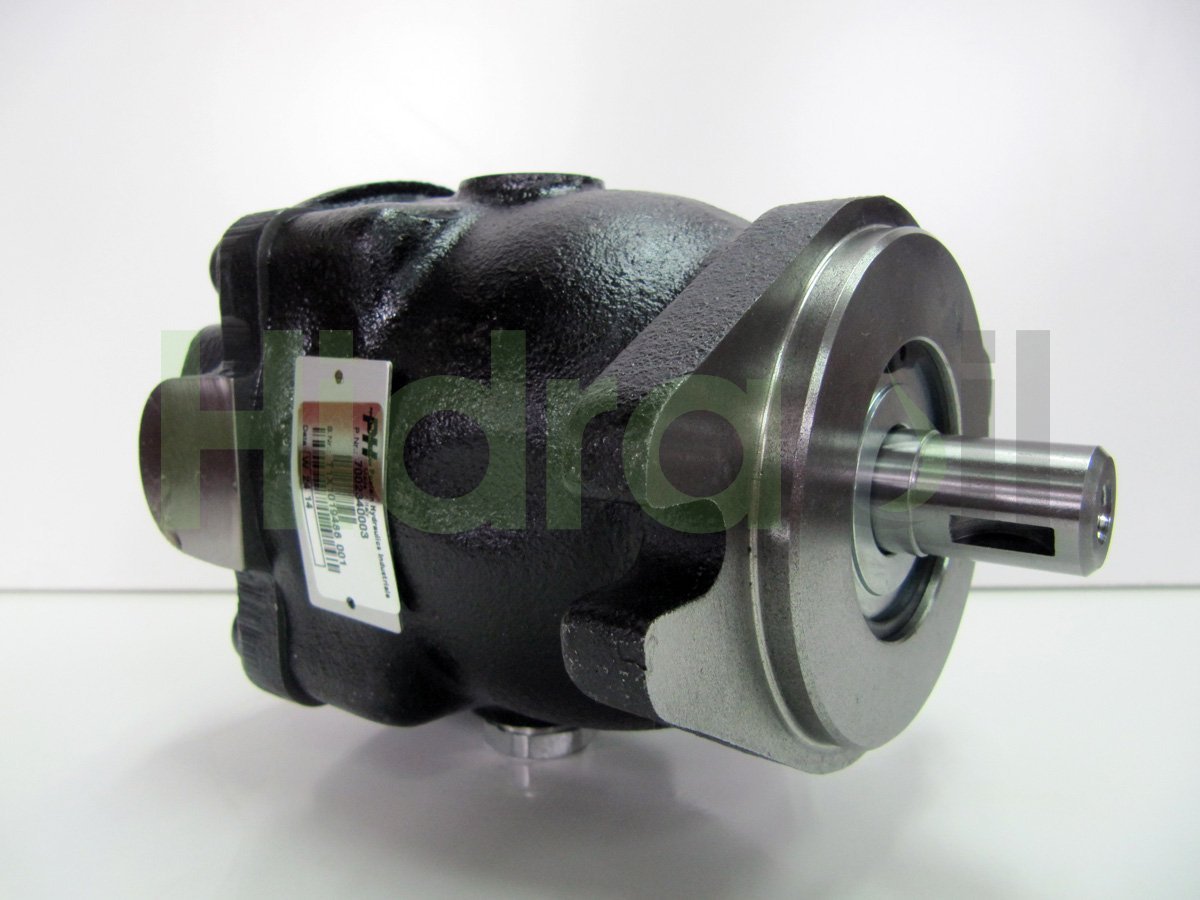

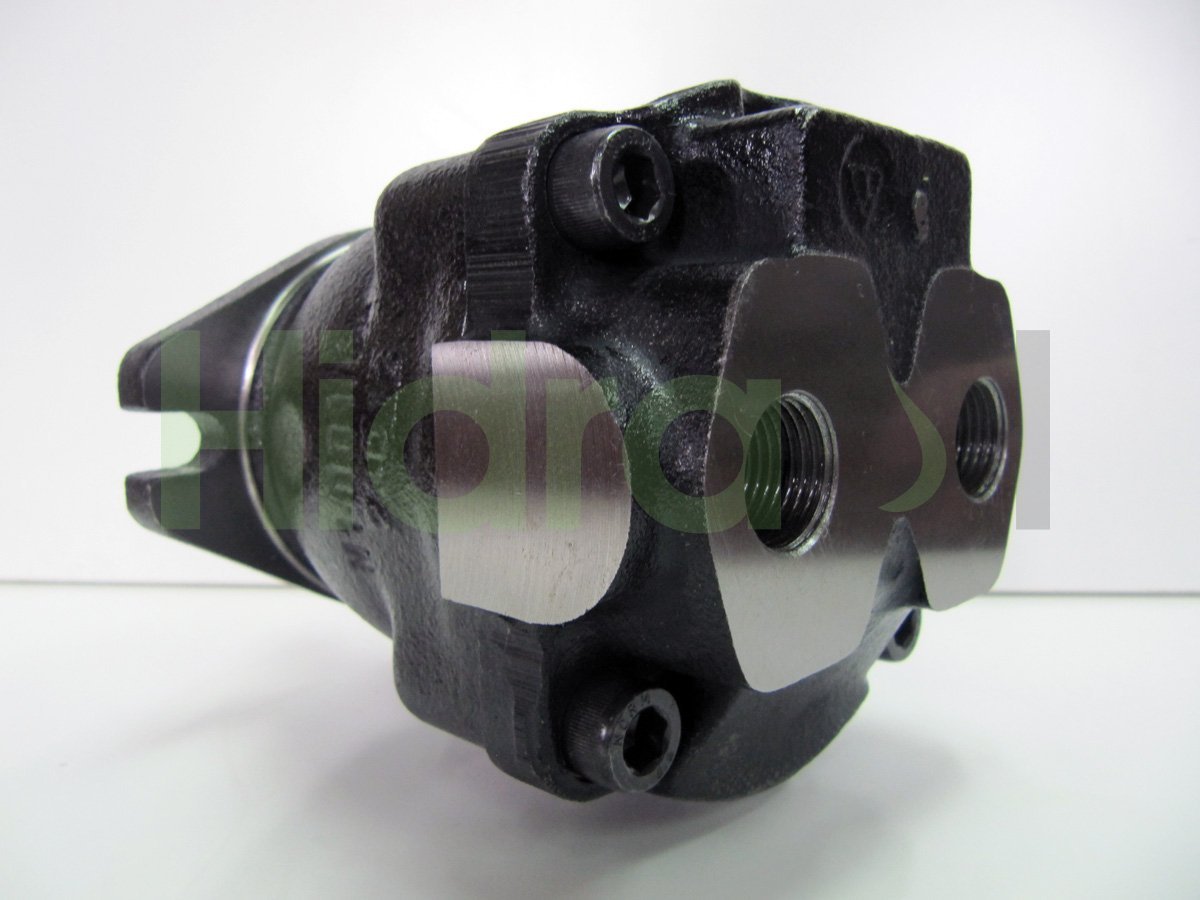

M1 09 C2 04 00 00 Poclain hydraulic piston motor 9 cm3 straight shaft 19 mm
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100355
- Brand
- Poclain
- Identification number
- M1 09 C2 04 00 00
- Other numbers
- M109C2040000
- Approximate weight (kg)
- 7,0
Description
Hydraulic Axial Piston Motor fixed displacement.
Type: From cilindrada fija
Displacement: 9,08 cm3/rev
Max speed: 3600 rpm
Min. Speed: 500 rpm
Working pressure: 210 bar
Max. Pressure: 320 bar
Power entregada up to presión nominal y máxima velocidad: 11,4 kW (15,29 CV)
Rotation: Bidireccional
Shaft type: Parallel diameter 19 mm
Type: From cilindrada fija
Displacement: 9,08 cm3/rev
Max speed: 3600 rpm
Min. Speed: 500 rpm
Working pressure: 210 bar
Max. Pressure: 320 bar
Power entregada up to presión nominal y máxima velocidad: 11,4 kW (15,29 CV)
Rotation: Bidireccional
Shaft type: Parallel diameter 19 mm
More information
- Category: Hydraulic Motors
- Category: Piston
- Category: Axial
- Category: Fixed displacement
- Category: Poclain
