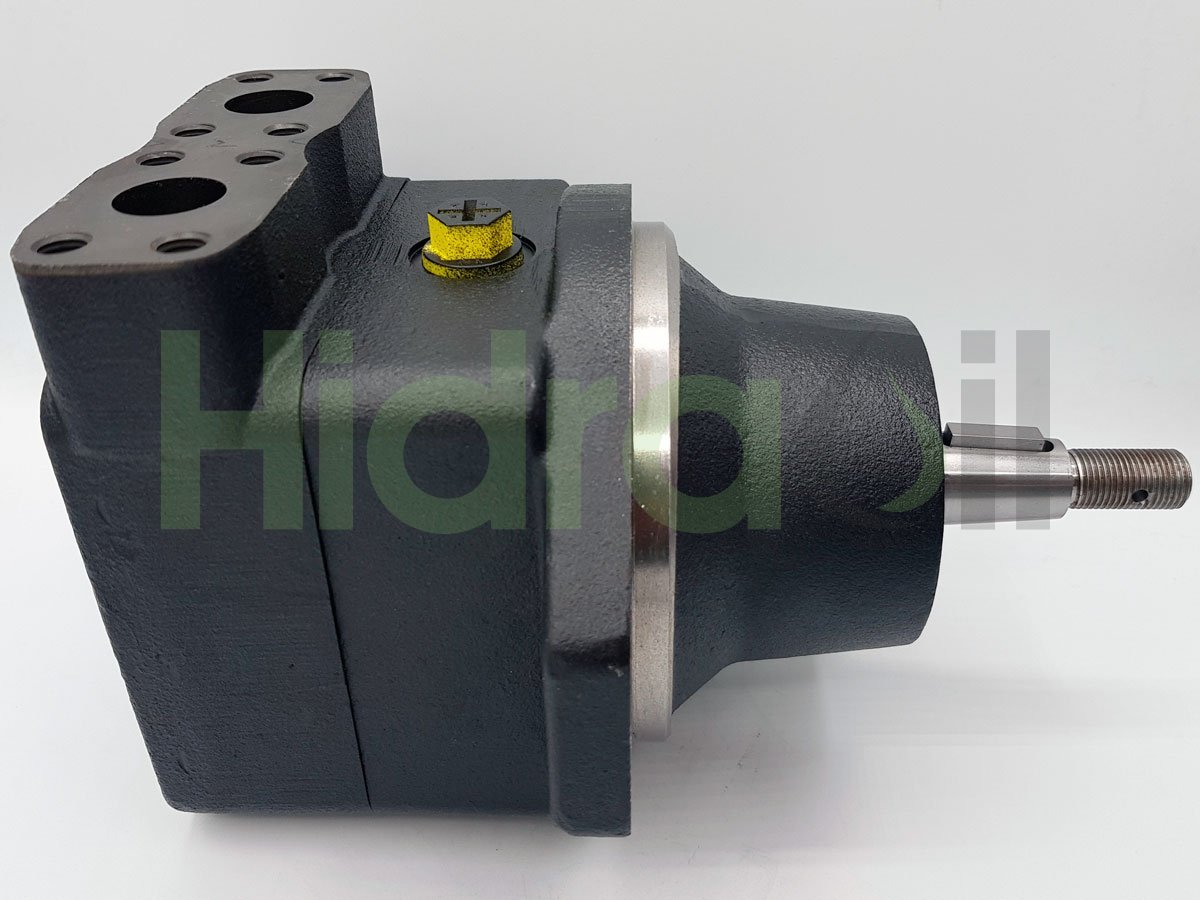

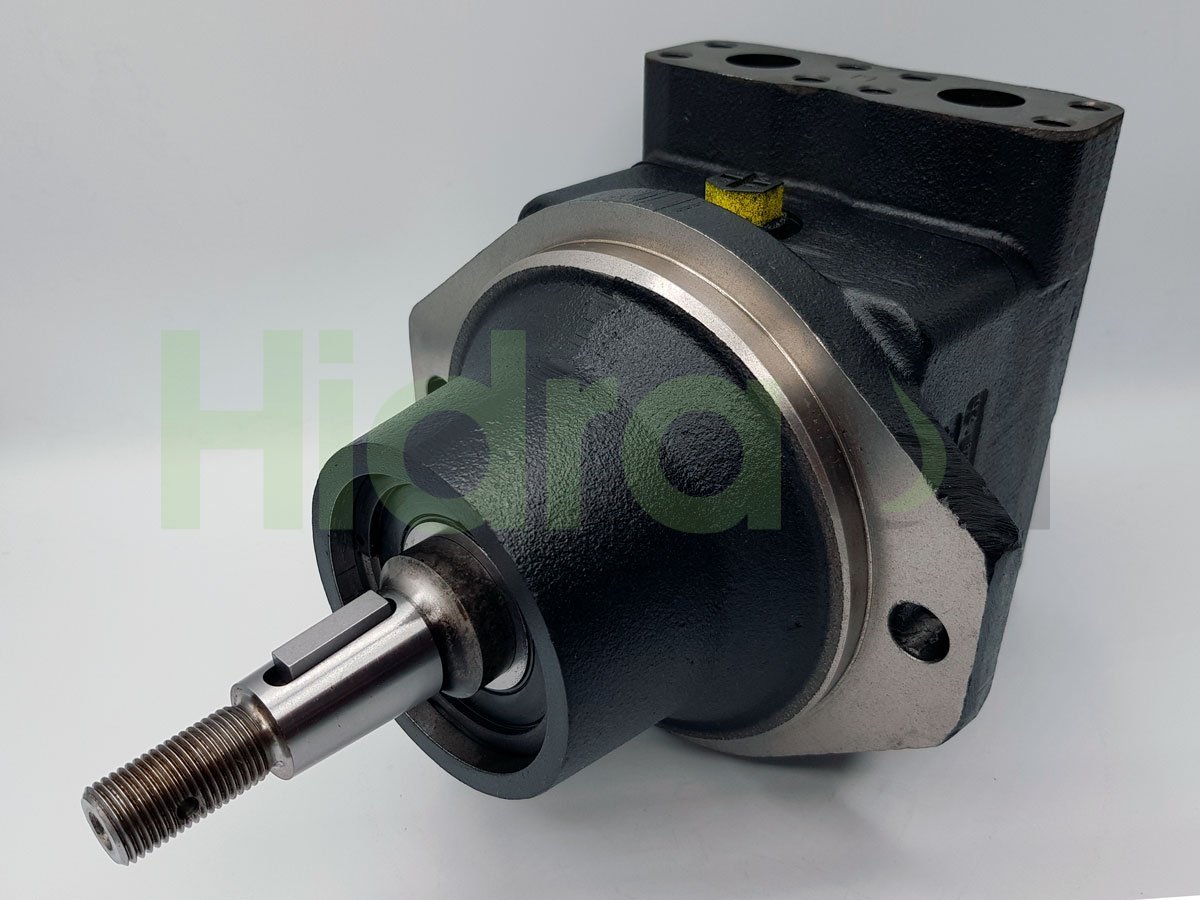

M5BF 036 1N02 B1M 00000 Denison Parker hydraulic vane motor 36 cm3 bidirectional tapered shaft side ported
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX103332
- Brand
- Denison
- Identification number
- M5BF 036 1N02 B1M 00000
- Other numbers
- M5BF0361N02B1M00000
- Approximate weight (kg)
- 18,5
Description
Motor hidráulico from paletas from alto rendimiento bidireccional from cilindrada fija with paralled shaft y tomas laterales.
Displacement: 36 ml/rev.
Par motor teórico: 0,5726 Nm/bar.
Rotation: Bidirectional with external drain.
Shaft type: Tapered con rosca from M16x1.5.
Flange type: centraje from diámetro 135 mm y fijación mediante 2 tornillos with center-to-center distance from 160 mm.
Ports: Puertos tipo brida SAE por la parte lateral del motor.
Displacement: 36 ml/rev.
Par motor teórico: 0,5726 Nm/bar.
Rotation: Bidirectional with external drain.
Shaft type: Tapered con rosca from M16x1.5.
Flange type: centraje from diámetro 135 mm y fijación mediante 2 tornillos with center-to-center distance from 160 mm.
Ports: Puertos tipo brida SAE por la parte lateral del motor.
More information
- Category: Hydraulic Motors
- Category: Vane
- Category: Fixed displacement
- Category: Denison Parker
- Category: M5B
- Category: M5BF
- Category: Bidirectional
