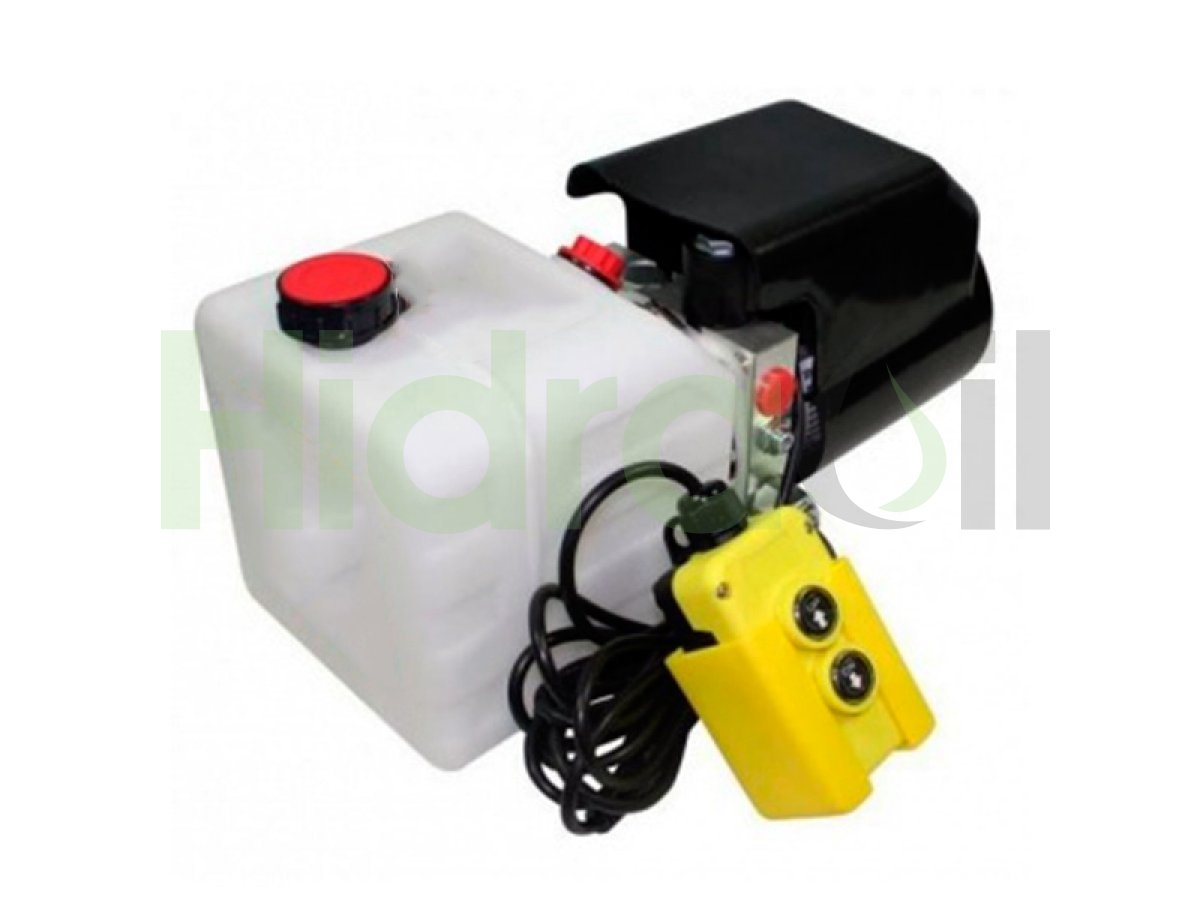

MH24VSE1.6KW4.5 Hidraoil hydraulic power pack 24V DC for tipping trailer with single acting cylinder 1,6 kW 4,5 liters
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101784
- Brand
- Hidraoil
- Identification number
- MH24VSE1.6KW4.5
- Other numbers
- MH24VSE16KW45
- Approximate weight (kg)
- 6,0
Description
Hydraulic mini power pack with DC motor for tipping trailers with single-acting cylinders. It is powered through the truck, van, 4x4, etc., DC battery.
Applications: for tippers, tipping trailers, or any other application with a single-acting cylinder where the on-off cycle times for this motor are respected (see S3 value).
Hydraulic pump flow rate: maximum of approximately 5 liters/minute (at high working pressures, the flow rate decreases).
Tank size: 4.5 liters.
Voltage of the electric motor and solenoid valve: 24V DC (direct current).
Power of the electric motor: 1.6 kW.
S3 value: 7%. This means that in a 10-minute period, the ON cycle (motor running time) should not exceed 42 seconds.
Working pressure: Regulated up to 160 bar but can be adjusted between 40 and 200 bar.
Includes: Control panel for raising and lowering the hydraulic cylinder. It also includes a flow regulator to control the lowering speed of the single-acting cylinder.
Applications: for tippers, tipping trailers, or any other application with a single-acting cylinder where the on-off cycle times for this motor are respected (see S3 value).
Hydraulic pump flow rate: maximum of approximately 5 liters/minute (at high working pressures, the flow rate decreases).
Tank size: 4.5 liters.
Voltage of the electric motor and solenoid valve: 24V DC (direct current).
Power of the electric motor: 1.6 kW.
S3 value: 7%. This means that in a 10-minute period, the ON cycle (motor running time) should not exceed 42 seconds.
Working pressure: Regulated up to 160 bar but can be adjusted between 40 and 200 bar.
Includes: Control panel for raising and lowering the hydraulic cylinder. It also includes a flow regulator to control the lowering speed of the single-acting cylinder.
More information
- Category: Hydraulic Systems
- Category: Hydraulic Power Packs
- Category: With motor 24V DC
- Last updated: 2018-11-14 23:14:33
