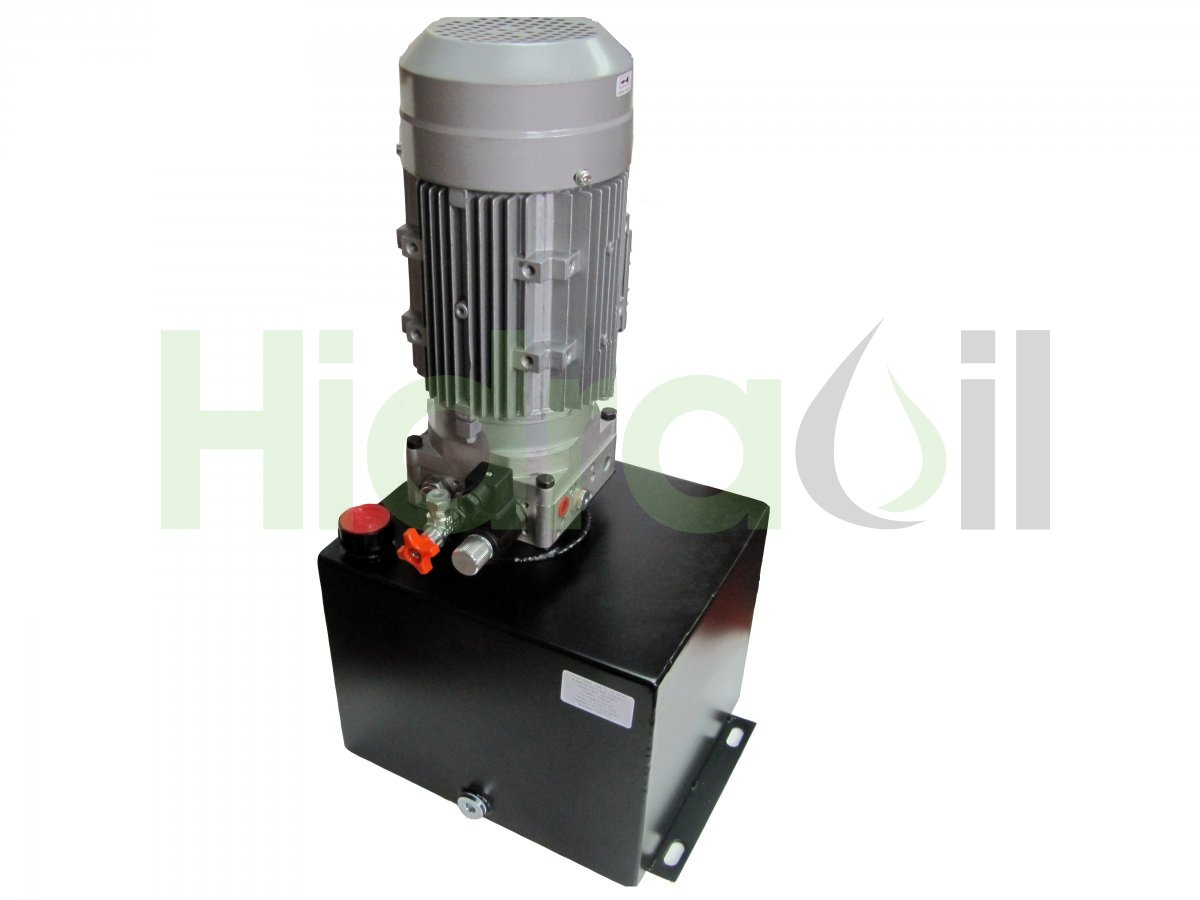

MH380VAC Hidraoil mini power pack 380V AC
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100013
- Brand
- Hidraoil
- Identification number
- MH380VAC
- Approximate weight (kg)
- Inquire for details
Description
Modular and configurable hydraulic mini power pack with a three-phase 220/400V or 400/660V electric motor for single-acting or double-acting actuators (cylinders and/or hydraulic motors).
The components of the mini power pack and the budget will depend on the type of application and the required needs.
To make an offer; please indicate in your inquiry the oil flow rate needed for the application; the maximum required pressure; the type of application; the duty cycle (operating time vs. stopping time); number of cycles per hour; actuators that will be moved by the mini power pack (single-acting or double-acting cylinders; hydraulic motors; etc.).
Applications: Lifting platforms; forklifts; tippers; cranes; door opening/closing; agricultural; industrial; naval applications; etc.
Hydraulic pump flow rate: Up to 25 liters/minute. Indicate the required value in your inquiry.
Mini power pack layout/mounting: Horizontal or vertical according to the space available in the final machine.
Options: Flow regulator to control the speed of ascent or descent in the case that the actuator is a cylinder; push button or manual lever in case of emergency; all types of block or modular insertable valves; pressure gauge assembly with shut-off valve; flow regulators to control the rotation speed in case the actuators are hydraulic motors; suction filters; pressure and/or return filters; etc.
Power motor: Up to 7.5 kW (10 HP).
Max. Pressure: From 20 up to 280 bar. Indicate the required value in your inquiry.
Solenoid valve voltage: 220V 50Hz AC (alternating current) or 12/24/48V DC/AC (as needed).
Motor voltage: 380-400V AC (three-phase alternating current).
The components of the mini power pack and the budget will depend on the type of application and the required needs.
To make an offer; please indicate in your inquiry the oil flow rate needed for the application; the maximum required pressure; the type of application; the duty cycle (operating time vs. stopping time); number of cycles per hour; actuators that will be moved by the mini power pack (single-acting or double-acting cylinders; hydraulic motors; etc.).
Applications: Lifting platforms; forklifts; tippers; cranes; door opening/closing; agricultural; industrial; naval applications; etc.
Hydraulic pump flow rate: Up to 25 liters/minute. Indicate the required value in your inquiry.
Mini power pack layout/mounting: Horizontal or vertical according to the space available in the final machine.
Options: Flow regulator to control the speed of ascent or descent in the case that the actuator is a cylinder; push button or manual lever in case of emergency; all types of block or modular insertable valves; pressure gauge assembly with shut-off valve; flow regulators to control the rotation speed in case the actuators are hydraulic motors; suction filters; pressure and/or return filters; etc.
Power motor: Up to 7.5 kW (10 HP).
Max. Pressure: From 20 up to 280 bar. Indicate the required value in your inquiry.
Solenoid valve voltage: 220V 50Hz AC (alternating current) or 12/24/48V DC/AC (as needed).
Motor voltage: 380-400V AC (three-phase alternating current).
More information
- Category: Hydraulic Systems
- Category: Hydraulic Power Packs
- Category: With Three-Phase motor
- Last updated: 2018-09-24 08:30:24
