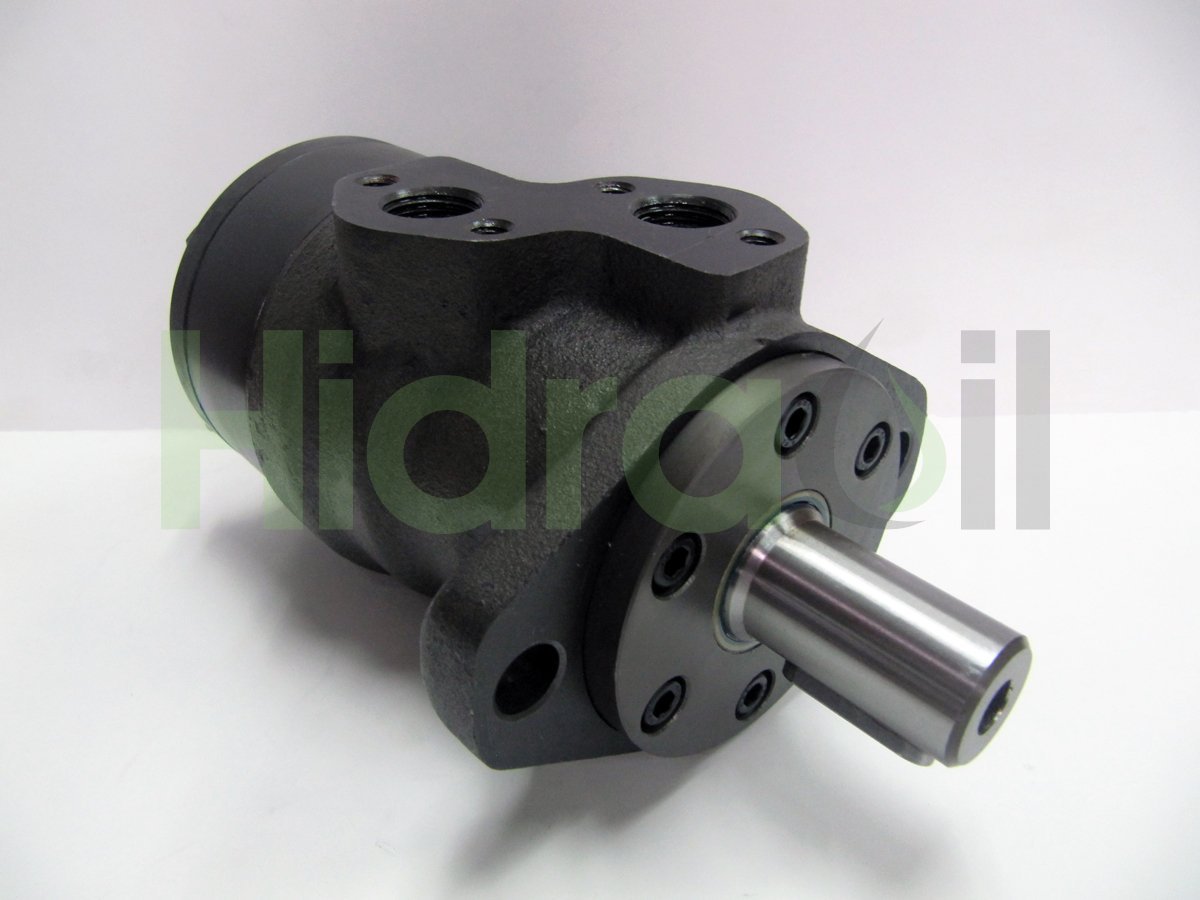

MR250C M+S Hydraulic orbital motor 250 cm3 with straight shaft 25 mm
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101912
- Brand
- M+S Hydraulic
- Identification number
- MR250C
- Other numbers
- MR 250 C/4 MR250C4 MR250C3 MPR250CD MPR-250-CD MPR 250 CD STM
- Approximate weight (kg)
- 8,4
Description
Hydraulic Orbital Motor for Low speed and High Torque applications con retén del eje reforzado.
Shaft type: Straight shaft 25 mm Diameter and 8 mm Width parallel key.
Flange type: Brida from 2 agujeros con centraje from diámetro 82,5 mm y distancia from 106,4 mm entre centros.
Displacement: 250,1 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 240 rpm (intermittent operation: 300 rpm).
Max. Output Power: 8 kW (intermittent operation: 9,5 kW).
Max. Pressure Drop: 110 bar (intermittent operation: 140 bar; peak load:200 bar)
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute)
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Straight shaft 25 mm Diameter and 8 mm Width parallel key.
Flange type: Brida from 2 agujeros con centraje from diámetro 82,5 mm y distancia from 106,4 mm entre centros.
Displacement: 250,1 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 240 rpm (intermittent operation: 300 rpm).
Max. Output Power: 8 kW (intermittent operation: 9,5 kW).
Max. Pressure Drop: 110 bar (intermittent operation: 140 bar; peak load:200 bar)
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute)
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: M+S Hydraulic
- Category: MR
- Category: Shaft D25mm
- Last updated: 2019-01-13 20:55:16
