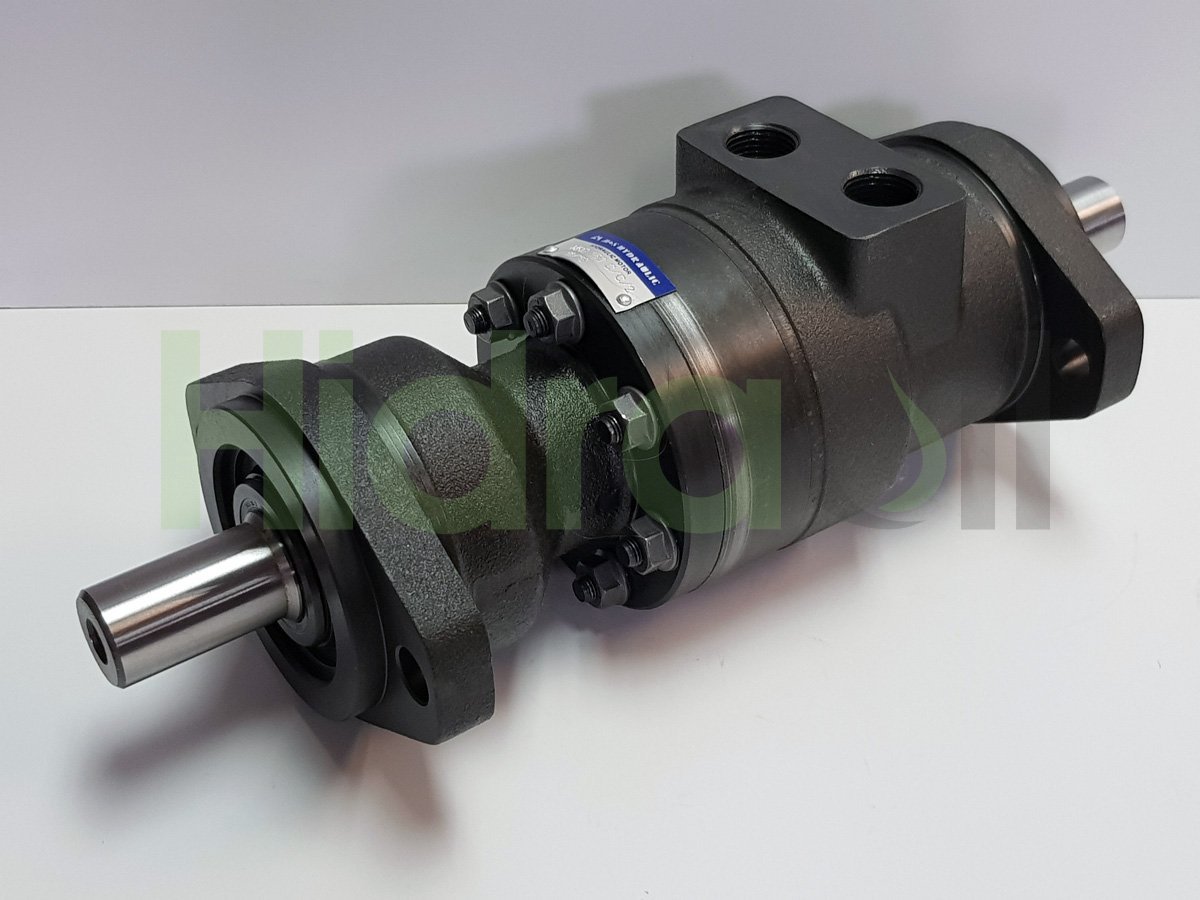

MRB 160 C/C M+S Hydraulic orbital motor 160 cm3 dual shaft 25 mm diameter
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101865
- Brand
- M+S Hydraulic
- Identification number
- MRB 160 C/C
- Other numbers
- MRB160CC MRB160 CC MRB160C/C MRB 160 C/C /4 MRB160C/C/4 MRB160CC4
- Approximate weight (kg)
- 10,0
Description
Hydraulic orbital motor for High Torque applications. (geroller) from baja velocidad y alto par con doble eje.

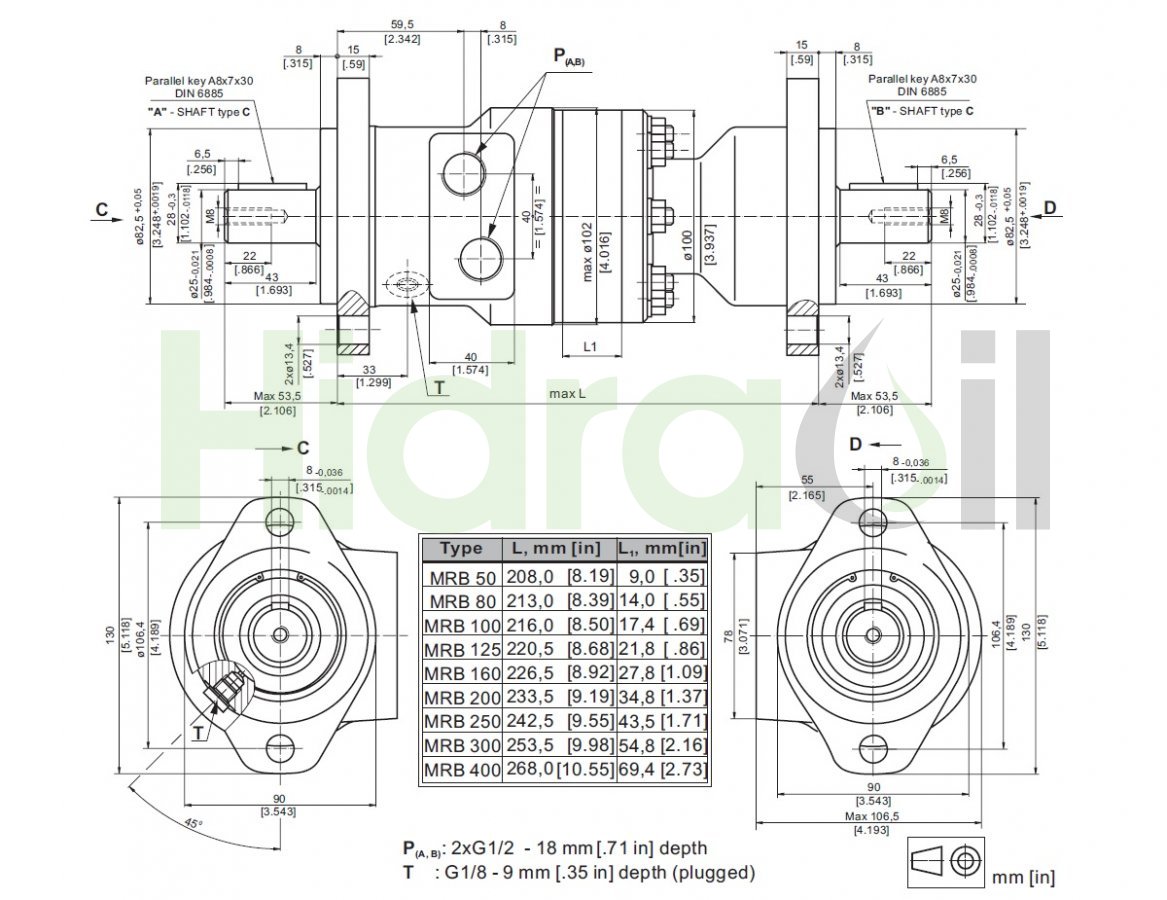

Shaft type: Doble eje from salida from tipo cilíndrico from diámetro 25 mm con chaveta from ancho 8 mm.
Flange type: Doble brida tipo SAE-A con centraje from diámetro 82,5 mm y distancia from 106,4 mm entre centros from los 2 taladros.
Displacement: 159,6 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: 1/8" GAS.
Max speed: 375 rpm (intermittent operation: 470 rpm).
Max. Torque en el eje "A": 200 Nm (intermittent operation: 230 Nm).
Max. Torque en el eje "B": 200 Nm (intermittent operation: 230 Nm).
Max. Output Power: 10 kW (intermittent operation: 12,5 kW).
Max. Pressure Drop: 130 bar (intermittent operation: 175 bar).
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute).
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Shaft type: Doble eje from salida from tipo cilíndrico from diámetro 25 mm con chaveta from ancho 8 mm.
Flange type: Doble brida tipo SAE-A con centraje from diámetro 82,5 mm y distancia from 106,4 mm entre centros from los 2 taladros.
Displacement: 159,6 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: 1/8" GAS.
Max speed: 375 rpm (intermittent operation: 470 rpm).
Max. Torque en el eje "A": 200 Nm (intermittent operation: 230 Nm).
Max. Torque en el eje "B": 200 Nm (intermittent operation: 230 Nm).
Max. Output Power: 10 kW (intermittent operation: 12,5 kW).
Max. Pressure Drop: 130 bar (intermittent operation: 175 bar).
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute).
Intermittent operation: the permissible values may occur for max. 10% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: M+S Hydraulic
- Category: MR
- Category: Dual Shaft MRB
