PV016R1L1T1NMMC Parker hydraulic piston pump variable displacement 16 cm3 splined shaft DIN
SHIPPING WORLDWIDE

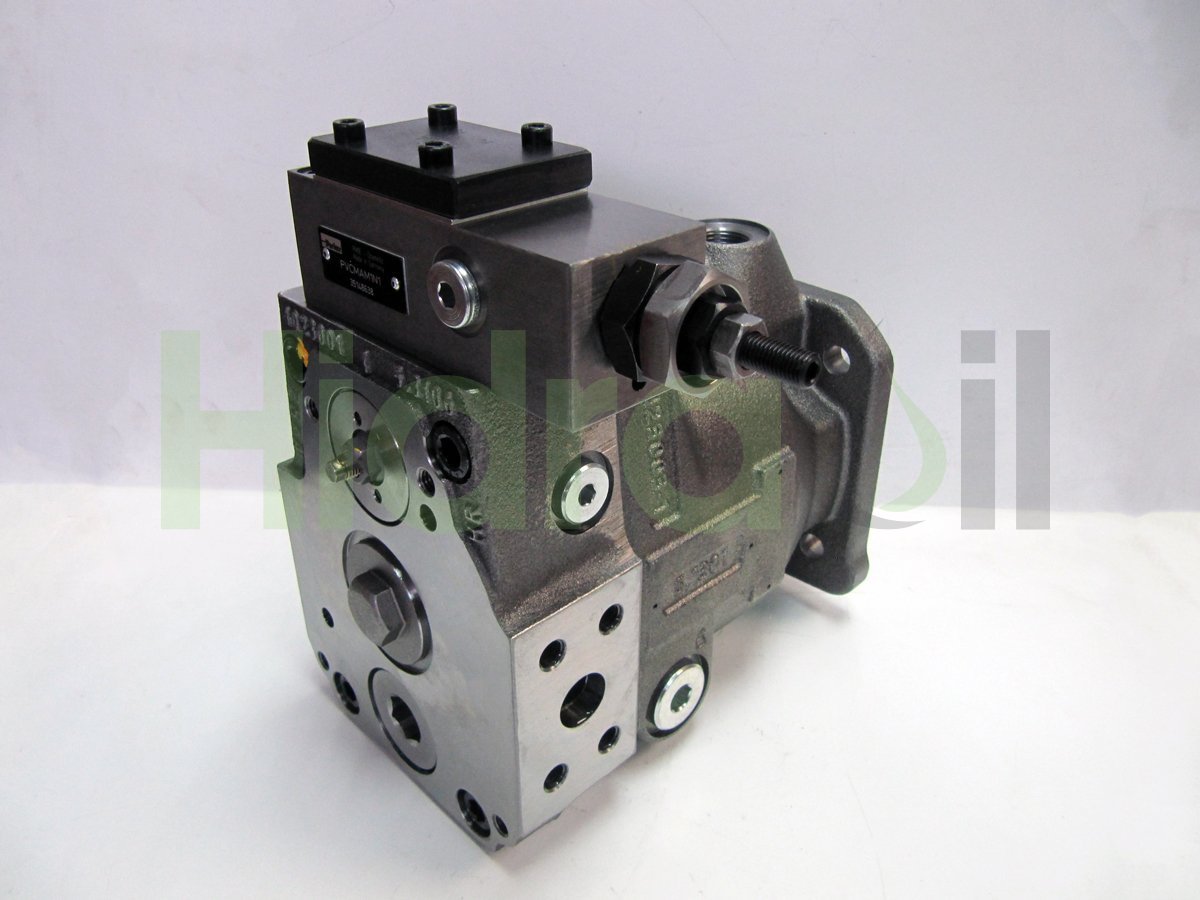

The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101668
- Brand
- Parker
- Identification number
- PV016R1L1T1NMMC
- Approximate weight (kg)
- 19,0
Description
Hydraulic piston pump for High Pressure applications.
Type: Variable displacement for open circuit.
Max displacement: 16 cm3/rev.
Flow @ 1500 rpm: 24 liters/minute
Max Working Pressure: 350 bar.
Max speed: 3000 rpm.
Min. Speed: 400 rpm.
Power at 1500 rpm and 350 bar: 15,5 kW.
Rotation: CW rotation.
Control Type: MMC (Pressure control with integrated pilot valve).
Shaft type: Splined DIN 5480 (W25x1.5x15x8f).
Flange type: Square 4 holes Flange with 100 mm centering diameter and 125 mm diameter between hole centers.
Type: Variable displacement for open circuit.
Max displacement: 16 cm3/rev.
Flow @ 1500 rpm: 24 liters/minute
Max Working Pressure: 350 bar.
Max speed: 3000 rpm.
Min. Speed: 400 rpm.
Power at 1500 rpm and 350 bar: 15,5 kW.
Rotation: CW rotation.
Control Type: MMC (Pressure control with integrated pilot valve).
Shaft type: Splined DIN 5480 (W25x1.5x15x8f).
Flange type: Square 4 holes Flange with 100 mm centering diameter and 125 mm diameter between hole centers.
More information
- Category: Hydraulic Pumps
- Category: Piston
- Category: Axial
- Category: Variable displacement
- Category: Parker
- Category: PV-Plus
- Category: Splined shaft DIN
- Last updated: 2018-08-06 08:48:04
