SNM2/14SC06 SNM2NN/014BN06SAM6E5E5NNNN/NNNNN Sauer Danfoss Turolla hydraulic gear motor 14 cm3 bidirectional splined z9 shaft UNF threads
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX103120
- Brand
- Sauer Danfoss
- Identification number
- SNM2/14SC06 121.20.053.00 SNM2NN/014BN06SAM6E5E5NNNN/NNNNN
- Other numbers
- SNM2NN 014 B N 06SA M6 E5E5 NNNN NNNNN SNM2 14 SC06 SNM214SC06 SNM2NN014BN06SAM6E5E5NNNNNNNNN
- Approximate weight (kg)
- 2,9
Description

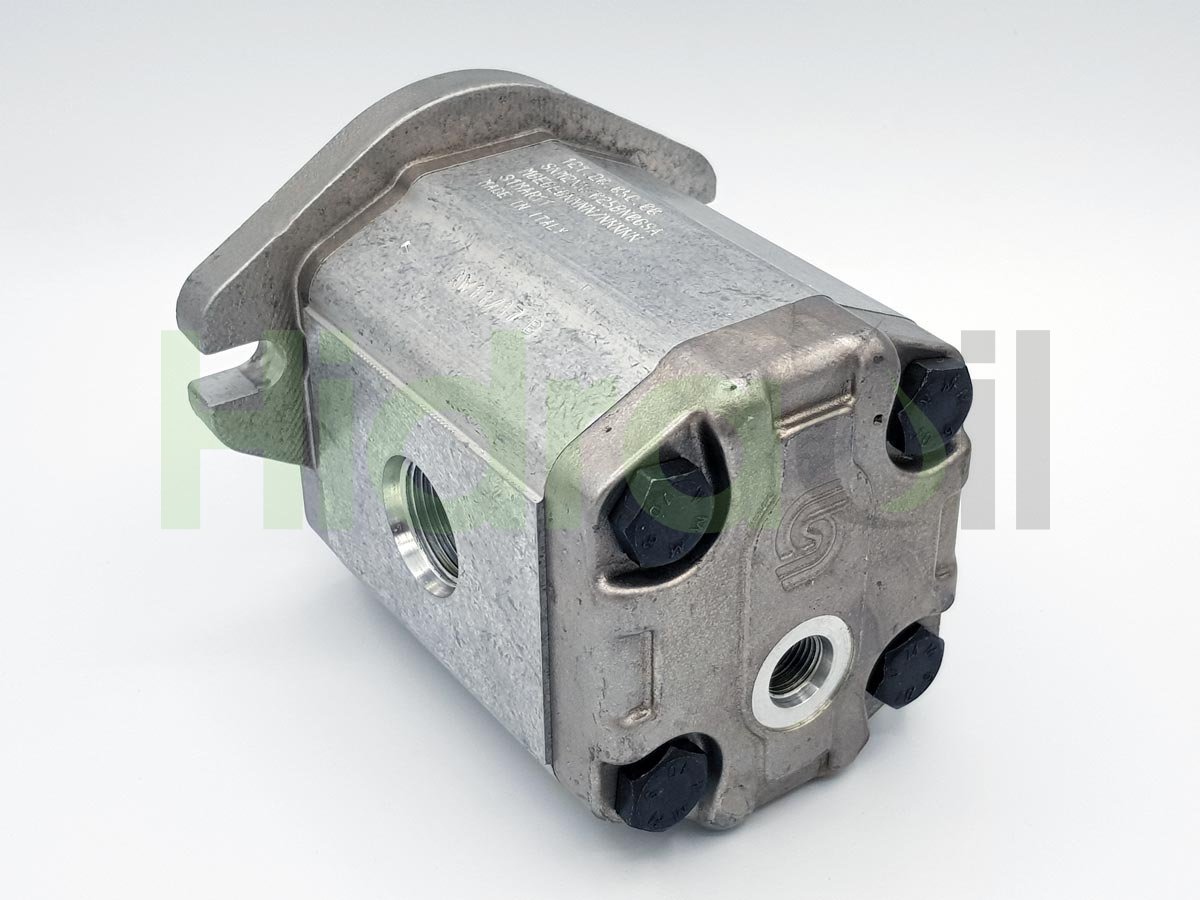

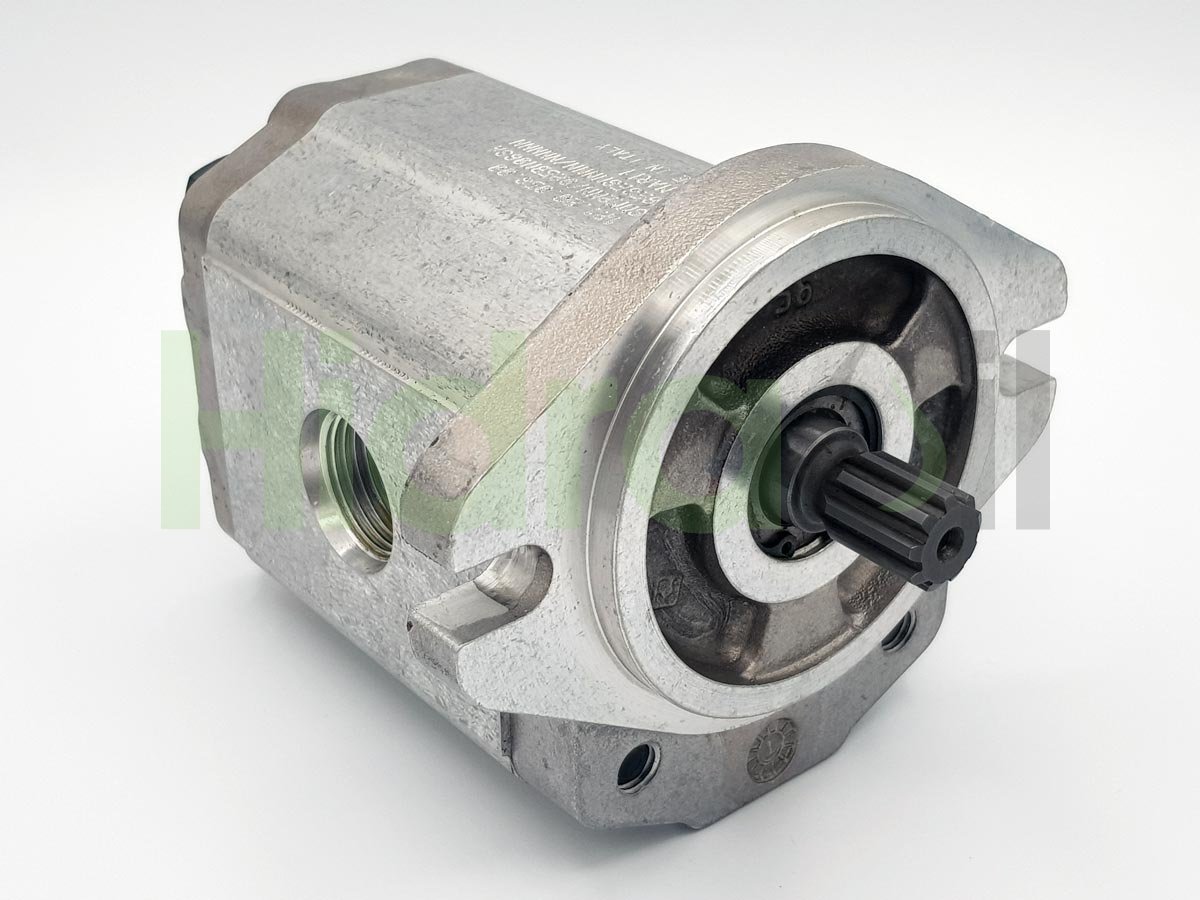

Hydraulic external gear motor bidireccional with aluminum case.
Displacement: 14.4 cm3/rev.
Max working Pressure: - bar.
Speed Range: - rpm.
Rotation: Reversible con drenaje externo por la tapa trasera. Bidirectional.
Shaft type: Splined SAE from 9 estrías.
Flange type: SAE-A.
Conexión from entrada/salida: Threaded 7/8-14UNF-2B.
Drain port: Roscado 9/16-18UNF-2B.
Displacement: 14.4 cm3/rev.
Max working Pressure: - bar.
Speed Range: - rpm.
Rotation: Reversible con drenaje externo por la tapa trasera. Bidirectional.
Shaft type: Splined SAE from 9 estrías.
Flange type: SAE-A.
Conexión from entrada/salida: Threaded 7/8-14UNF-2B.
Drain port: Roscado 9/16-18UNF-2B.
More information
- Category: Hydraulic Motors
- Category: External gear
- Category: Aluminum
- Category: Group 2
- Category: Sauer Danfoss - Turolla
- Category: SNM2 - SNM2NN - Bidirectional
- Category: Splined shaft Flange SAE SC06
- Last updated: 2020-12-31 07:45:55
