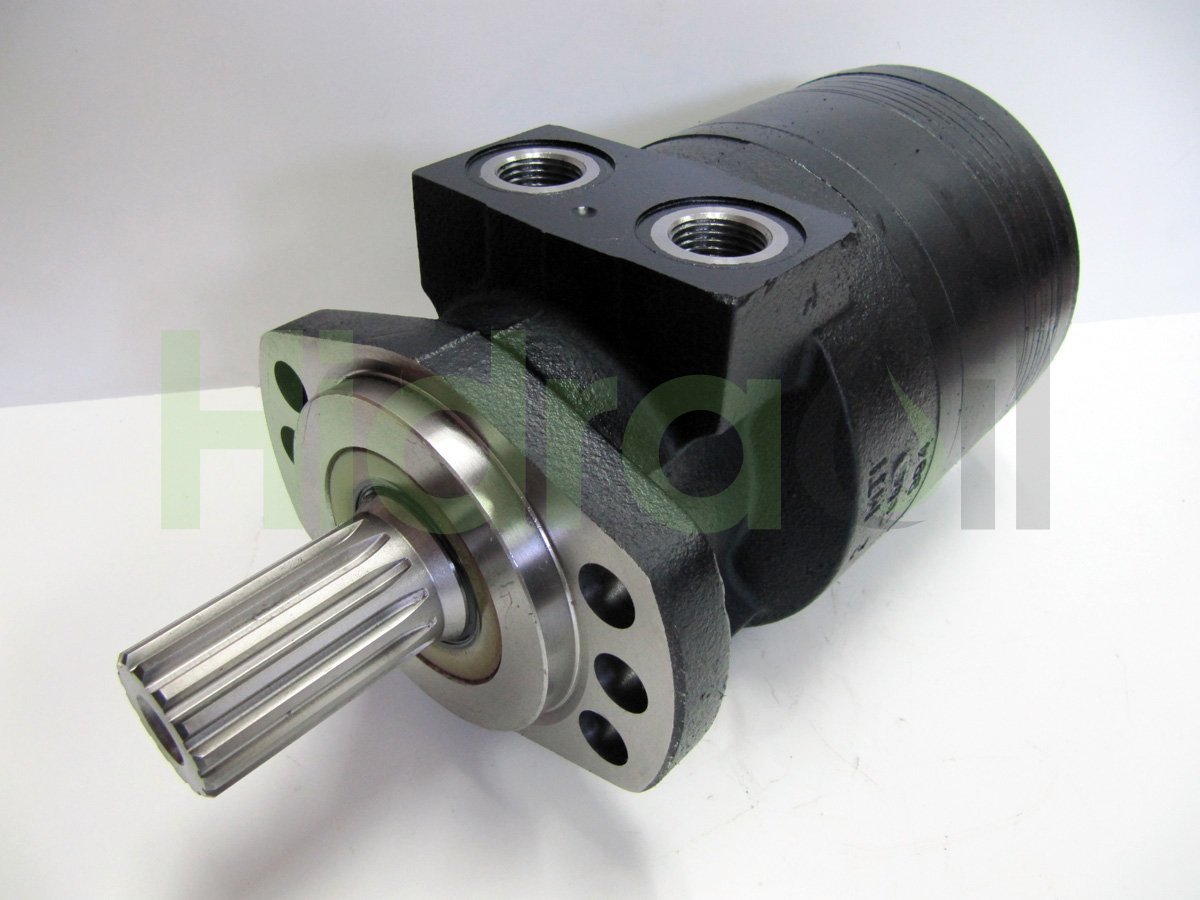

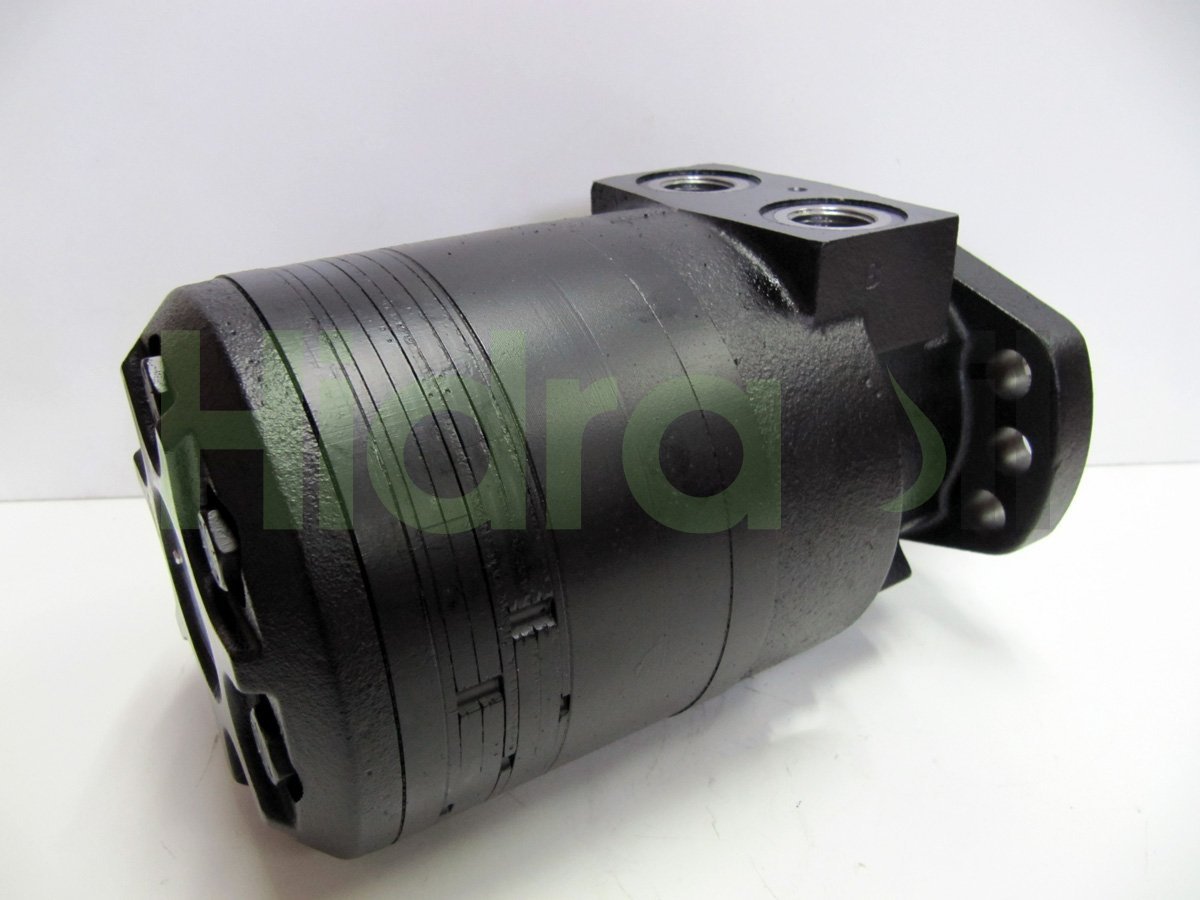

TG0335EW440AAAA Parker Torqmotor hydraulic orbital motor 335 cm3 splined shaft de z14
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101273
- Brand
- Parker
- Identification number
- TG0335EW440AAAA
- Other numbers
- TG 0335 EW440 AAAA TG0335EW440AAAB TG 0335 EW440 AAAB
- Approximate weight (kg)
- 15,9
Description
Hydraulic Orbital Motor for Low speed and High Torque applications from alta eficiencia volumétrica.
Shaft type: Splined from 14 dientes y diámetro exterior from 31.75 mm.
Flange type: Brida from 6 taladros con centraje from diámetro 82.5 mm y distancia from 106.4 mm entre centros from taladros (en diámetro).
Displacement: 337 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Rotation: Bidirectional.
Max speed: 225 rpm (intermittent operation: 290 rpm).
Max. Torque: 980 Nm (intermittent operation: 1350 Nm).
Max. Output Power: 30 kW.
Max. Pressure Drop: 200 bar (intermittent operation: 280 bar).
Maximum inlet pressure: 300 bar.
Max oil flow: 75 liters/minute (intermittent operation: 100 liters/minute).
Mínimo par from arranque en contínuo: 784 Nm.
Mínimo par from arranque intermitente: 1080 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Splined from 14 dientes y diámetro exterior from 31.75 mm.
Flange type: Brida from 6 taladros con centraje from diámetro 82.5 mm y distancia from 106.4 mm entre centros from taladros (en diámetro).
Displacement: 337 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Rotation: Bidirectional.
Max speed: 225 rpm (intermittent operation: 290 rpm).
Max. Torque: 980 Nm (intermittent operation: 1350 Nm).
Max. Output Power: 30 kW.
Max. Pressure Drop: 200 bar (intermittent operation: 280 bar).
Maximum inlet pressure: 300 bar.
Max oil flow: 75 liters/minute (intermittent operation: 100 liters/minute).
Mínimo par from arranque en contínuo: 784 Nm.
Mínimo par from arranque intermitente: 1080 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Parker
- Category: TG
- Category: Splined shaft z14
- Last updated: 2016-05-10 12:14:47
