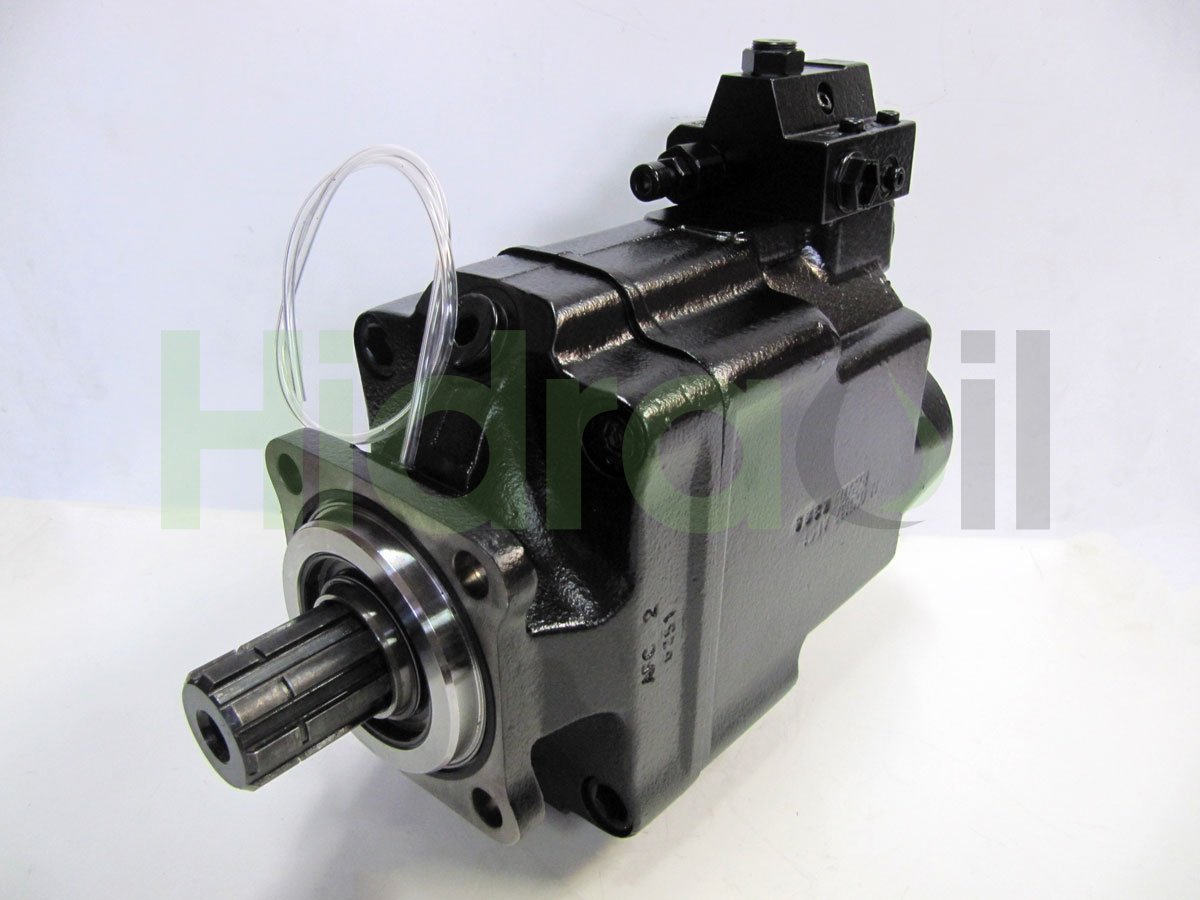

TXV60 0512505 Hydro Leduc hydraulic piston pump variable displacement 60 cm3 LS splined shaft z8 CCW rotation
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101514
- Brand
- Hydro Leduc
- Identification number
- TXV60 0512505
- Other numbers
- TXV 60 TXV600512505 load sensing
- Approximate weight (kg)
- 26,8
Description
Hydraulic axial piston variable displacement.
Type: Variable displacement for open circuit con control from cilindrada LS (sensor from carga).
Max displacement: 60 cm3/rev.
Flow @ 1500 rpm: 90 liters/minute.
Max working pressure: 400 bar.
Max Pressure intermittent: 420 bar (max 5%).
Velocidad from giro máxima: 2600 rpm.
Rotation: Counterclockwise rotation.
Control Type: Control from presión y caudal, sistema LS (Load Sensing).
Shaft type: Splined 8 tooth.
Flange type: Cuadrada con centraje from diámetro 80 mm y distancia entre centros from agujeros en cuadrado from 80 mm from lado.
Type: Variable displacement for open circuit con control from cilindrada LS (sensor from carga).
Max displacement: 60 cm3/rev.
Flow @ 1500 rpm: 90 liters/minute.
Max working pressure: 400 bar.
Max Pressure intermittent: 420 bar (max 5%).
Velocidad from giro máxima: 2600 rpm.
Rotation: Counterclockwise rotation.
Control Type: Control from presión y caudal, sistema LS (Load Sensing).
Shaft type: Splined 8 tooth.
Flange type: Cuadrada con centraje from diámetro 80 mm y distancia entre centros from agujeros en cuadrado from 80 mm from lado.
More information
- Category: Hydraulic Pumps
- Category: Piston
- Category: Axial
- Category: Variable displacement
- Category: Hydro Leduc
- Category: TXV
- Category: 60cc
