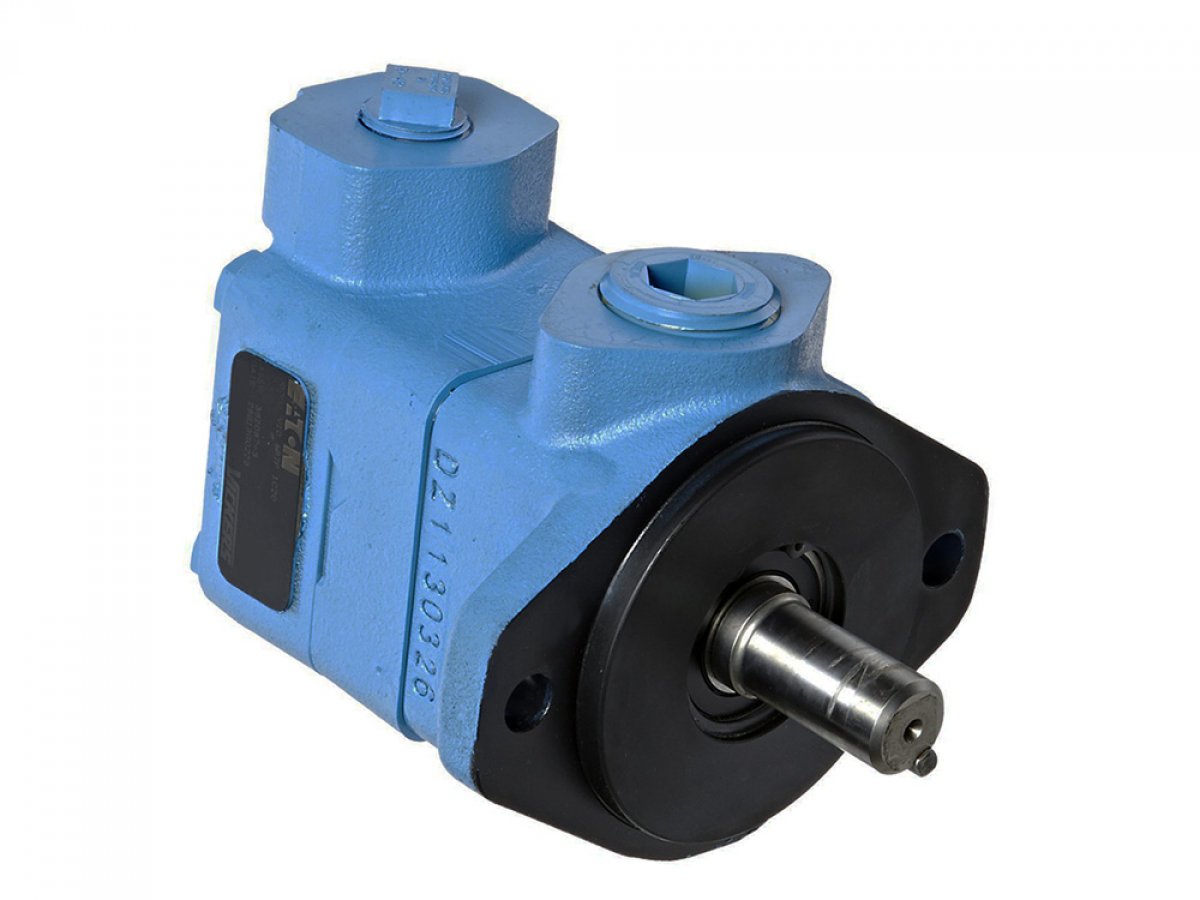

V10 1P1P 1C20 Vickers hydraulic vane pump 1 GPM straight shaft
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100223
- Brand
- Vickers
- Identification number
- V10 1P1P 1C20
- Other numbers
- V101P1P1C20
- Approximate weight (kg)
- 4,5
Description
Hydraulic vane pump Parker fixed displacement.
Flow @ 1200 rpm y 7 bar (100 psi): 3,8 liters/minute (1 USgpm)
Displacement: 3,3 cm3/rev
Max working pressure: 172 bar (2500 psi)
Max speed: 4800 rpm
Flange type: brida con 2 taladros from fijación (tipo SAE A)
Shaft type: eje cilíndrico from diámetro 19,05 mm con chaveta
Inlet port: 1" NPT
Outlet port: 1/2" NPT
Posición from la toma from salida: en línea con la from entrada
Rotation: CW rotation
Flow @ 1200 rpm y 7 bar (100 psi): 3,8 liters/minute (1 USgpm)
Displacement: 3,3 cm3/rev
Max working pressure: 172 bar (2500 psi)
Max speed: 4800 rpm
Flange type: brida con 2 taladros from fijación (tipo SAE A)
Shaft type: eje cilíndrico from diámetro 19,05 mm con chaveta
Inlet port: 1" NPT
Outlet port: 1/2" NPT
Posición from la toma from salida: en línea con la from entrada
Rotation: CW rotation
More information
- Category: Hydraulic Pumps
- Category: Vane
- Category: Fixed displacement
- Category: Vickers
- Category: V10
- Last updated: 2015-01-31 21:32:18
