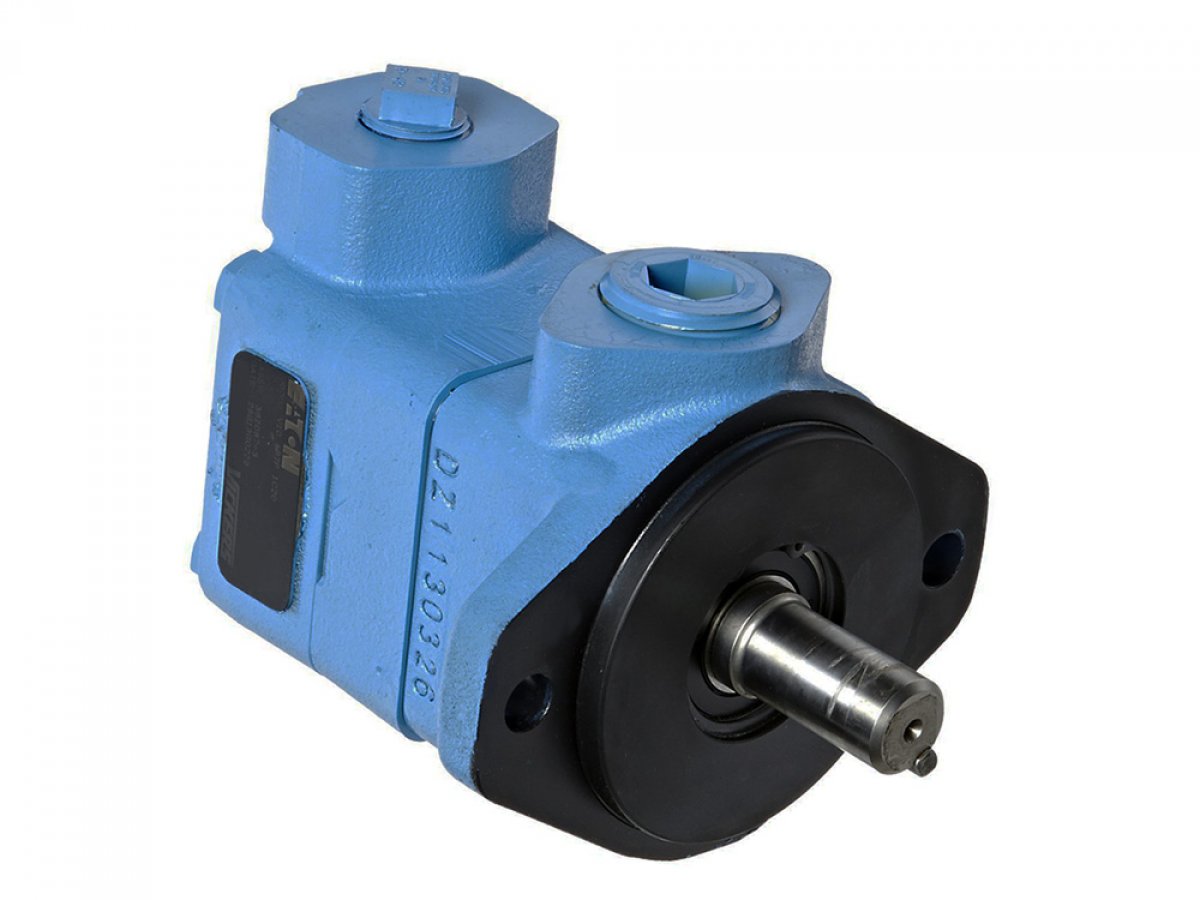

V10 1P2P 1C20 Vickers hydraulic vane pump 2 GPM straight shaft
Price and availability SHIPPING WORLDWIDEThe images are indicative and may differ from the final product delivered.
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100224
- Brand
- Vickers
- Identification number
- V10 1P2P 1C20
- Other numbers
- V101P2P1C20
- Approximate weight (kg)
- 5,0
Description
Flow at 1200 rpm and 7 bar (100 psi): 7,6 liters/minute (2 USgpm)
Displacement: 6,6 cm3/rev
Maximum working pressure: 172 bar (2500 psi)
Maximum speed: 4500 rpm
Flange type: Flange with 2 mounting holes (SAE A type).
Shaft type: Cylindrical shaft, 19,05 mm diameter, with a key.
Inlet port: 1" NPT
Outlet port: 1/2" NPT
Outlet port position: In line with the inlet port.
Rotation: CW rotation
More information
- Category: Hydraulic Pumps
- Category: Vane
- Category: Fixed displacement
- Category: Vickers
- Category: V10
- Last updated: 2015-01-31 21:07:42
