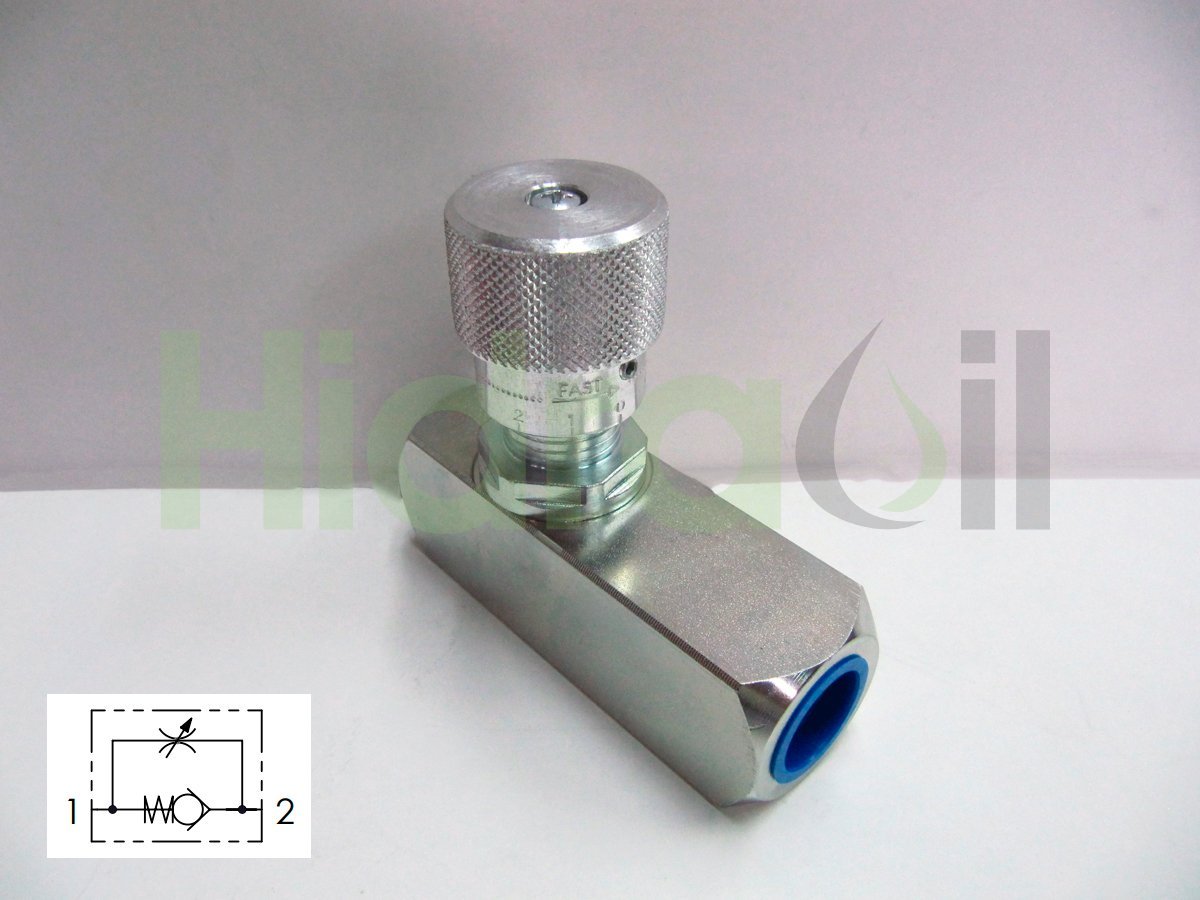

WRCU14G Hidraoil flow control valve unidirectional 2 ways in-line G1/4
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101601
- Brand
- Hidraoil
- Identification number
- WRCU14G
- Other numbers
- WRCU14G
- Approximate weight (kg)
- 0,4
Description
Regulador from caudal unidireccional en línea con pomo sin compensación from 2 ways.
Application: En un sentido (de 1 up to 2): Speed control in hydraulic cylinders or hydraulic motors. Flujo from caudal libre en el otro sentido (de 2 up to 1).
Oil flow máximo: 15 liters/minute.
Max working pressure: 350 bar.
Ports: Hembra roscada G1/4 Threaded Port (1/4" BSPP) (BSPP).
Temperatura del aceite: from -20ºC up to +80ºC.
Viscosidad del aceite: 15-250 mm2/s (cSt).

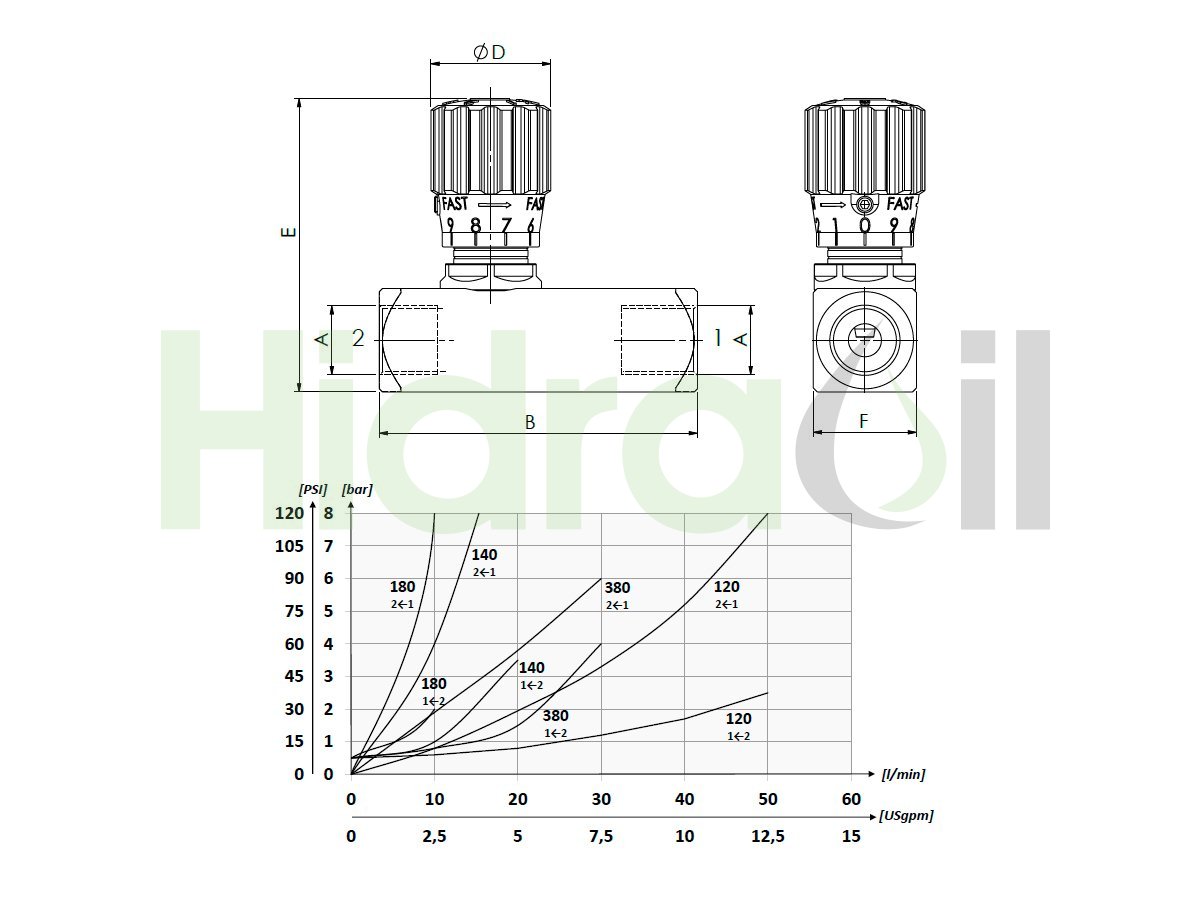

Cota A: G1/4 Threaded Port (1/4" BSPP) (BSPP).
Cota B: 66 mm.
Cota D: 30 mm.
Cota E: 71,5 mm.
Cota F: 25 mm.
*Las dimensiones son aproximadas.
*Pérdidas from carga, consultar curva 140.
Application: En un sentido (de 1 up to 2): Speed control in hydraulic cylinders or hydraulic motors. Flujo from caudal libre en el otro sentido (de 2 up to 1).
Oil flow máximo: 15 liters/minute.
Max working pressure: 350 bar.
Ports: Hembra roscada G1/4 Threaded Port (1/4" BSPP) (BSPP).
Temperatura del aceite: from -20ºC up to +80ºC.
Viscosidad del aceite: 15-250 mm2/s (cSt).
Cota A: G1/4 Threaded Port (1/4" BSPP) (BSPP).
Cota B: 66 mm.
Cota D: 30 mm.
Cota E: 71,5 mm.
Cota F: 25 mm.
*Las dimensiones son aproximadas.
*Pérdidas from carga, consultar curva 140.
