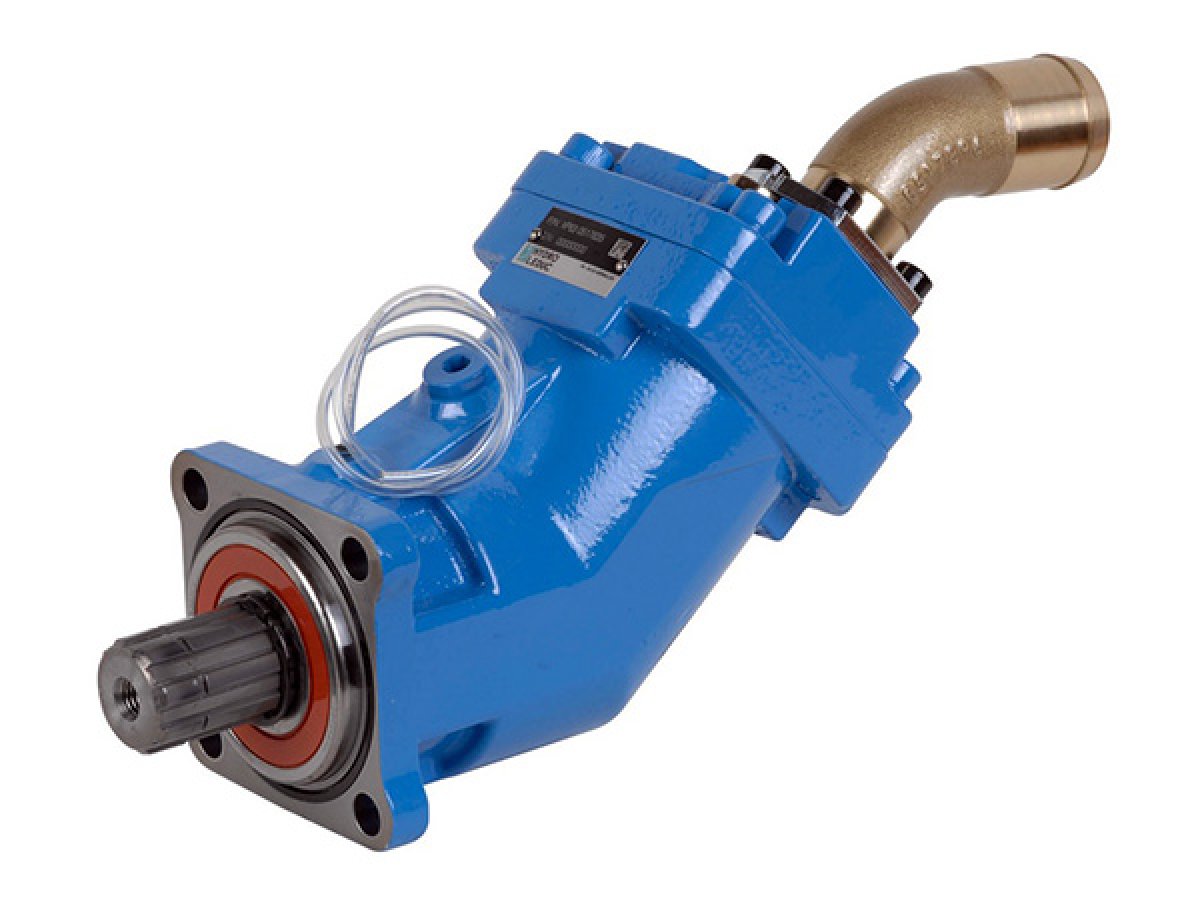

X110 0513640 Hydro Leduc hydraulic piston pump bent axis 108 cm3 splined shaft z8
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101090
- Brand
- Hydro Leduc
- Identification number
- X110 0513640
- Approximate weight (kg)
- 16,0
Description
Hydraulic bent-axis (banana-type) Piston pump for mobile applications with high demands.
Type: Fixed displacement for open circuit.
Displacement: 108.3 cm3/rev.
Rotation: La bomba se suministra CW rotation pero puede cambiarse up to izquierdas fácilmente mediante un accesorio suministrado con la bomba.
Flange type: DIN flange 4 holes (ISO 7653-D).
Shaft type: Splined z8 with external diameter 34.9 mm (DIN 5462 / ISO 14 type B8x32x36).
Max working Pressure: 350 bar.
Max speed: 1750 rpm.
Flow @ 500 rpm: 54.1 liters/minute.
Flow @ 1000 rpm: 108.3 liters/minute.
Flow @ 1500 rpm: 162.4 liters/minute.
Type: Fixed displacement for open circuit.
Displacement: 108.3 cm3/rev.
Rotation: La bomba se suministra CW rotation pero puede cambiarse up to izquierdas fácilmente mediante un accesorio suministrado con la bomba.
Flange type: DIN flange 4 holes (ISO 7653-D).
Shaft type: Splined z8 with external diameter 34.9 mm (DIN 5462 / ISO 14 type B8x32x36).
Max working Pressure: 350 bar.
Max speed: 1750 rpm.
Flow @ 500 rpm: 54.1 liters/minute.
Flow @ 1000 rpm: 108.3 liters/minute.
Flow @ 1500 rpm: 162.4 liters/minute.
More information
- Category: Hydraulic Pumps
- Category: Piston
- Category: Axial
- Category: Fixed displacement
- Category: Bent-Axis
- Category: Hydro Leduc
- Category: Series X
- Last updated: 2016-12-27 14:20:11
