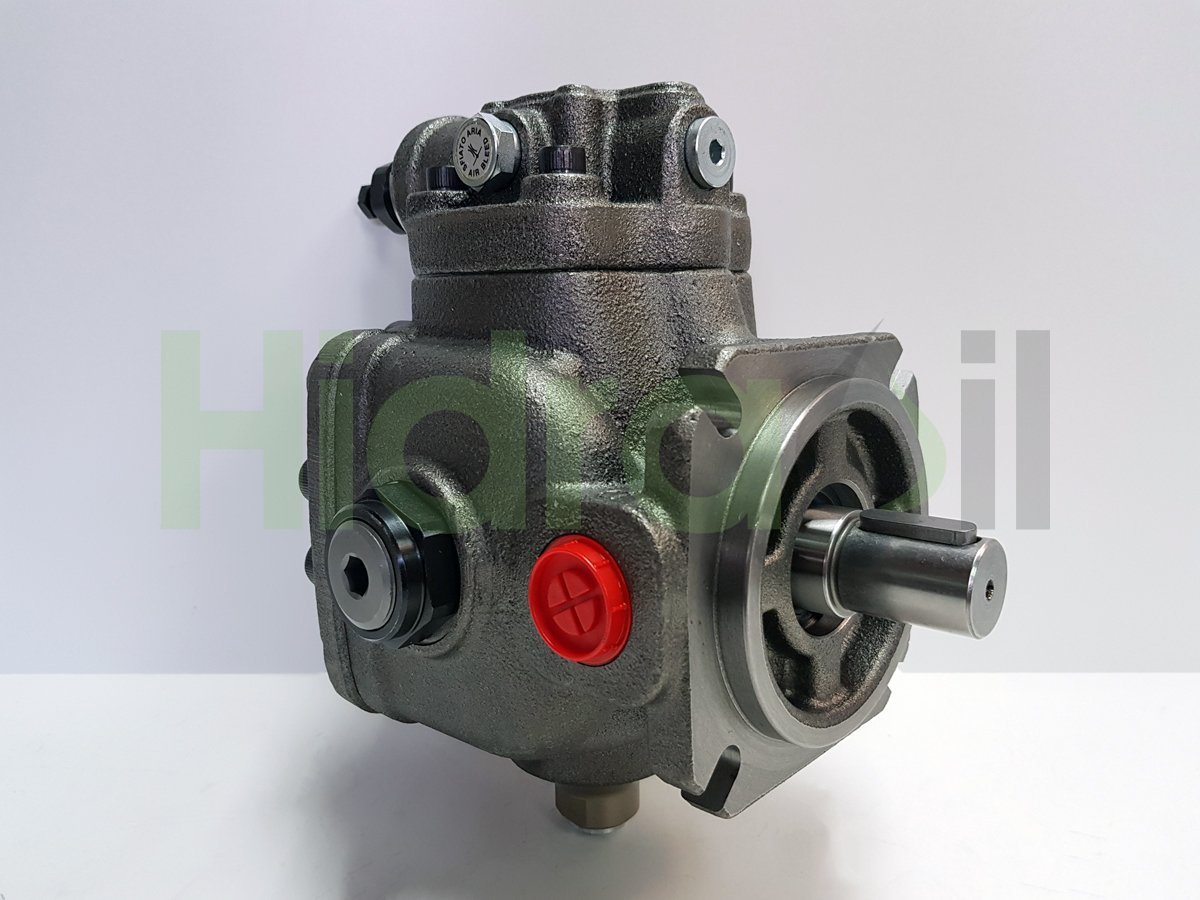

01-PHP05-16-F-H-R-M Berarma hydraulic variable vane pump 16 cm3 with single stage pressure compensator 250 bar
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX102595
- Brand
- Berarma
- Identification number
- 01-PHP05-16-F-H-R-M
- Other numbers
- 01 PHP 05-16 FHRM 01PHP05-16-FHRM 01PHP0516FHRM
- Approximate weight (kg)
- 16,5
Description
Hydraulic Vane pump variable displacement with hydraulic pressure compensator for single stage.

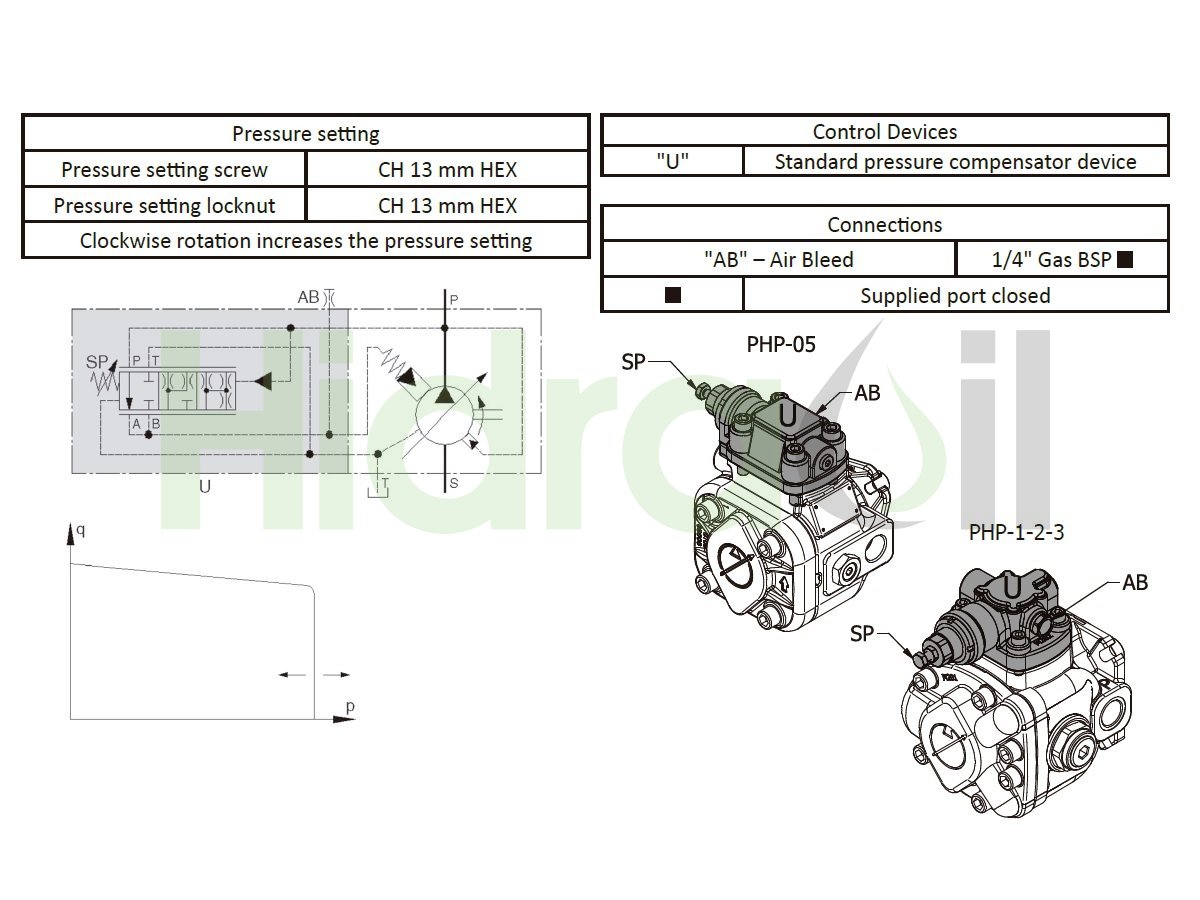

Control Type: Its integrated control unit allows adjusting the displacement of the pump (up to the zero flow condition) according to the flow demanded by the hydraulic system, while maintaining constant pressure equal to the value set on the control unit.
Max displacement: 16 cm3/rev. It has a regulator that allows reducing the actual maximum displacement to a value of 3.3 cm3/rev.
Flow @ 1500 rpm: 24 liters/minute.
Max working Pressure: 250 bar.
Speed range: from 800 up to 1800 rpm.
Pressure setting range: From 20 up to 250 bar.
Rotation: Clockwise rotation (looking at the shaft end of the pump).

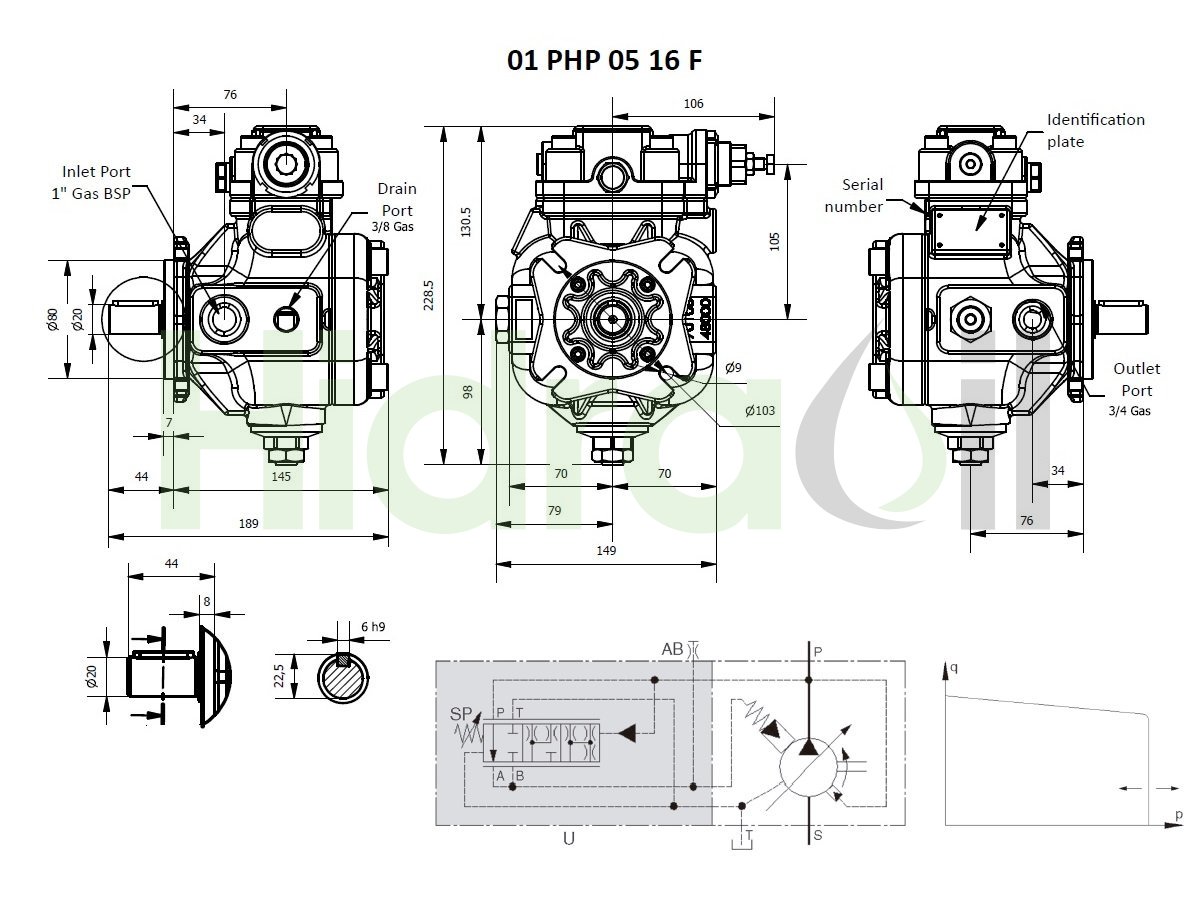

Shaft type: Parallel diameter 20 mm con chaveta from ancho 6 mm.
Flange type: Tipo ISO: centraje from diámetro 80 mm.
Inlet port: 1" GAS.
Outlet port: 3/4" GAS.
Drain port: 3/8" GAS (localizada en el lateral from la bomba, al lado del puerto from entrada from aceite).
Notes: This pump version is not prepared for connecting a rear pump. To do so; you will need version -A..
Control Type: Its integrated control unit allows adjusting the displacement of the pump (up to the zero flow condition) according to the flow demanded by the hydraulic system, while maintaining constant pressure equal to the value set on the control unit.
Max displacement: 16 cm3/rev. It has a regulator that allows reducing the actual maximum displacement to a value of 3.3 cm3/rev.
Flow @ 1500 rpm: 24 liters/minute.
Max working Pressure: 250 bar.
Speed range: from 800 up to 1800 rpm.
Pressure setting range: From 20 up to 250 bar.
Rotation: Clockwise rotation (looking at the shaft end of the pump).
Shaft type: Parallel diameter 20 mm con chaveta from ancho 6 mm.
Flange type: Tipo ISO: centraje from diámetro 80 mm.
Inlet port: 1" GAS.
Outlet port: 3/4" GAS.
Drain port: 3/8" GAS (localizada en el lateral from la bomba, al lado del puerto from entrada from aceite).
Notes: This pump version is not prepared for connecting a rear pump. To do so; you will need version -A..
More information
- Category: Hydraulic Pumps
- Category: Vane
- Category: Variable displacement
- Category: Berarma
- Category: PHP
- Category: Standard Control Pressure
- Category: PHP05
- Category: Single pumps
- Last updated: 2020-01-24 00:59:45
