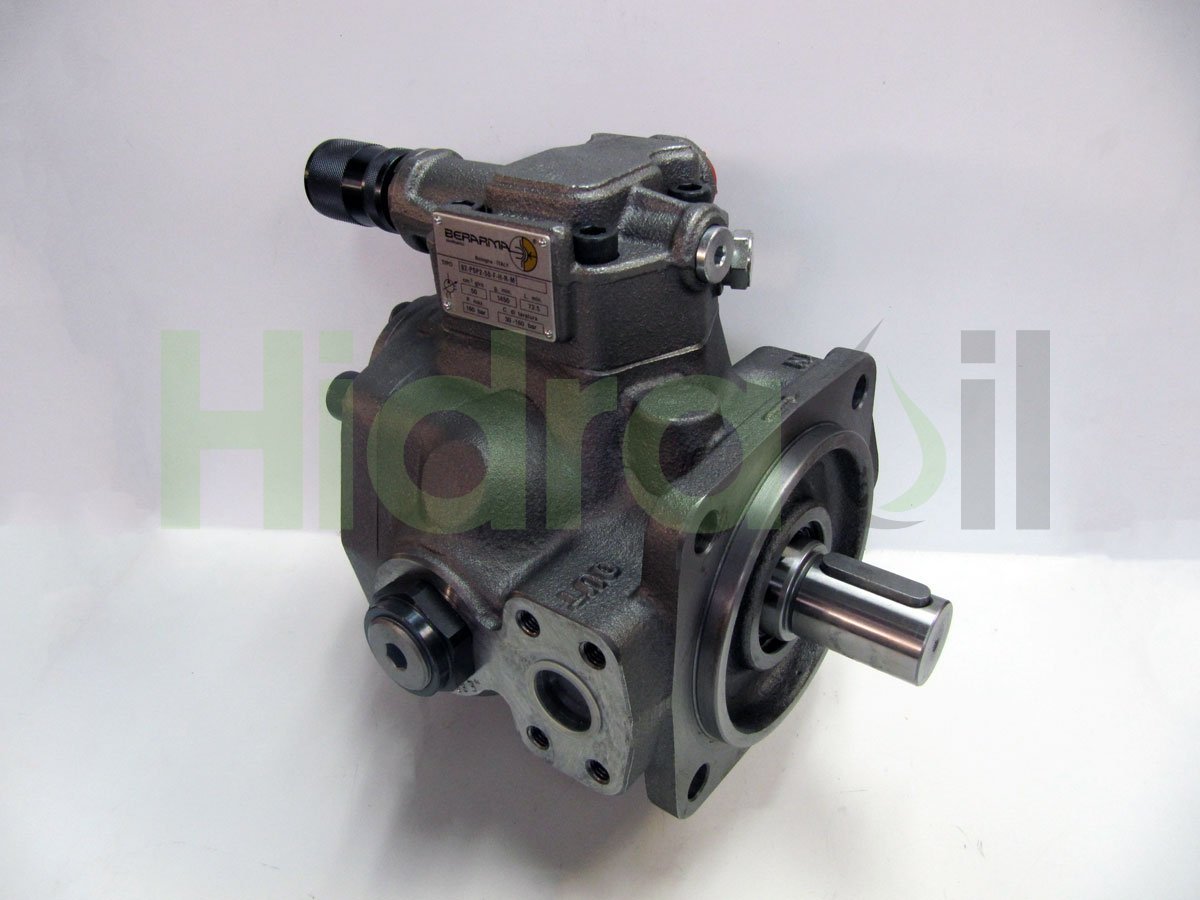

02-PSP1-16-F-H-R-M Berarma hydraulic vane pump variable displacement 16 cm3 hydraulic pressure control
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101392
- Brand
- Berarma
- Identification number
- 02-PSP1-16-F-H-R-M
- Other numbers
- 02PSP1-16-FHRM 02 PSP1 16 F H R M 02PSP116FHRM
- Approximate weight (kg)
- 13,0
Description
Hydraulic variable displacement vane pump with hydraulic pressure regulating device.
Displacement: 16 cm3/rev.
Flow @ 1450 rpm: 23.2 liters/minute.
Max working Pressure: 160 bar.
Max speed: 1800 rpm.
Pressure setting range: From 30 up to 160 bar.
Rotation: Clockwise rotation.
Shaft type: Parallel diameter 25 mm.
Flange type: ISO type with centering diameter 100 mm.
Inlet port: G1.
Outlet port: G3/4.
Drain port: G3/8.
Displacement: 16 cm3/rev.
Flow @ 1450 rpm: 23.2 liters/minute.
Max working Pressure: 160 bar.
Max speed: 1800 rpm.
Pressure setting range: From 30 up to 160 bar.
Rotation: Clockwise rotation.
Shaft type: Parallel diameter 25 mm.
Flange type: ISO type with centering diameter 100 mm.
Inlet port: G1.
Outlet port: G3/4.
Drain port: G3/8.
More information
- Category: Hydraulic Pumps
- Category: Vane
- Category: Variable displacement
- Category: Berarma
- Category: PSP
- Last updated: 2016-02-06 00:33:07
