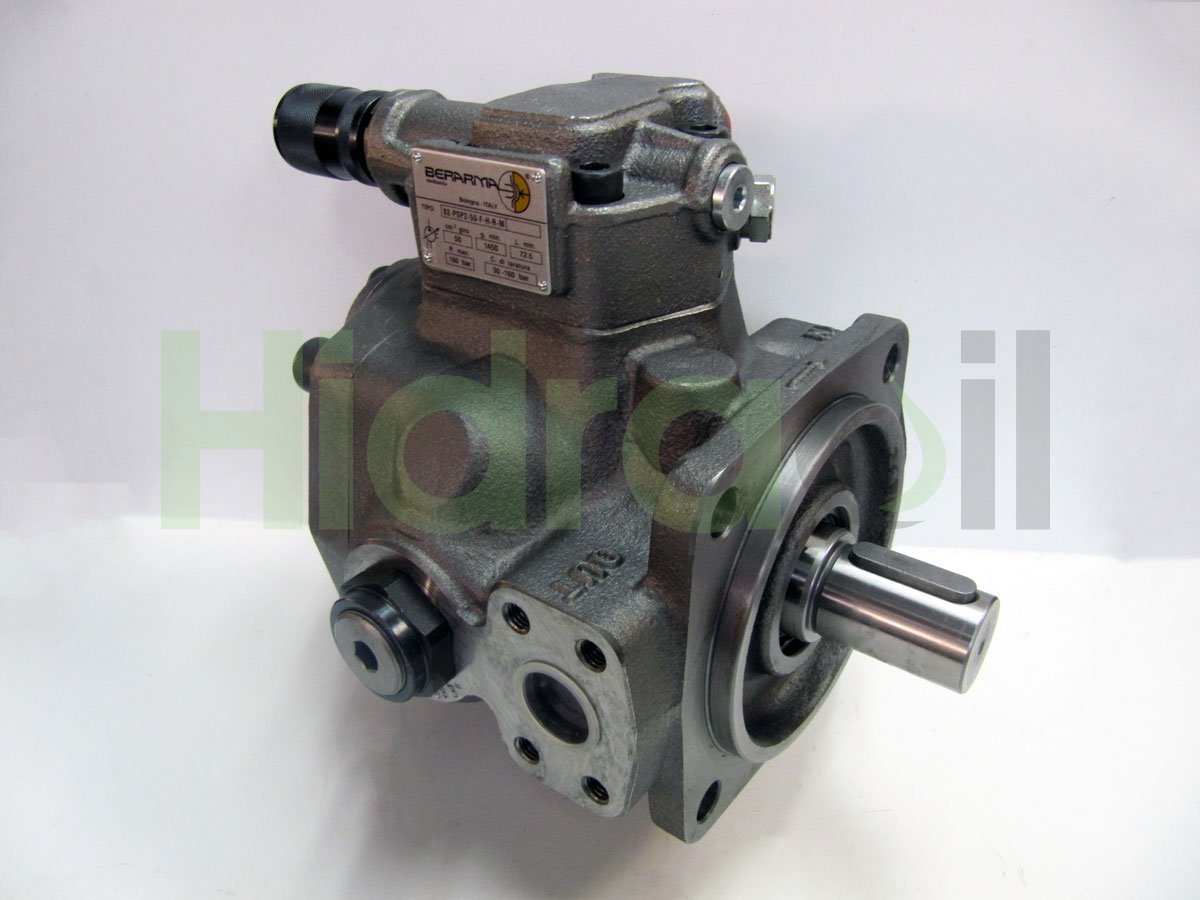

02-PSP3-63-F-H-R-M Berarma hydraulic vane pump variable displacement 63 cm3 hydraulic pressure control
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101398
- Brand
- Berarma
- Identification number
- 02-PSP3-63-F-H-R-M
- Other numbers
- 02PSP3-63-FHRM 02 PSP3 63 F H R M 02PSP363FHRM
- Approximate weight (kg)
- 45,0
Description
Hydraulic variable displacement vane pump with control from presión hidráulico pilotado.
Displacement: 63 cm3/rev.
Flow @ 1450 rpm: 91,3 liters/minute.
Max working Pressure: 150 bar.
Max speed: 1800 rpm.
Pressure setting range: From 30 up to 150 bar.
Rotation: Clockwise rotation.
Shaft type: Parallel diameter 40 mm.
Flange type: ISO type with centering diameter 160 mm.
Inlet port: Para brida SAE 2".
Outlet port: Para brida SAE 1 1/4".
Drain port: 3/4" GAS.
Displacement: 63 cm3/rev.
Flow @ 1450 rpm: 91,3 liters/minute.
Max working Pressure: 150 bar.
Max speed: 1800 rpm.
Pressure setting range: From 30 up to 150 bar.
Rotation: Clockwise rotation.
Shaft type: Parallel diameter 40 mm.
Flange type: ISO type with centering diameter 160 mm.
Inlet port: Para brida SAE 2".
Outlet port: Para brida SAE 1 1/4".
Drain port: 3/4" GAS.
More information
- Category: Hydraulic Pumps
- Category: Vane
- Category: Variable displacement
- Category: Berarma
- Category: PSP
- Last updated: 2016-02-07 00:22:10
