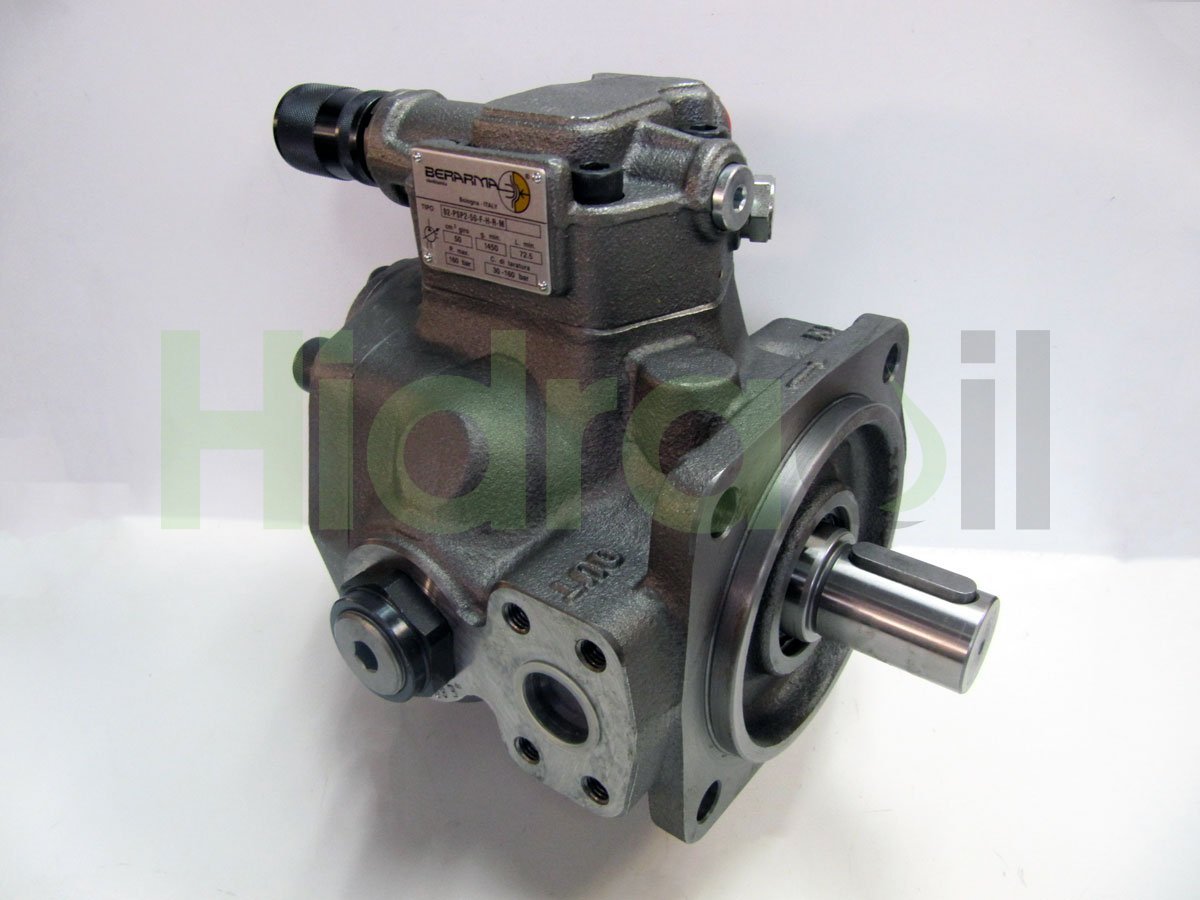

02-PSP3-100-F-H-R-M Berarma hydraulic vane pump variable displacement 100 cm3 hydraulic pressure control

View replacement products SHIPPING WORLDWIDE
REQUEST PRICE & AVAILABILITY

Availability: Product discontinued

Replaced by

01-PHP3-100-F-H-R-M-A Berarma hydraulic variable vane pump 100 cm3 with single stage pressure compensator 250 bar thru-drive shaft GFX102650 · 01-PHP3-100-F-H-R-M-A 01-PHP3-100-F-H-R-M-A Berarma hydraulic variable vane pump 100 cm3 with single stage pressure compensator 250 bar thru-drive shaft 01-PHP3-100-F-H-R-M Berarma hydraulic variable vane pump 100 cm3 with single stage pressure compensator 250 bar GFX102603 · 01-PHP3-100-F-H-R-M 01-PHP3-100-F-H-R-M Berarma hydraulic variable vane pump 100 cm3 with single stage pressure compensator 250 bar
View replacement products

Payment and shipping methods

Visa · Mastercard · PayPal · Stripe · Google Pay

DHL · FedEx · UPS

Product identification

Hidraoil Part number
GFX101400
Brand
Berarma
Identification number
02-PSP3-100-F-H-R-M
Other numbers
02PSP3-100-FHRM 02 PSP3 100 F H R M 02PSP3100FHRM
Approximate weight (kg)
45,0

Description

Variable displacement vane pump with pilot-operated hydraulic pressure control.
Displacement: 100 cm3/rev.
Flow @ 1450 rpm: 145 liters/minute.
Maximum working pressure: 150 bar.
Maximum speed: 1800 rpm.
Pressure setting range: From 30 to 150 bar.
Rotation: Clockwise.
Shaft type: Parallel shaft, 40 mm diameter.
Flange type: ISO type with a centering diameter of 160 mm.
Inlet port: For 2" SAE flange.
Outlet port: For 1 1/4" SAE flange.
Drain port: 3/4" GAS.
