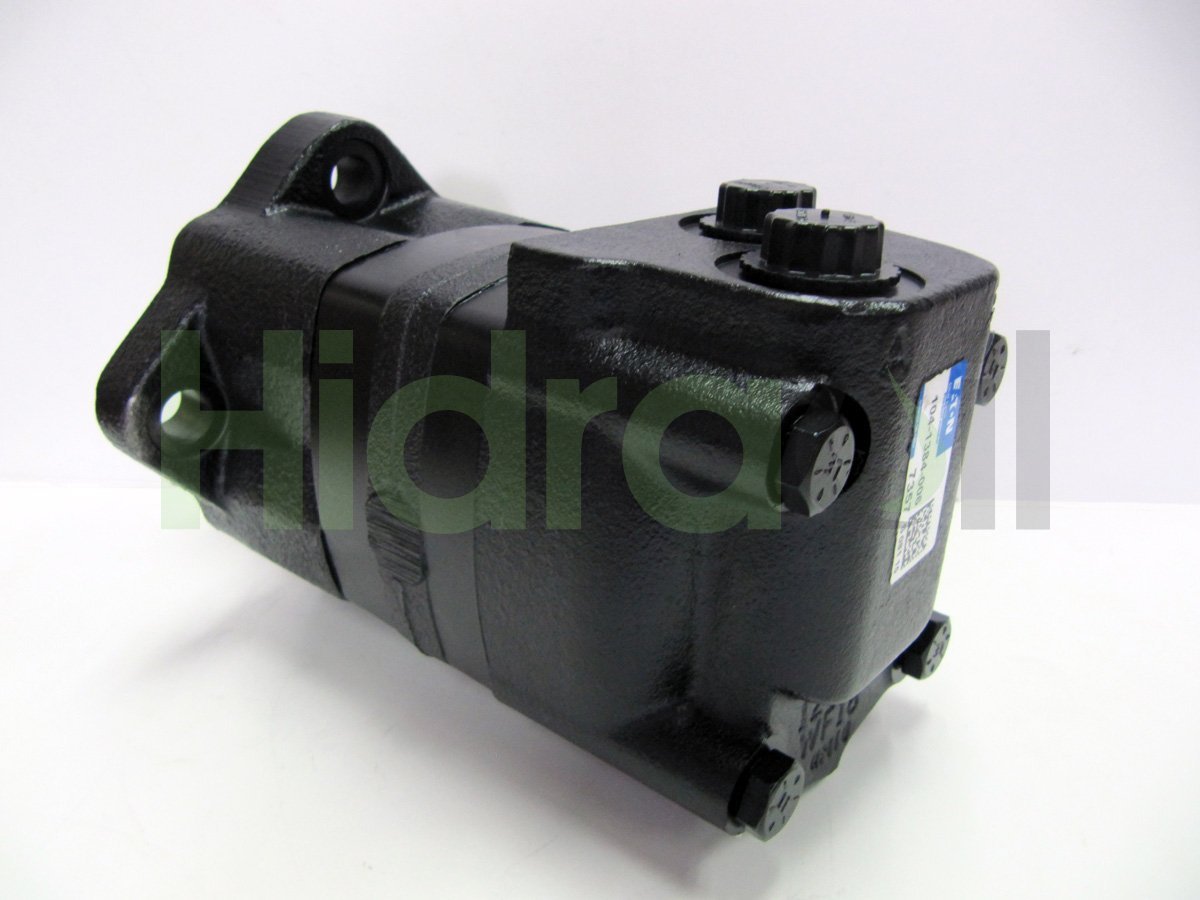

104-1384-006 Char-Lynn Eaton hydraulic orbital motor 80 cc/rec straight shaft 32 mm
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100242
- Brand
- Char-Lynn Eaton
- Identification number
- 104-1384-006
- Other numbers
- 104-1384-004 104-1384-005 motor hidráulico charlin charlyn charlynn
- Approximate weight (kg)
- 9,3
Description
Hydraulic orbital motor for high torque and low/medium speed applications. Robust and compact design. High starting torque and High Efficiency motors.

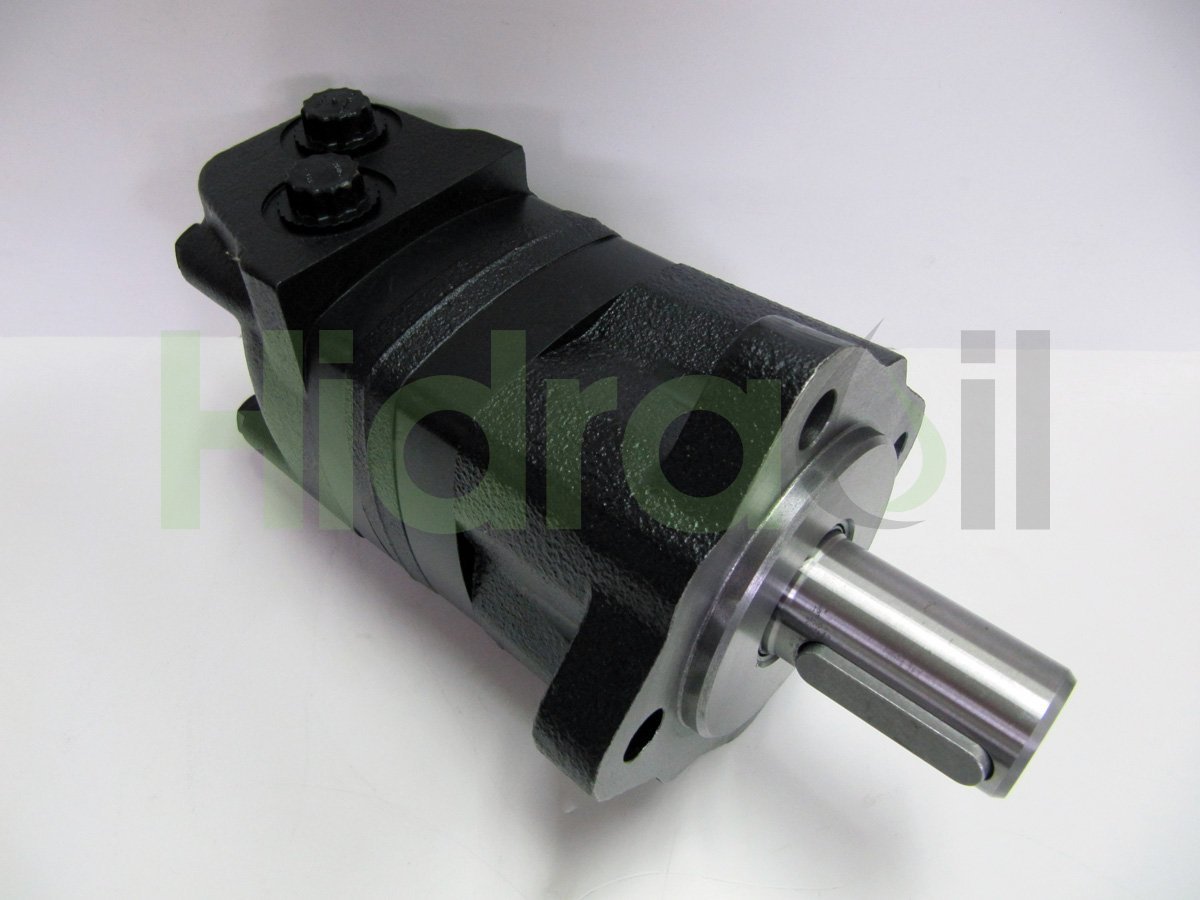

Shaft type: Straight shaft 32 mm Diameter and parallel key Width 10 mmm
Flange type: Estándar from 4 taladros con centraje from diámetro 82,5 mm y distancia from 106,4 mm entre centros from taladros en diagonal
Displacement: 80 cm3/rev
Side Ports: Threaded G1/2 ports (1/2" BSPP)
Drain Port: 1/4" GAS
Max speed: 908 rpm (intermittent operation: 908 rpm)
Max. Torque: 235 Nm (intermittent operation: 345 Nm)
Max. Pressure Drop: 205 bar (intermittent operation: 310 bar; peak load:310 bar)
Max oil flow: 75 liters/minute (intermittent operation: 75 liters/minute)
Shaft type: Straight shaft 32 mm Diameter and parallel key Width 10 mmm
Flange type: Estándar from 4 taladros con centraje from diámetro 82,5 mm y distancia from 106,4 mm entre centros from taladros en diagonal
Displacement: 80 cm3/rev
Side Ports: Threaded G1/2 ports (1/2" BSPP)
Drain Port: 1/4" GAS
Max speed: 908 rpm (intermittent operation: 908 rpm)
Max. Torque: 235 Nm (intermittent operation: 345 Nm)
Max. Pressure Drop: 205 bar (intermittent operation: 310 bar; peak load:310 bar)
Max oil flow: 75 liters/minute (intermittent operation: 75 liters/minute)
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Char-Lynn Eaton
- Category: 2000 Series
- Category: Shaft D32 A4 GAS
- Last updated: 2015-10-18 21:46:05
