Product identification

---

• Hidraoil Part number: GFX100248
• Brand of product: Char-Lynn Eaton
• Part number: 104-1391-006
• Other numbers: 104-1391-004 104-1391-005 1041391004 1041391005 1041391006 motor hidráulico charlin charlyn charlynn
• Approximate weight (kg): 11,8

Description

---

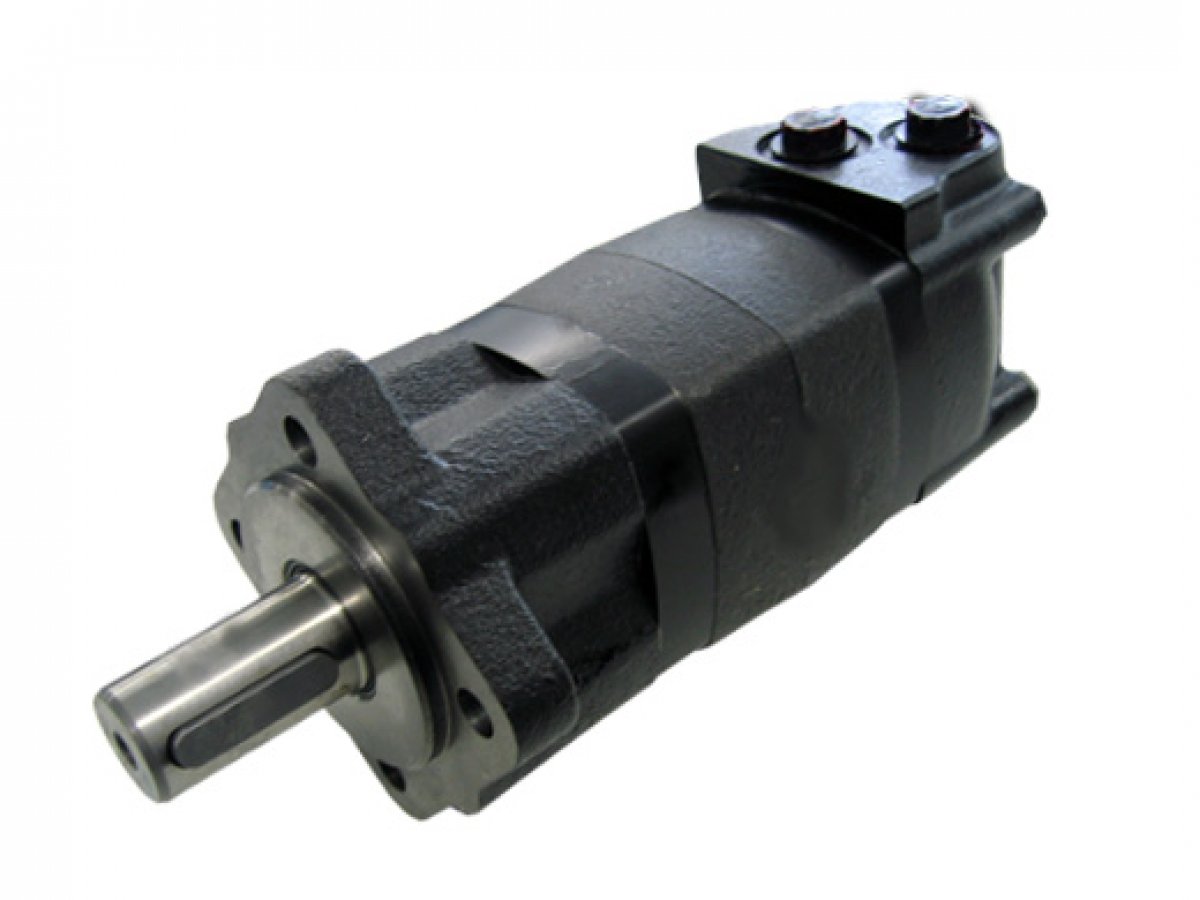

• Hydraulic orbital motor for high torque and low/medium speed applications. Robust and compact design. High starting torque and High Efficiency motors.
  Shaft type: Straight shaft 32 mm Diameter and parallel key Width 10 mmm
  Flange type: Estándar from 4 taladros con centraje from diámetro 82,5 mm y distancia from 106,4 mm entre centros from taladros en diagonal
  Displacement: 395 cm3/rev
  Side Ports: Threaded G1/2 ports (1/2" BSPP)
  Drain Port: 1/4" GAS
  Max speed: 191 rpm (intermittent operation: 287 rpm)
  Max. Torque: 775 Nm (intermittent operation: 925 Nm)
  Max. Pressure Drop: 155 bar (intermittent operation: 170 bar; peak load:205 bar)
  Max oil flow: 75 liters/minute (intermittent operation: 115 liters/minute)
