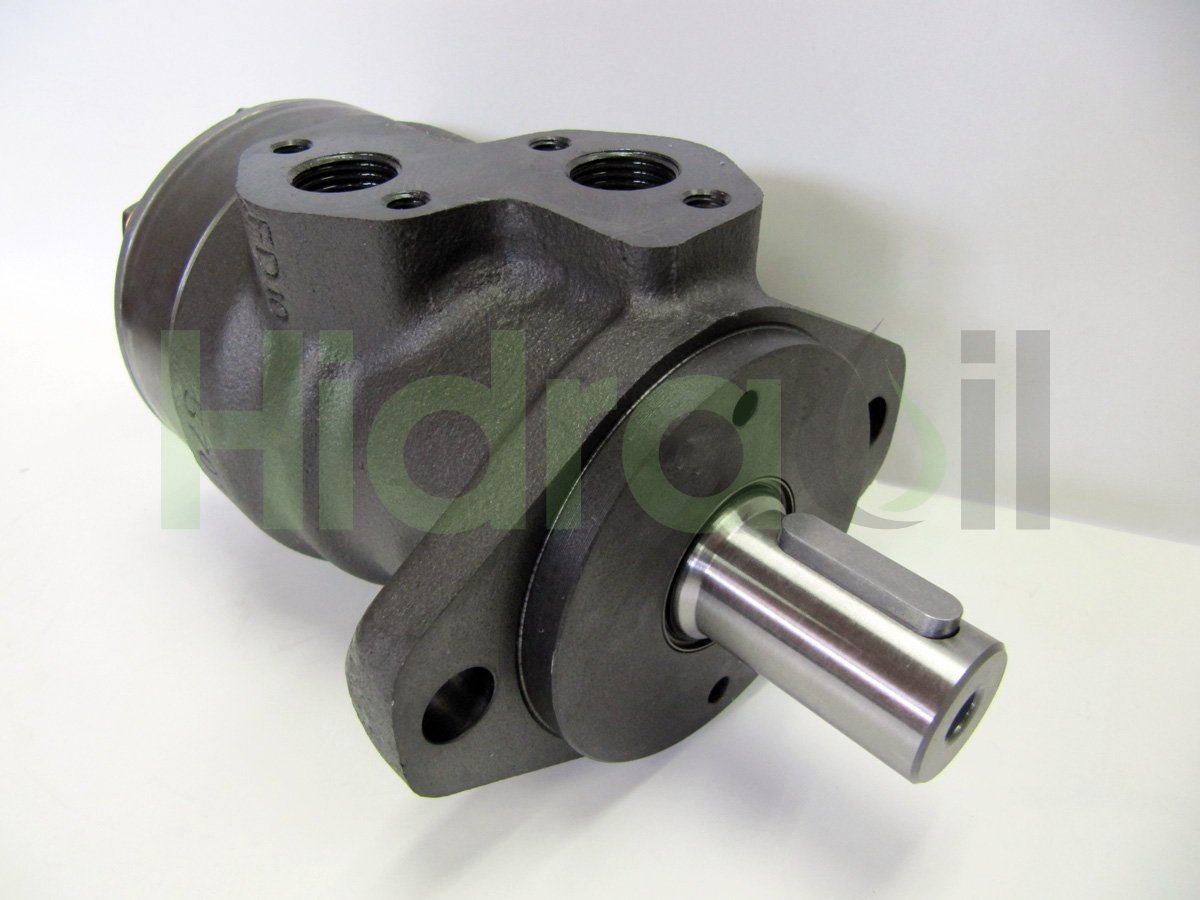

151-0403 OMR 125 Sauer Danfoss hydraulic orbital motor 125 cm3 straight shaft 25,4 mm without drain port
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101339
- Brand
- Sauer Danfoss
- Identification number
- 151-0403 OMR 125
- Other numbers
- 1510403 OMR125
- Approximate weight (kg)
- 7,2
Description
Hydraulic orbital motor for high torque applications. Geroller type.
Shaft type: Parallel 25.4 mm diameter with 6.4 mm key width.
Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes..
Gearwheel set case width (L1): 21,8 mm.
Displacement: 125,7 cm3/rev.
Side Ports: Threaded 1/2" GAS.
Drain Port: Without Drain port.
Max speed: 475 rpm (intermittent operation: 600 rpm).
Max. Torque: 300 Nm (intermittent operation: 340 Nm; peak load:370 Nm).
Max. Output Power: 12,5 kW (intermittent operation: 14,5 kW).
Max. Pressure Drop: 175 bar (intermittent operation: 200 bar; peak load:225 bar).
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute).
Max. starting pressure with unloaded shaft: 9 bar.
Min. starting torque at max. press. drop cont.: 250 Nm.
Min. starting torque at max. press. drop int.: 280 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Parallel 25.4 mm diameter with 6.4 mm key width.
Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes..
Gearwheel set case width (L1): 21,8 mm.
Displacement: 125,7 cm3/rev.
Side Ports: Threaded 1/2" GAS.
Drain Port: Without Drain port.
Max speed: 475 rpm (intermittent operation: 600 rpm).
Max. Torque: 300 Nm (intermittent operation: 340 Nm; peak load:370 Nm).
Max. Output Power: 12,5 kW (intermittent operation: 14,5 kW).
Max. Pressure Drop: 175 bar (intermittent operation: 200 bar; peak load:225 bar).
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute).
Max. starting pressure with unloaded shaft: 9 bar.
Min. starting torque at max. press. drop cont.: 250 Nm.
Min. starting torque at max. press. drop int.: 280 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMR
- Category: Straight shaft 25.4 mm
- Category: Without case drain
- Last updated: 2015-12-11 16:47:13
