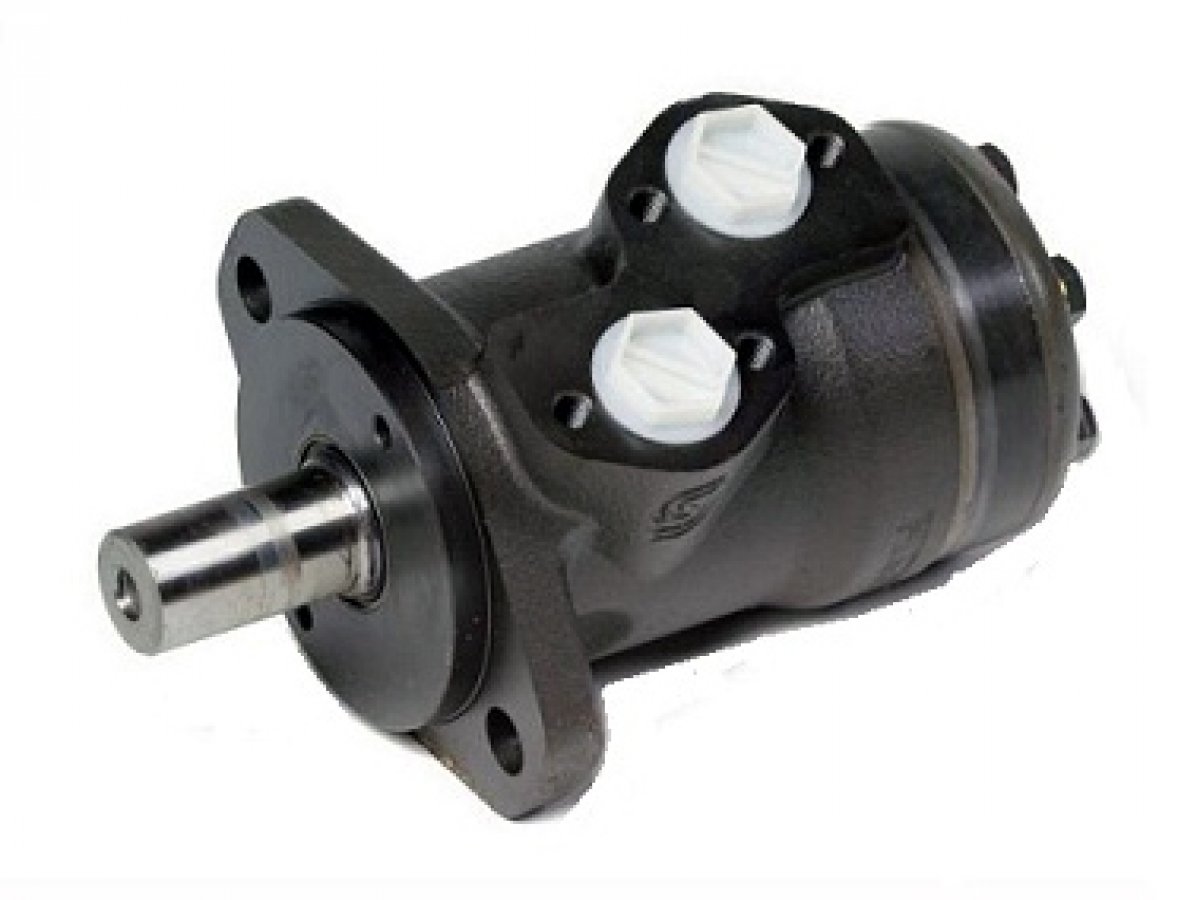

151-0611 OMP 80 Sauer Danfoss hydraulic orbital motor 80 cm3 straight shaft
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100174
- Brand
- Sauer Danfoss
- Identification number
- 151-0611 OMP 80
- Other numbers
- 1510611 OMP80 151-0029 1510029 151 0029
- Approximate weight (kg)
- 5,7
Description
Hydraulic orbital motor for high torque and low/medium speed applications.
Shaft type: Straight shaft 25 mm Diameter and 8 mm Width parallel key.
Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes.
Displacement: 77,8 cm3
Side Ports: Threaded G1/2 ports (1/2" BSPP)
Drain Port: 1/4" GAS
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Straight shaft 25 mm Diameter and 8 mm Width parallel key.
Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes.
Displacement: 77,8 cm3
Side Ports: Threaded G1/2 ports (1/2" BSPP)
Drain Port: 1/4" GAS
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMP
- Category: Straight shaft 25 mm
- Category: With case drain
- Last updated: 2016-12-19 09:44:11
