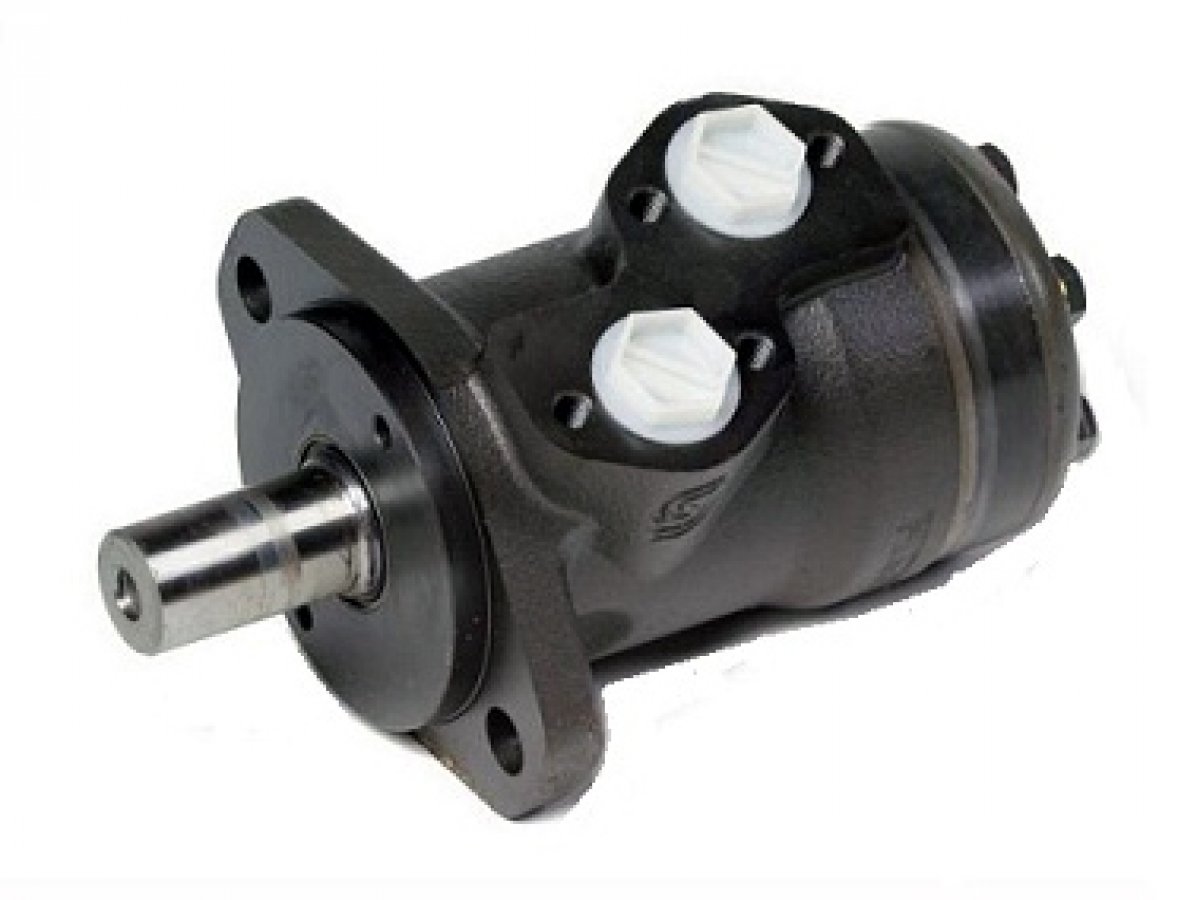

151-0641 OMP 32 Sauer Danfoss hydraulic orbital motor 32 cm3 straight shaft
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100171
- Brand
- Sauer Danfoss
- Identification number
- 151-0641 OMP 32
- Other numbers
- 1510641 OMP32
- Approximate weight (kg)
- 5,5
Description
Hydraulic orbital motor for high torque and low/medium speed applications.
Shaft type: Straight shaft 25 mm Diameter and 8 mm Width parallel key.
Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes.
Gearwheel set case width (L1): 4,1 mm
Displacement: 32 cm3
Side Ports: Threaded G1/2 ports (1/2" BSPP)
Drain Port: 1/4" GAS
Max speed: 1560 rpm (intermittent operation: 1720 rpm)
Max. Torque: 43 Nm (intermittent operation: 61 Nm; peak load:86 Nm)
Max. Output Power: 5,8 kW (intermittent operation: 7,8 kW)
Max. Pressure Drop: 100 bar (intermittent operation: 140 bar; peak load:225 bar)
Max oil flow: 50 liters/minute (intermittent operation: 55 liters/minute)
Max. starting pressure with unloaded shaft: 10 bar
Min. starting torque at max. press. drop cont.: 40 Nm
Min. starting torque at max. press. drop int.: 55 Nm
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Straight shaft 25 mm Diameter and 8 mm Width parallel key.
Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes.
Gearwheel set case width (L1): 4,1 mm
Displacement: 32 cm3
Side Ports: Threaded G1/2 ports (1/2" BSPP)
Drain Port: 1/4" GAS
Max speed: 1560 rpm (intermittent operation: 1720 rpm)
Max. Torque: 43 Nm (intermittent operation: 61 Nm; peak load:86 Nm)
Max. Output Power: 5,8 kW (intermittent operation: 7,8 kW)
Max. Pressure Drop: 100 bar (intermittent operation: 140 bar; peak load:225 bar)
Max oil flow: 50 liters/minute (intermittent operation: 55 liters/minute)
Max. starting pressure with unloaded shaft: 10 bar
Min. starting torque at max. press. drop cont.: 40 Nm
Min. starting torque at max. press. drop int.: 55 Nm
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMP
- Category: Straight shaft 25 mm
- Category: With case drain
- Last updated: 2016-09-15 23:02:13
