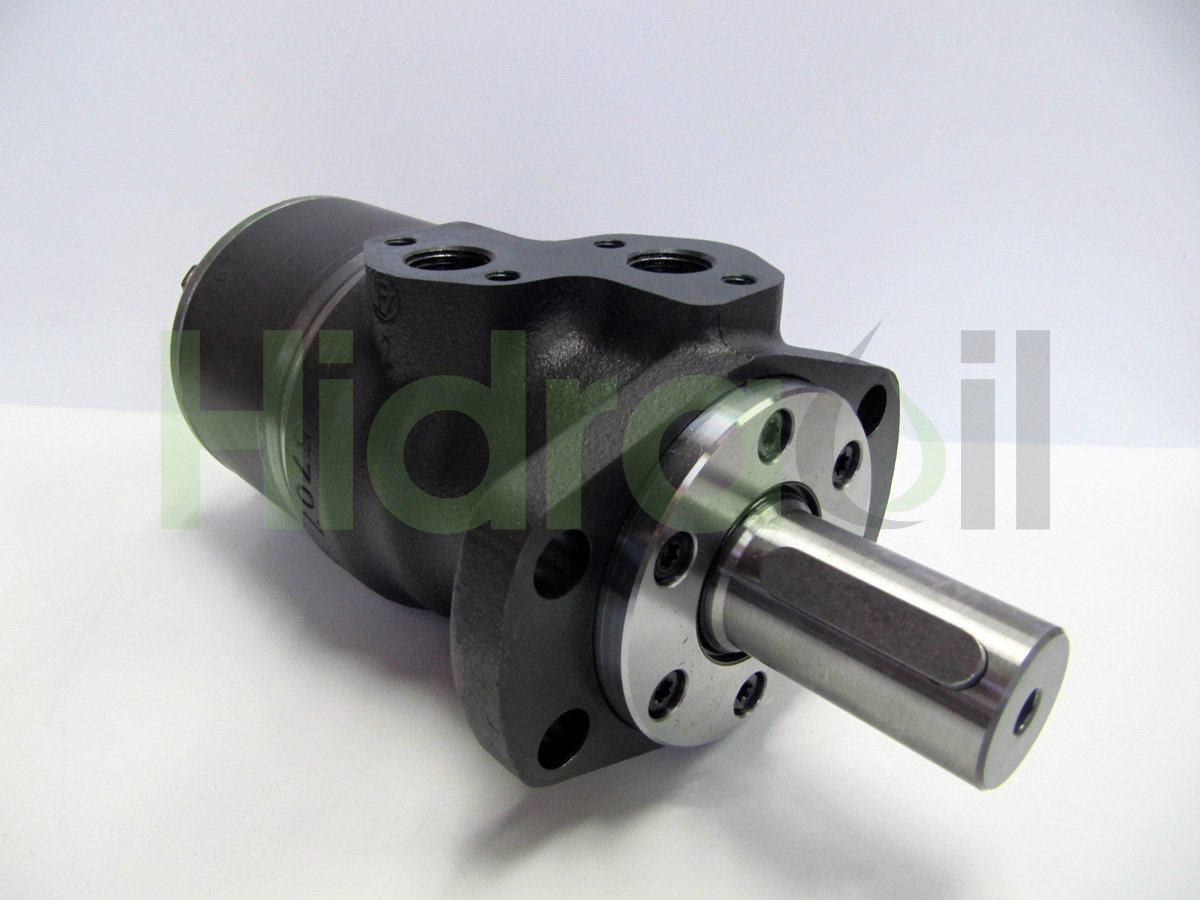

151-6000 OMR 50 Sauer Danfoss hydraulic orbital motor 50 cm3 straight shaft 32 mm and flange A4
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101293
- Brand
- Sauer Danfoss
- Identification number
- 151-6000 OMR 50
- Other numbers
- 1516000 OMR50
- Approximate weight (kg)
- 6,7
Description
Hydraulic orbital motor for High Torque applications. (geroller) from baja velocidad y alto par.
Shaft type: Straight shaft Diameter 32 mm with 10 mm parallel key width.
Flange type: Tipo A4 con centraje from diámetro 82.5 mm y diámetro from 106.4 mm entre centros from los 4 taladros.
Gerotor/Geroller width (geroller): 9,0 mm.
Displacement: 51,6 cm3/rev
Side Ports: Threaded 1/2" GAS.
Drain Port: G1/4 Threaded Port (1/4" BSPP).
Max speed: 775 rpm (intermittent operation: 970 rpm).
Max. Torque: 100 Nm (intermittent operation: 130 Nm; peak load:170 Nm).
Max. Output Power: 7 kW (intermittent operation: 8,5 kW).
Max. Pressure Drop: 140 bar (intermittent operation: 175 bar; peak load:225 bar).
Max oil flow: 40 liters/minute (intermittent operation: 50 liters/minute).
Max. starting pressure with unloaded shaft: 10 bar.
Min. starting torque at max. press. drop cont.: 80 Nm.
Min. starting torque at max. press. drop int.: 100 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Straight shaft Diameter 32 mm with 10 mm parallel key width.
Flange type: Tipo A4 con centraje from diámetro 82.5 mm y diámetro from 106.4 mm entre centros from los 4 taladros.
Gerotor/Geroller width (geroller): 9,0 mm.
Displacement: 51,6 cm3/rev
Side Ports: Threaded 1/2" GAS.
Drain Port: G1/4 Threaded Port (1/4" BSPP).
Max speed: 775 rpm (intermittent operation: 970 rpm).
Max. Torque: 100 Nm (intermittent operation: 130 Nm; peak load:170 Nm).
Max. Output Power: 7 kW (intermittent operation: 8,5 kW).
Max. Pressure Drop: 140 bar (intermittent operation: 175 bar; peak load:225 bar).
Max oil flow: 40 liters/minute (intermittent operation: 50 liters/minute).
Max. starting pressure with unloaded shaft: 10 bar.
Min. starting torque at max. press. drop cont.: 80 Nm.
Min. starting torque at max. press. drop int.: 100 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMR
- Category: Straight shaft 32 mm
- Category: Flange Tipo A4
- Last updated: 2015-10-06 22:42:56
