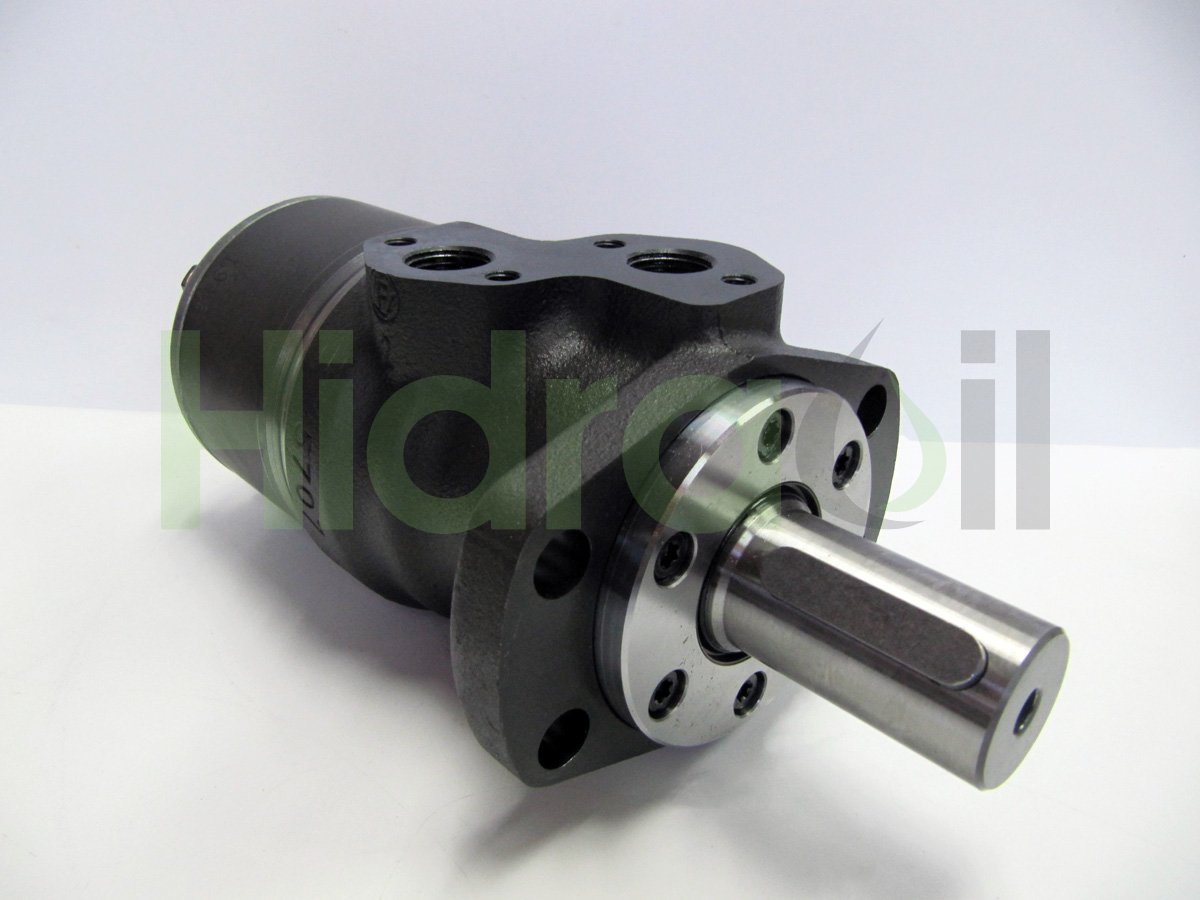

151-6006 OMR 250 Sauer Danfoss hydraulic orbital motor 250 cm3 straight shaft 32 mm and flange A4
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101299
- Brand
- Sauer Danfoss
- Identification number
- 151-6006 OMR 250
- Other numbers
- 1516006 OMR250
- Approximate weight (kg)
- 8,5
Description
Hydraulic orbital motor for High Torque applications. (geroller) from baja velocidad y alto par.
Shaft type: Straight shaft Diameter 32 mm with 10 mm parallel key width.
Flange type: Tipo A4 con centraje from diámetro 82,5 mm y diámetro from 106,4 mm entre centros from los 4 taladros.
Gerotor/Geroller width (geroller): 43,5 mm.
Displacement: 249,3 cm3/rev.
Side Ports: Threaded 1/2" GAS.
Drain Port: G1/4 Threaded Port (1/4" BSPP).
Max speed: 240 rpm (intermittent operation: 300 rpm).
Max. Torque: 540 Nm (intermittent operation: 610 Nm; peak load:710 Nm).
Max. Output Power: 10 kW (intermittent operation: 12 kW).
Max. Pressure Drop: 175 bar (intermittent operation: 200 bar; peak load:225 bar).
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute).
Max. starting pressure with unloaded shaft: 5 bar.
Min. starting torque at max. press. drop cont.: 500 Nm.
Min. starting torque at max. press. drop int.: 550 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Straight shaft Diameter 32 mm with 10 mm parallel key width.
Flange type: Tipo A4 con centraje from diámetro 82,5 mm y diámetro from 106,4 mm entre centros from los 4 taladros.
Gerotor/Geroller width (geroller): 43,5 mm.
Displacement: 249,3 cm3/rev.
Side Ports: Threaded 1/2" GAS.
Drain Port: G1/4 Threaded Port (1/4" BSPP).
Max speed: 240 rpm (intermittent operation: 300 rpm).
Max. Torque: 540 Nm (intermittent operation: 610 Nm; peak load:710 Nm).
Max. Output Power: 10 kW (intermittent operation: 12 kW).
Max. Pressure Drop: 175 bar (intermittent operation: 200 bar; peak load:225 bar).
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute).
Max. starting pressure with unloaded shaft: 5 bar.
Min. starting torque at max. press. drop cont.: 500 Nm.
Min. starting torque at max. press. drop int.: 550 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMR
- Category: Straight shaft 32 mm
- Category: Flange Tipo A4
