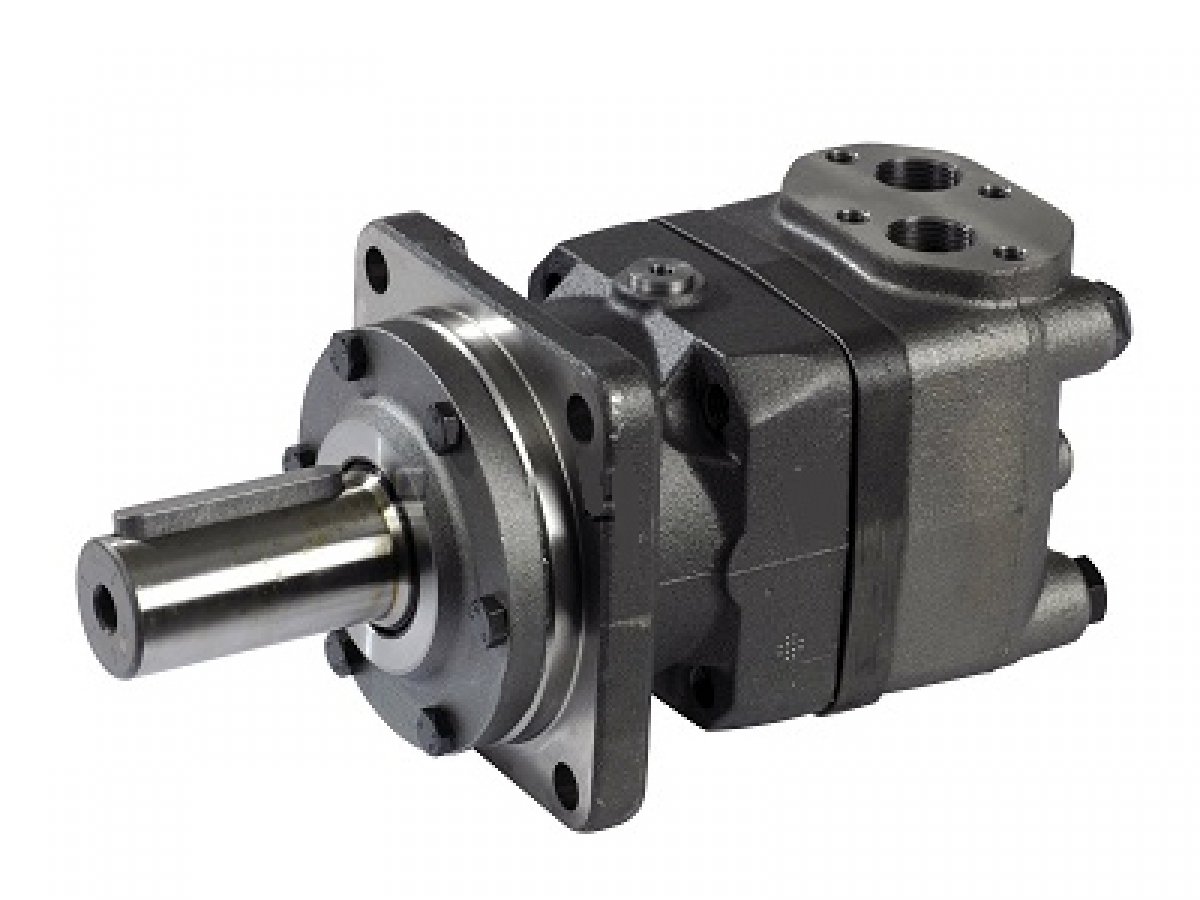

Thumbnail of 151B3000 OMT 160 Danfoss hydraulic orbital motor 160 cm3 with cylindrical shaft D40
The images are indicative and may differ from the final product delivered.
INQUIRE ABOUT PRICE & STOCK

Payment and shipping metods

...

151B3000 OMT 160 Danfoss hydraulic orbital motor 160 cm3 with cylindrical shaft D40

Danfoss
Shipping Worldwide

INQUIRE ABOUT PRICE & STOCK

Payment and shipping metods

...

Product identification


  • Hidraoil Part number: GFX100135
  • Brand of product: Danfoss
  • Part number: 151B3000 OMT 160
  • Other numbers: 151B 3000 OMT160

Description


  • Hydraulic orbital motor Danfoss OMT (former Sauer Danfoss) for high torque and low/medium speed applications. Robust and compact design. High starting torque and High Efficiency motors.
    Shaft type: Straight shaft 40 mm Diameter and 12 mm Width parallel key.
    Flange type: Square 4 holes Flange with 125 mm centering diameter and 160 mm diameter between hole centers.
    Gearwheel set case width (L1): 16.5 mm.
    Displacement: 161.1 cm3/rev.
    Side Ports: G3/4 Threaded Ports (3/4" BSPP).
    Drain Port: G1/4 Threaded Port (1/4" BSPP)
    Max speed: 625 rpm (intermittent operation: 780 rpm).
    Max. Torque: 470 Nm (intermittent operation: 560 Nm).
    Max. Output Power: 26.5 kW (intermittent operation: 32 kW).
    Max. Pressure Drop: 200 bar (intermittent operation: 240 bar; peak: 280 bar).
    Max oil flow: 100 liters/minute (intermittent operation: 125 liters/minute).
    Max. starting pressure with unloaded shaft: 10 bar.
    Min. starting torque at max. press. drop cont.: 340 Nm.
    Min. starting torque at max. press. drop int.: 410 Nm.
    Intermittent operation: the permissible values may occur for max. 10% of every minute.
    Peak load: the permissible values may occur for max. 1% of every minute.

  • Main product category: Hydraulic Motors
  • Subcategory: Orbital
  • Approximate weight (kg): 20,0
  • Availability: Inquire about stock
  • Update date: 2021-10-21 18:28:00
