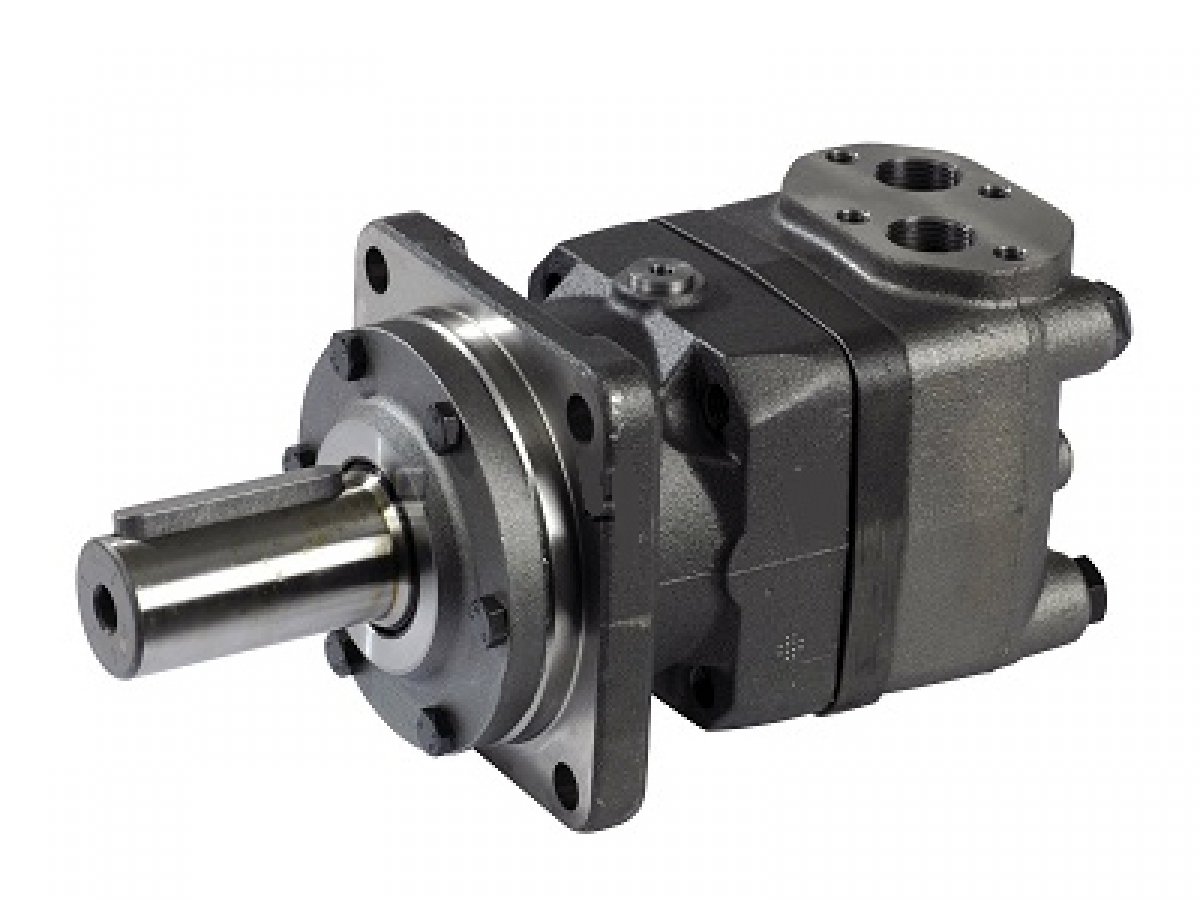

151B3003 OMT 315 Danfoss hydraulic orbital motor 315 cm3 with cylindrical shaft D40
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100138
- Brand
- Danfoss
- Identification number
- 151B3003 OMT 315
- Other numbers
- 151B 3003 OMT315 151B30032.1
- Approximate weight (kg)
- 22,0
Description
Hydraulic orbital motor Danfoss OMT (former Sauer Danfoss) for high torque and low/medium speed applications. Robust and compact design. High starting torque and High Efficiency motors.
Shaft type: Straight shaft 40 mm Diameter and 12 mm Width parallel key.
Flange type: Square 4 holes Flange with 125 mm centering diameter and 160 mm diameter between hole centers.
Gearwheel set case width (L1): 37 mm.
Displacement: 326.3 cm3/rev.
Side Ports: G3/4 Threaded Ports (3/4" BSPP).
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 380 rpm (intermittent operation: 460 rpm).
Max. Torque: 950 Nm (intermittent operation: 1140 Nm).
Max. Output Power: 33.5 kW (intermittent operation: 40 kW).
Max. Pressure Drop: 200 bar (intermittent operation: 240 bar; peak: 280 bar).
Max oil flow: 125 liters/minute (intermittent operation: 150 liters/minute).
Max. starting pressure with unloaded shaft: 10 bar.
Min. starting torque at max. press. drop cont.: 740 Nm.
Min. starting torque at max. press. drop int.: 890 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Straight shaft 40 mm Diameter and 12 mm Width parallel key.
Flange type: Square 4 holes Flange with 125 mm centering diameter and 160 mm diameter between hole centers.
Gearwheel set case width (L1): 37 mm.
Displacement: 326.3 cm3/rev.
Side Ports: G3/4 Threaded Ports (3/4" BSPP).
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 380 rpm (intermittent operation: 460 rpm).
Max. Torque: 950 Nm (intermittent operation: 1140 Nm).
Max. Output Power: 33.5 kW (intermittent operation: 40 kW).
Max. Pressure Drop: 200 bar (intermittent operation: 240 bar; peak: 280 bar).
Max oil flow: 125 liters/minute (intermittent operation: 150 liters/minute).
Max. starting pressure with unloaded shaft: 10 bar.
Min. starting torque at max. press. drop cont.: 740 Nm.
Min. starting torque at max. press. drop int.: 890 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMT
- Category: Standard - Straight shaft D40
- Last updated: 2021-10-25 16:42:00
