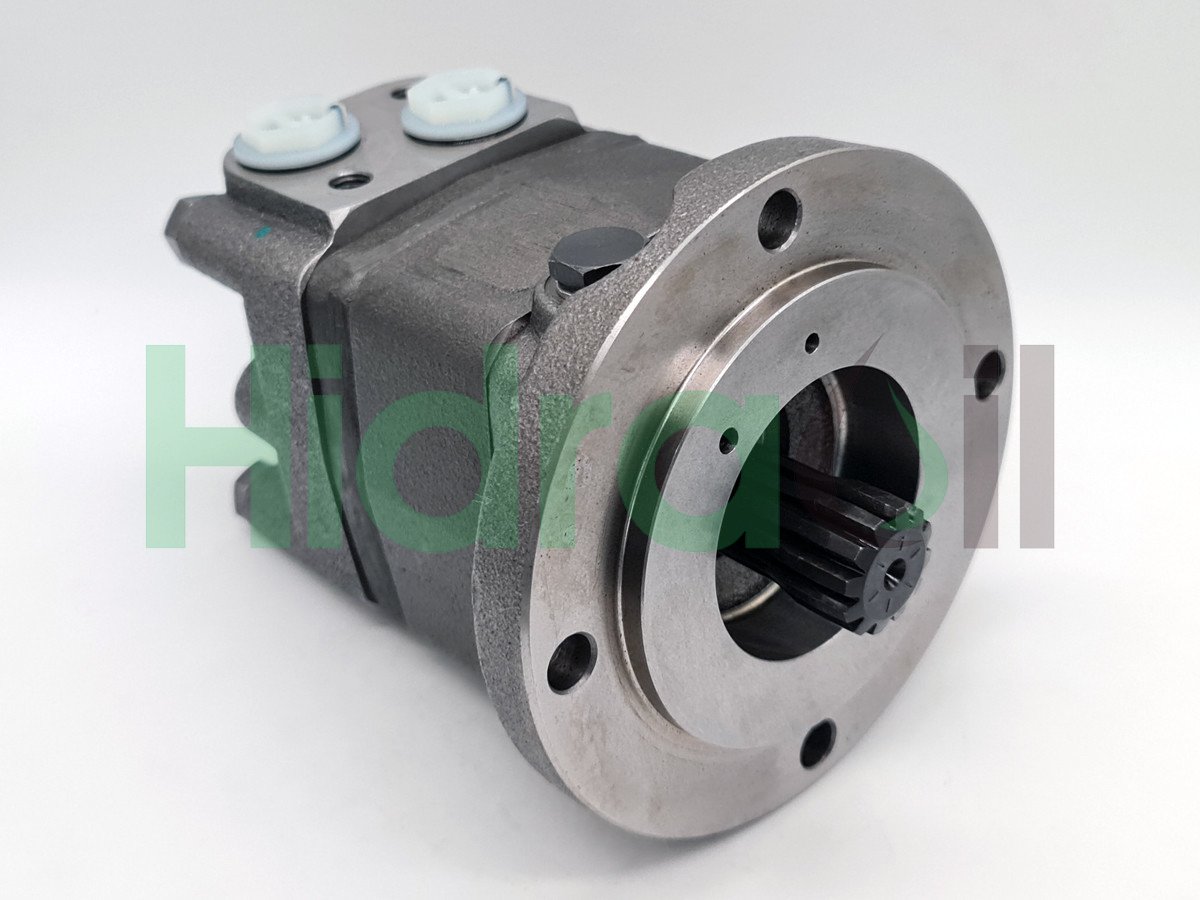

151F0537 OMSS 125 White Sauer Danfoss hydraulic orbital motor 125 cm3 with splined cardan shaft
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101192
- Brand
- White
- Identification number
- 151F0537 OMSS 125
- Other numbers
- 151F 0537 OMSS125 151F0237 151F 0237
- Approximate weight (kg)
- 8,3
Description
Hydraulic Orbital Motor for Low speed and High Torque applications.
Shaft type: Splined tipo cardan.
Flange type: Redonda con fijación mediante 4 taladros, centraje from diámetro 100 mm y 125 mm from diámetro entre centros from taladros.
Gerotor/Geroller width (geroller): 21,8 mm.
Displacement: 125,7 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 600 rpm (intermittent operation: 720 rpm).
Max. Torque: 375 Nm (intermittent operation: 490 Nm).
Max. Output Power: 18 kW (intermittent operation: 22,5 kW).
Max. Pressure Drop: 210 bar (intermittent operation: 275 bar; peak load:295 bar).
Max oil flow: 75 liters/minute (intermittent operation: 90 liters/minute).
Max. starting pressure with unloaded shaft: 10 bar.
Min. starting torque at max. press. drop cont.: 290 Nm.
Min. starting torque at max. press. drop int.: 380 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Splined tipo cardan.
Flange type: Redonda con fijación mediante 4 taladros, centraje from diámetro 100 mm y 125 mm from diámetro entre centros from taladros.
Gerotor/Geroller width (geroller): 21,8 mm.
Displacement: 125,7 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 600 rpm (intermittent operation: 720 rpm).
Max. Torque: 375 Nm (intermittent operation: 490 Nm).
Max. Output Power: 18 kW (intermittent operation: 22,5 kW).
Max. Pressure Drop: 210 bar (intermittent operation: 275 bar; peak load:295 bar).
Max oil flow: 75 liters/minute (intermittent operation: 90 liters/minute).
Max. starting pressure with unloaded shaft: 10 bar.
Min. starting torque at max. press. drop cont.: 290 Nm.
Min. starting torque at max. press. drop int.: 380 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMS
- Category: OMSS
- Last updated: 2018-10-25 22:45:35
