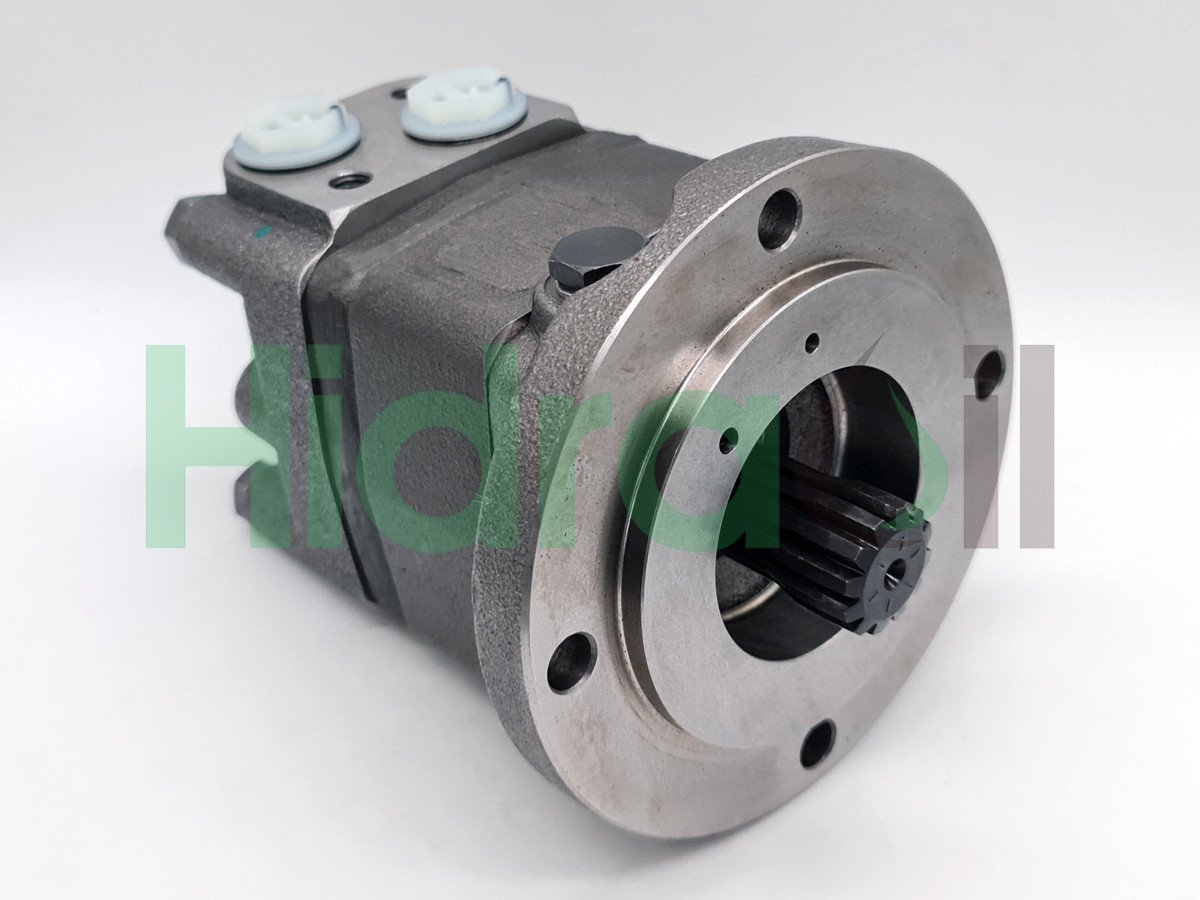

151F0541 OMSS 315 White Sauer Danfoss hydraulic orbital motor 315 cm3 with splined cardan shaft
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101196
- Brand
- White
- Identification number
- 151F0541 OMSS 315
- Other numbers
- 151F 0541 OMSS315 151F0241 151F 0241
- Approximate weight (kg)
- 10,3
Description
Hydraulic Orbital Motor for Low speed and High Torque applications.
Shaft type: Splined tipo cardan.
Flange type: Redonda con fijación mediante 4 taladros, centraje from diámetro 100 mm y 125 mm from diámetro entre centros from taladros.
Gerotor/Geroller width (geroller): 54,8 mm.
Displacement: 314,9 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 240 rpm (intermittent operation: 285 rpm).
Max. Torque: 825 Nm (intermittent operation: 1000 Nm).
Max. Output Power: 15 kW (intermittent operation: 17 kW).
Max. Pressure Drop: 200 bar (intermittent operation: 240 bar; peak load:260 bar).
Max oil flow: 75 liters/minute (intermittent operation: 90 liters/minute).
Max. starting pressure with unloaded shaft: 8 bar.
Min. starting torque at max. press. drop cont.: 710 Nm.
Min. starting torque at max. press. drop int.: 850 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Splined tipo cardan.
Flange type: Redonda con fijación mediante 4 taladros, centraje from diámetro 100 mm y 125 mm from diámetro entre centros from taladros.
Gerotor/Geroller width (geroller): 54,8 mm.
Displacement: 314,9 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 240 rpm (intermittent operation: 285 rpm).
Max. Torque: 825 Nm (intermittent operation: 1000 Nm).
Max. Output Power: 15 kW (intermittent operation: 17 kW).
Max. Pressure Drop: 200 bar (intermittent operation: 240 bar; peak load:260 bar).
Max oil flow: 75 liters/minute (intermittent operation: 90 liters/minute).
Max. starting pressure with unloaded shaft: 8 bar.
Min. starting torque at max. press. drop cont.: 710 Nm.
Min. starting torque at max. press. drop int.: 850 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMS
- Category: OMSS
