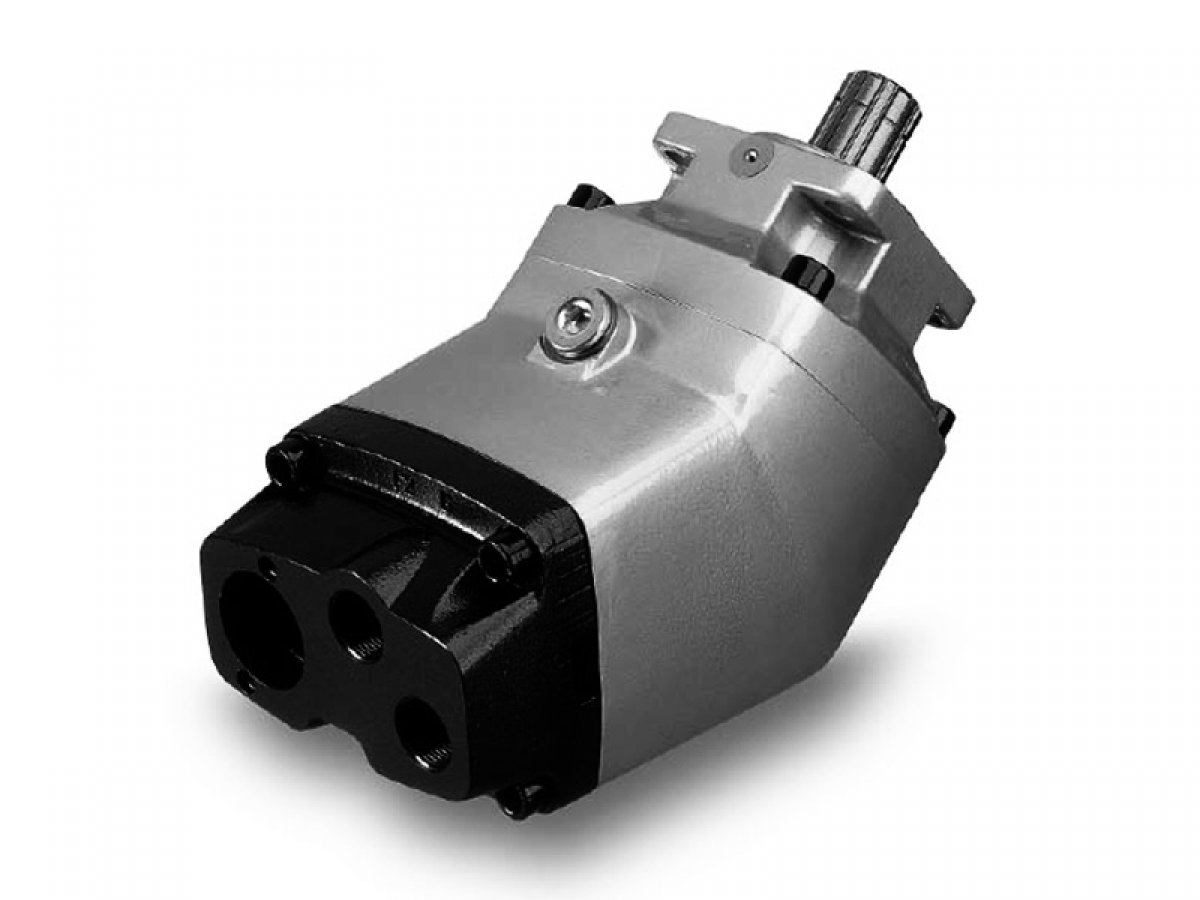

F2-70/35-L Parker hydraulic piston pump bent axis doble caudal 70+35 cm3 splined shaft z8
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101101
- Brand
- Parker
- Identification number
- F2-70/35-L
- Other numbers
- 3781471 378 1471 F270/35L F2-70-35-L F27035L
- Approximate weight (kg)
- 19,0
Description
Hydraulic bent-axis piston pump with fixed displacement for open circuit, mainly for demanding mobile applications.
Displacements: 69+36 cm3/rev.
Flow @ 1500 rpm: 103.5+54 liters/minute.
Shaft type: Splined shaft z8 External diameter 34.9 mm (DIN 5462 / ISO 14 type B8x32x36).
Flange type: 4 holes flange with centering diameter 80 mm and distance between holes 80x80 mm..
Max working Pressure: 350 bar.
Max Pressure intermittent: 400 bar.
Max speed: 2550 rpm.
Rotation: Counterclockwise rotation.
Displacements: 69+36 cm3/rev.
Flow @ 1500 rpm: 103.5+54 liters/minute.
Shaft type: Splined shaft z8 External diameter 34.9 mm (DIN 5462 / ISO 14 type B8x32x36).
Flange type: 4 holes flange with centering diameter 80 mm and distance between holes 80x80 mm..
Max working Pressure: 350 bar.
Max Pressure intermittent: 400 bar.
Max speed: 2550 rpm.
Rotation: Counterclockwise rotation.
More information
- Category: Hydraulic Pumps
- Category: Piston
- Category: Axial
- Category: Fixed displacement
- Category: Bent-Axis
- Category: Parker
- Category: F2 Twin Flow
