F2-70/35-R Parker hydraulic piston pump bent-axis double flow 70+35 cm3 with splined shaft z8 CW rotation

Parker
Shipping Worldwide

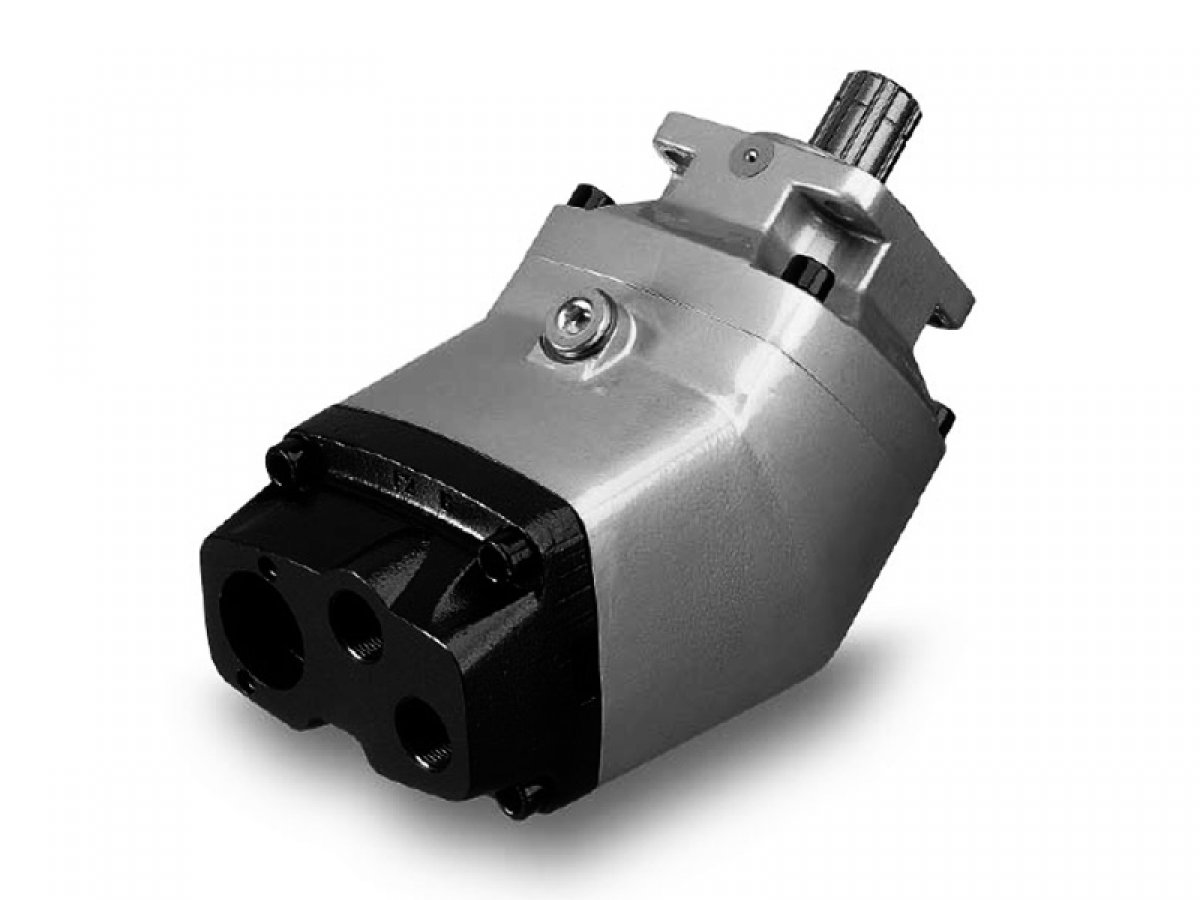

Thumbnail of F2-70/35-R Parker hydraulic piston pump bent-axis double flow 70+35 cm3 with splined shaft z8 CW rotation
The images are indicative and may differ from the final product delivered.
INQUIRE ABOUT PRICE & STOCK

Payment and shipping metods

...

F2-70/35-R Parker hydraulic piston pump bent-axis double flow 70+35 cm3 with splined shaft z8 CW rotation

Parker
Shipping Worldwide

INQUIRE ABOUT PRICE & STOCK

Payment and shipping metods

...

Product identification


  • Hidraoil Part number: GFX101100
  • Brand of product: Parker
  • Part number: F2-70/35-R
  • Other numbers: 3781470 378 1470 F270/35R F2-70-35-R F27035R

Description


  • Hydraulic bent-axis piston pump with fixed displacement for open circuit, mainly for demanding mobile applications.
    Displacements: 69+36 cm3/rev.
    Flow @ 1500 rpm: 103.5+54 liters/minute.
    Shaft type: Splined shaft z8 External diameter 34.9 mm (DIN 5462 / ISO 14 type B8x32x36).
    Flange type: 4 holes flange with centering diameter 80 mm and distance between holes 80x80 mm..
    Max working Pressure: 350 bar.
    Max Pressure intermittent: 400 bar.
    Max speed: 2550 rpm.
    Rotation: Clockwise rotation.

  • Main product category: Hydraulic Pumps
  • Subcategory: Piston
  • Approximate weight (kg): 19,0
  • Availability: Inquire about stock
  • Update date: 2020-05-26 08:35:29
