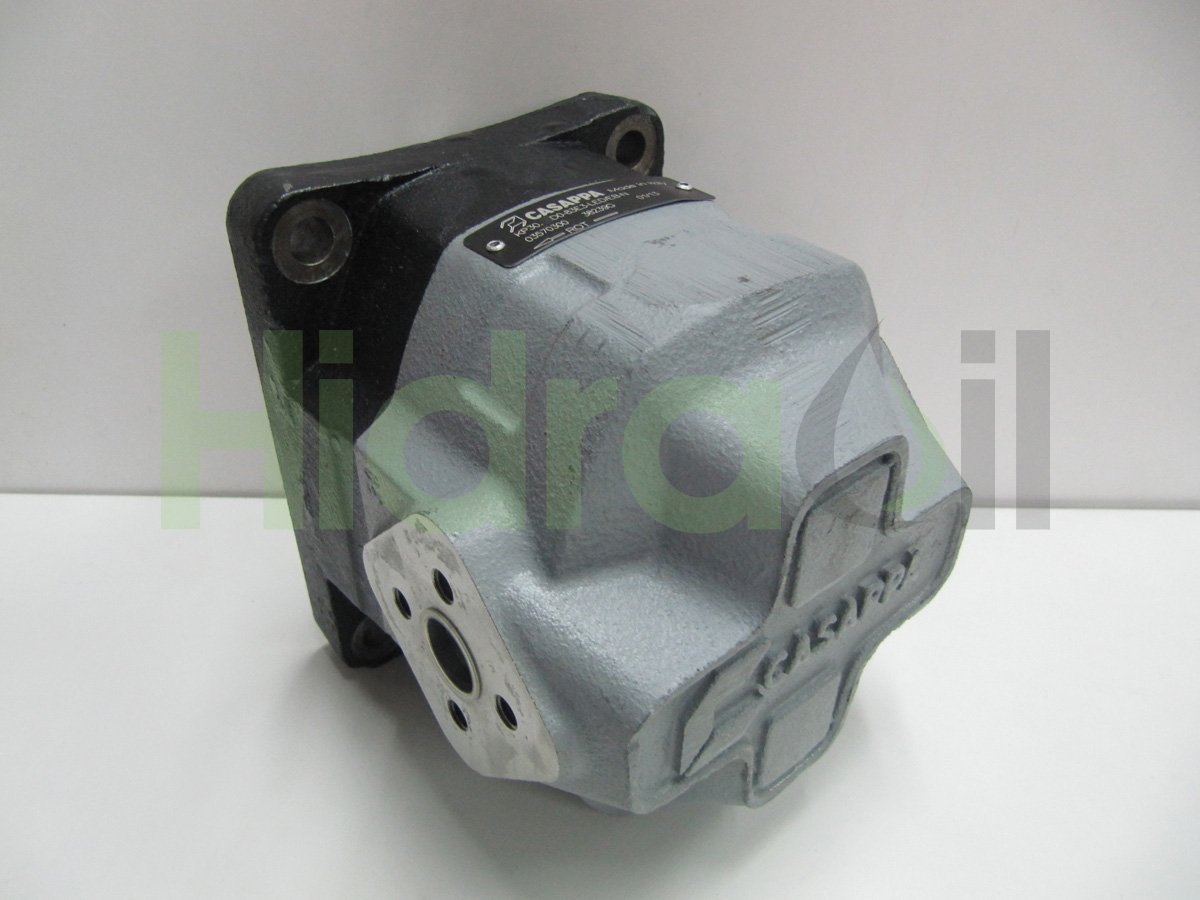

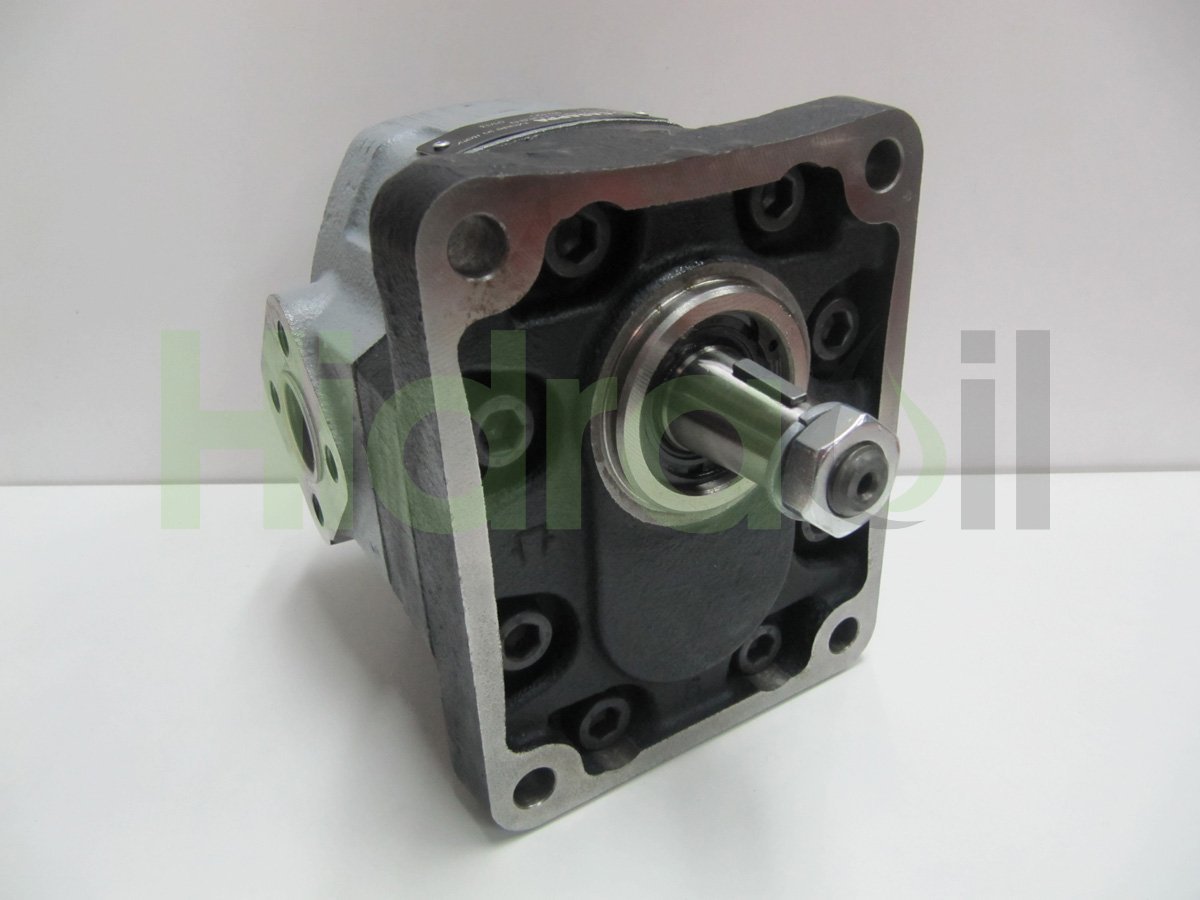

KP30.27D0-83E3-LED/EB-N Casappa hydraulic gear pump 27 cm3 tapered shaft 1:8
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100308
- Brand
- Casappa
- Identification number
- KP30.27D0-83E3-LED/EB-N
- Other numbers
- 03569800
- Approximate weight (kg)
- 12,7
Description
Hydraulic external gear pump Group 3 with cast iron body.
Displacement: 26,7 cm3/rev.
Flow @ 1500 rpm: 40 liters/minute.
Max working Pressure: 280 bar.
Speed Range: From 350 up to 3000 rpm.
Rotation: Clockwise rotation.
Shaft type: Tapered 1:8 with 4 mm key width.
Flange type: European type centering diameter 50.8 mm and distance between holes 128 x 98 mm.
Inlet ports: Italian flange type D51xM10xD27.
Outlet ports: Italian flange type D40xM8xD19.
Displacement: 26,7 cm3/rev.
Flow @ 1500 rpm: 40 liters/minute.
Max working Pressure: 280 bar.
Speed Range: From 350 up to 3000 rpm.
Rotation: Clockwise rotation.
Shaft type: Tapered 1:8 with 4 mm key width.
Flange type: European type centering diameter 50.8 mm and distance between holes 128 x 98 mm.
Inlet ports: Italian flange type D51xM10xD27.
Outlet ports: Italian flange type D40xM8xD19.
More information
- Category: Hydraulic Pumps
- Category: External gear
- Category: Cast iron
- Category: Group 3
- Category: Casappa
- Category: KP30
- Category: Shaft 83 and Flange E3
- Category: Flange type ports
- Category: CW rotation
