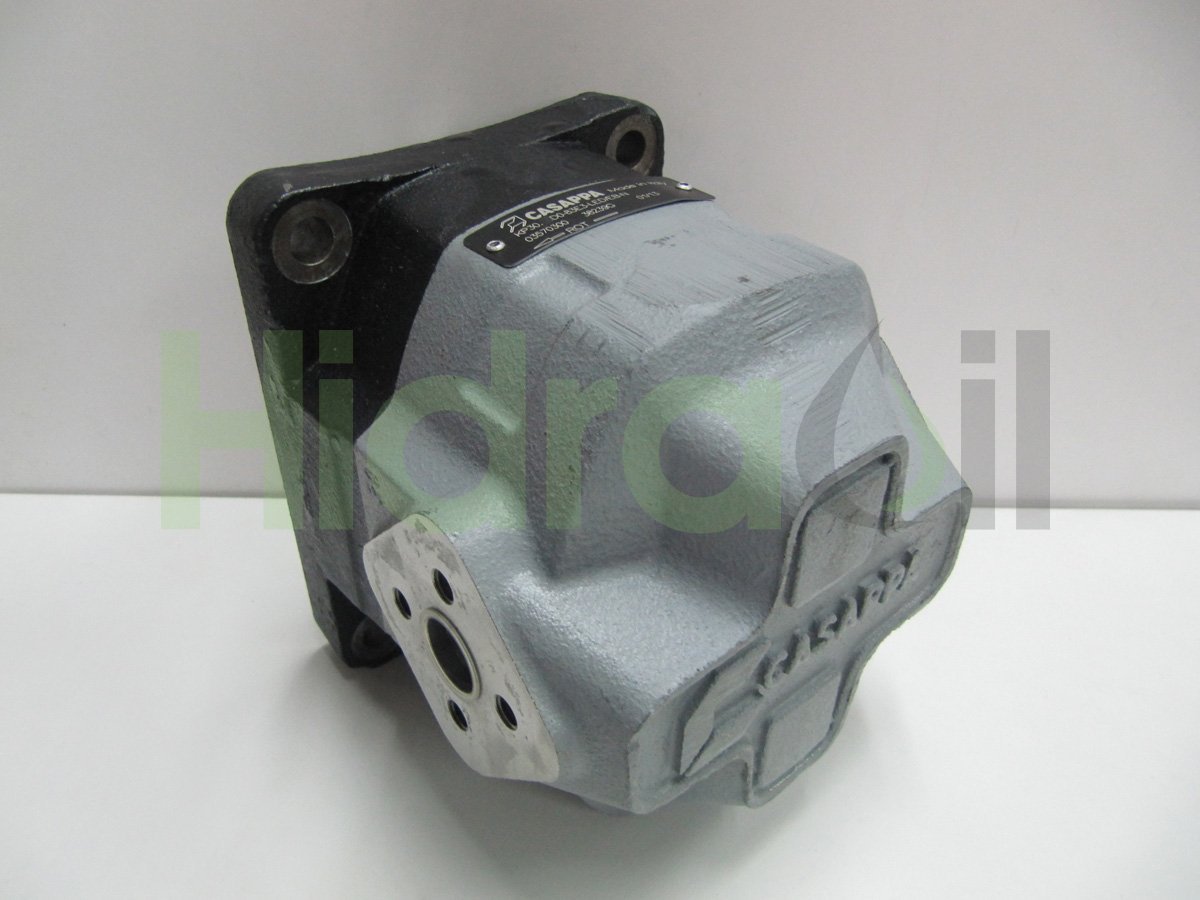

KP30.73D0-83E3-LED/EB-N Casappa hydraulic gear pump 73 cm3 tapered shaft 1:8
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100314
- Brand
- Casappa
- Identification number
- KP30.73D0-83E3-LED/EB-N
- Approximate weight (kg)
- 15,2
Description
Hydraulic external gear pump Group 3 with cast iron body.
Displacement: 73,82 cm3/rev
Flow @ 1500 rpm: 110,7 liters/minute
Max working Pressure: 180 bar
Speed Range: From 350 up to 2500 rpm
Rotation: Clockwise rotation

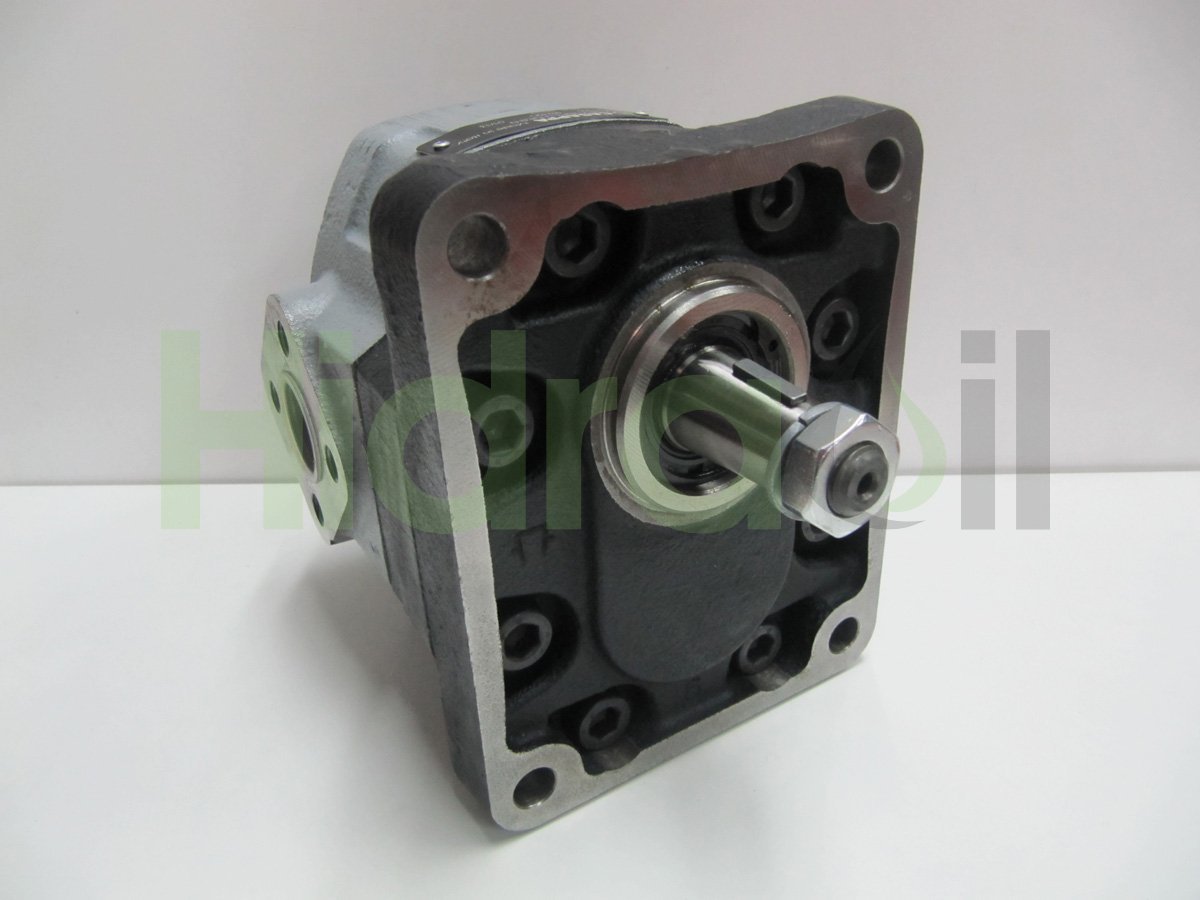

Shaft type: Tapered 1:8 with 4 mm key width
Flange type: European type centering diameter 50.8 mm and distance between holes 128 x 98 mm
Inlet ports:Tipo brida (en cruz), diámetro paso aceite 33 mm, diámetro entre centros from roscados 62 mm para tornillos M12
Outlet ports: Tipo brida (en cruz), diámetro paso aceite 27 mm, diámetro entre centros from roscados 51 mm para tornillos M10
Displacement: 73,82 cm3/rev
Flow @ 1500 rpm: 110,7 liters/minute
Max working Pressure: 180 bar
Speed Range: From 350 up to 2500 rpm
Rotation: Clockwise rotation
Shaft type: Tapered 1:8 with 4 mm key width
Flange type: European type centering diameter 50.8 mm and distance between holes 128 x 98 mm
Inlet ports:Tipo brida (en cruz), diámetro paso aceite 33 mm, diámetro entre centros from roscados 62 mm para tornillos M12
Outlet ports: Tipo brida (en cruz), diámetro paso aceite 27 mm, diámetro entre centros from roscados 51 mm para tornillos M10
More information
- Category: Hydraulic Pumps
- Category: External gear
- Category: Cast iron
- Category: Group 3
- Category: Casappa
- Category: KP30
- Category: Shaft 83 and Flange E3
- Category: Flange type ports
- Category: CW rotation
