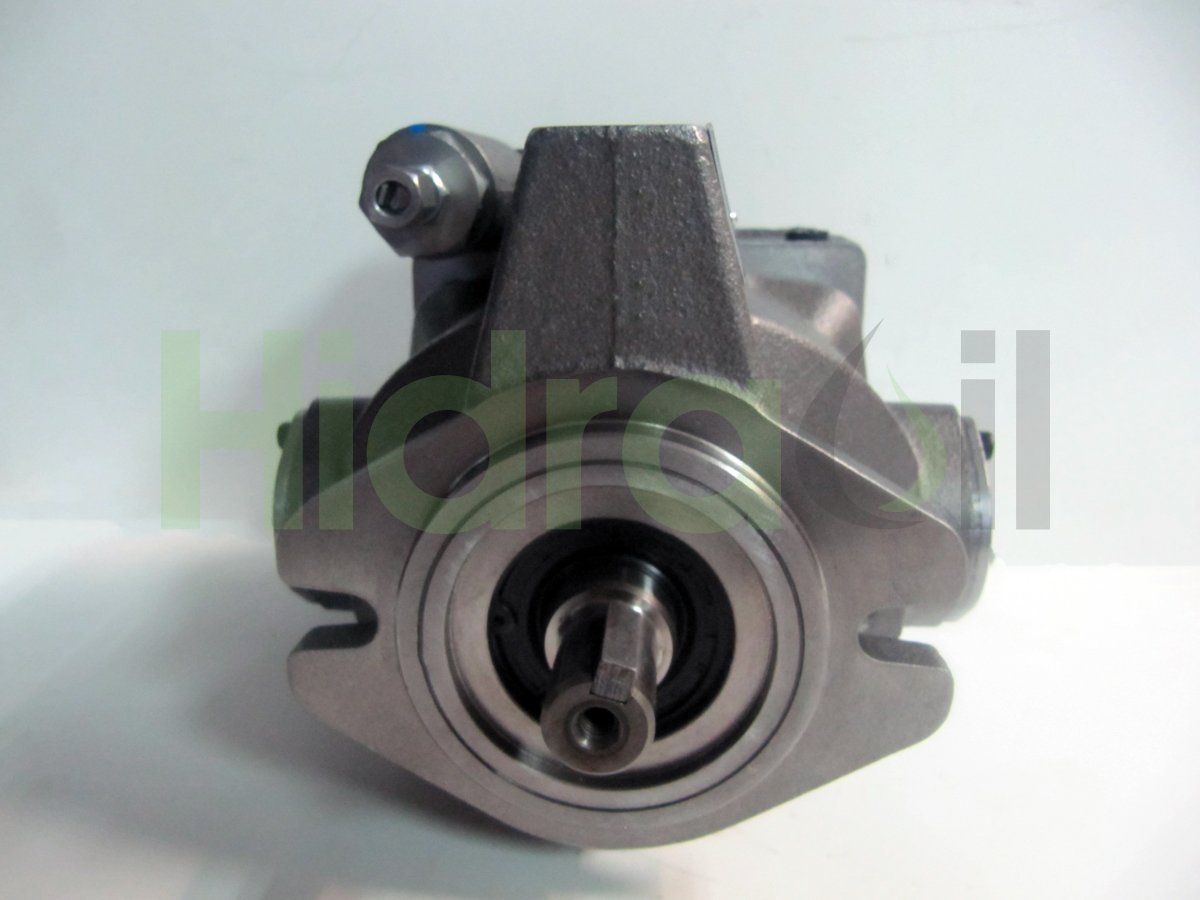

PVP1636K9R2 Parker piston hydraulic pump variable displacement 16.4 cm3 control pressure compensated control with 19.05mm cylindrical shaft
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101254
- Brand
- Parker
- Identification number
- PVP1636R2
- Other numbers
- PVP1636R212 PVP 16 36 R 2 Denison
- Approximate weight (kg)
- 19,0
Description
Hydraulic piston pump for High Pressure applications.
Type: From caudal variable.
Max displacement: 16,4 cm3/rev. Dispone from limitadora regulable from cilindrada máxima.
Flow @ 1500 rpm: 24,6 liters/minute.
Max working pressure: from 17 up to 248 bar (de 250 up to 3600 PSI).
Max working pressure: 248 bar (3600 PSI).
Max speed: 3000 rpm.
Power from entrada up to 1800 rpm y 248 bar: 13,1 kW.
Rotation: CW rotation.
Control Type: Control from presión compensada. Reduce la cilindrada al mínimo con el objetivo from mantener la presión y contrarrestar fugas.
Shaft type: Parallel diameter 19.05 mm con chaveta.
Flange type: Tipo SAE-A con centraje from diámetro 82.55 mm y fijación mediante 2 tornillos.
Type: From caudal variable.
Max displacement: 16,4 cm3/rev. Dispone from limitadora regulable from cilindrada máxima.
Flow @ 1500 rpm: 24,6 liters/minute.
Max working pressure: from 17 up to 248 bar (de 250 up to 3600 PSI).
Max working pressure: 248 bar (3600 PSI).
Max speed: 3000 rpm.
Power from entrada up to 1800 rpm y 248 bar: 13,1 kW.
Rotation: CW rotation.
Control Type: Control from presión compensada. Reduce la cilindrada al mínimo con el objetivo from mantener la presión y contrarrestar fugas.
Shaft type: Parallel diameter 19.05 mm con chaveta.
Flange type: Tipo SAE-A con centraje from diámetro 82.55 mm y fijación mediante 2 tornillos.
More information
- Category: Hydraulic Pumps
- Category: Piston
- Category: Axial
- Category: Variable displacement
- Category: Parker
- Category: PVP
