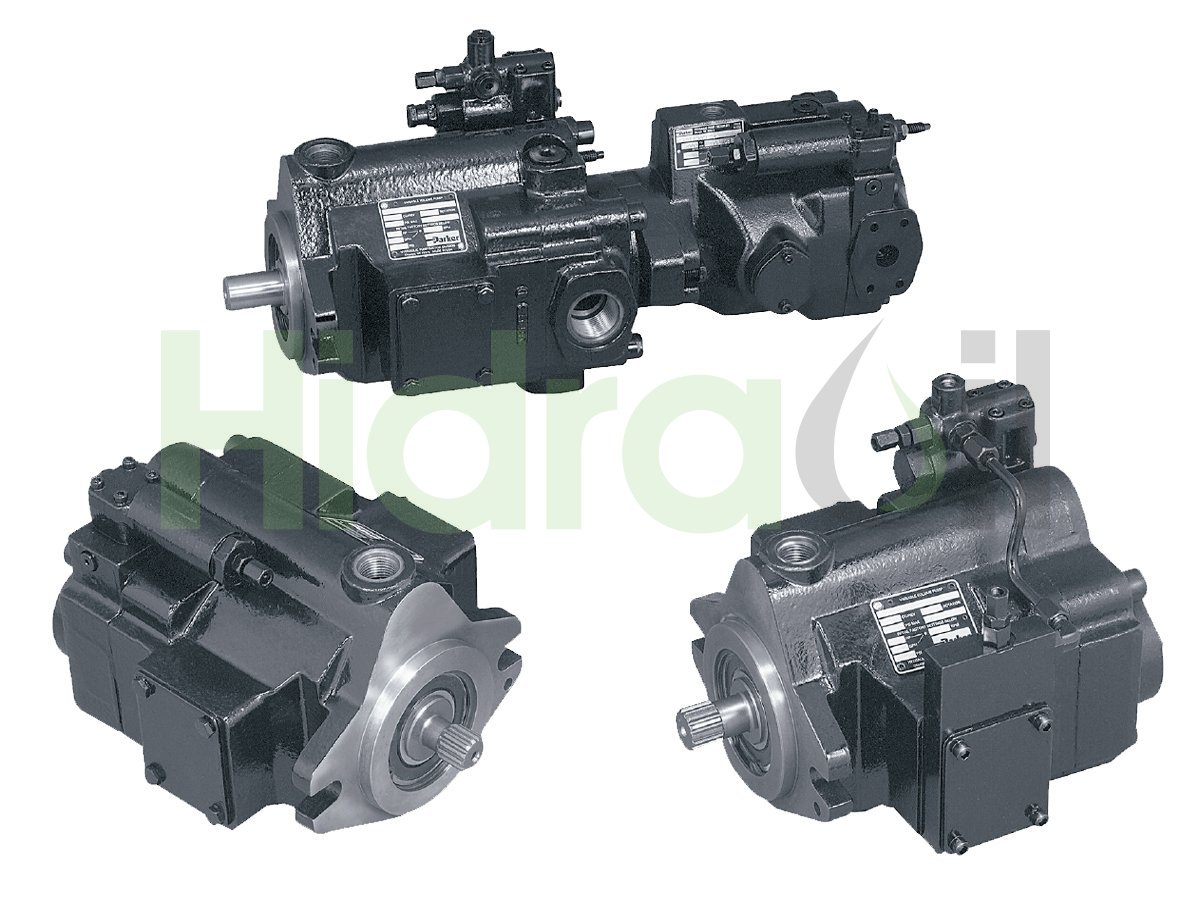

PVP33369R221 Parker piston hydraulic pump 33 cm3 control pressure compensated control with cylindrical shaft
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX107022
- Brand
- Parker
- Identification number
- PVP33369R221
- Other numbers
- PVP33369R2 21 Denison
- Approximate weight (kg)
- 30,0
Description
Hydraulic piston pump for High Pressure applications.
Type: From caudal variable.
Max displacement: 33 cm3/rev. Dispone from limitadora regulable from cilindrada máxima.
Flow @ 1200 rpm y 21 bar: 39.4 liters/minute.
Flow @ 1800 rpm y 21 bar: 59.0 liters/minute.
Rango from presión regulable: from 17 up to 248 bar (250-3600 PSI).
Max working pressure: 248 bar (3600 PSI).
Max speed: 3000 rpm.
Power from entrada up to 1800 rpm y 248 bar: 29.7 kW (36.5 HP).
Rotation: Clockwise rotation (looking at the shaft end of the pump).
Control Type: Control from presión compensada. Reduce la cilindrada al mínimo con el objetivo from mantener la presión y contrarrestar fugas.
Shaft type: Parallel diameter 22.22 mm con chaveta.
Flange type: Con centraje from diámetro 101.6 mm y fijación mediante 2 tornillos.
Type: From caudal variable.
Max displacement: 33 cm3/rev. Dispone from limitadora regulable from cilindrada máxima.
Flow @ 1200 rpm y 21 bar: 39.4 liters/minute.
Flow @ 1800 rpm y 21 bar: 59.0 liters/minute.
Rango from presión regulable: from 17 up to 248 bar (250-3600 PSI).
Max working pressure: 248 bar (3600 PSI).
Max speed: 3000 rpm.
Power from entrada up to 1800 rpm y 248 bar: 29.7 kW (36.5 HP).
Rotation: Clockwise rotation (looking at the shaft end of the pump).
Control Type: Control from presión compensada. Reduce la cilindrada al mínimo con el objetivo from mantener la presión y contrarrestar fugas.
Shaft type: Parallel diameter 22.22 mm con chaveta.
Flange type: Con centraje from diámetro 101.6 mm y fijación mediante 2 tornillos.
More information
- Category: Hydraulic Pumps
- Category: Piston
- Category: Axial
- Category: Variable displacement
- Category: Parker
- Category: PVP
