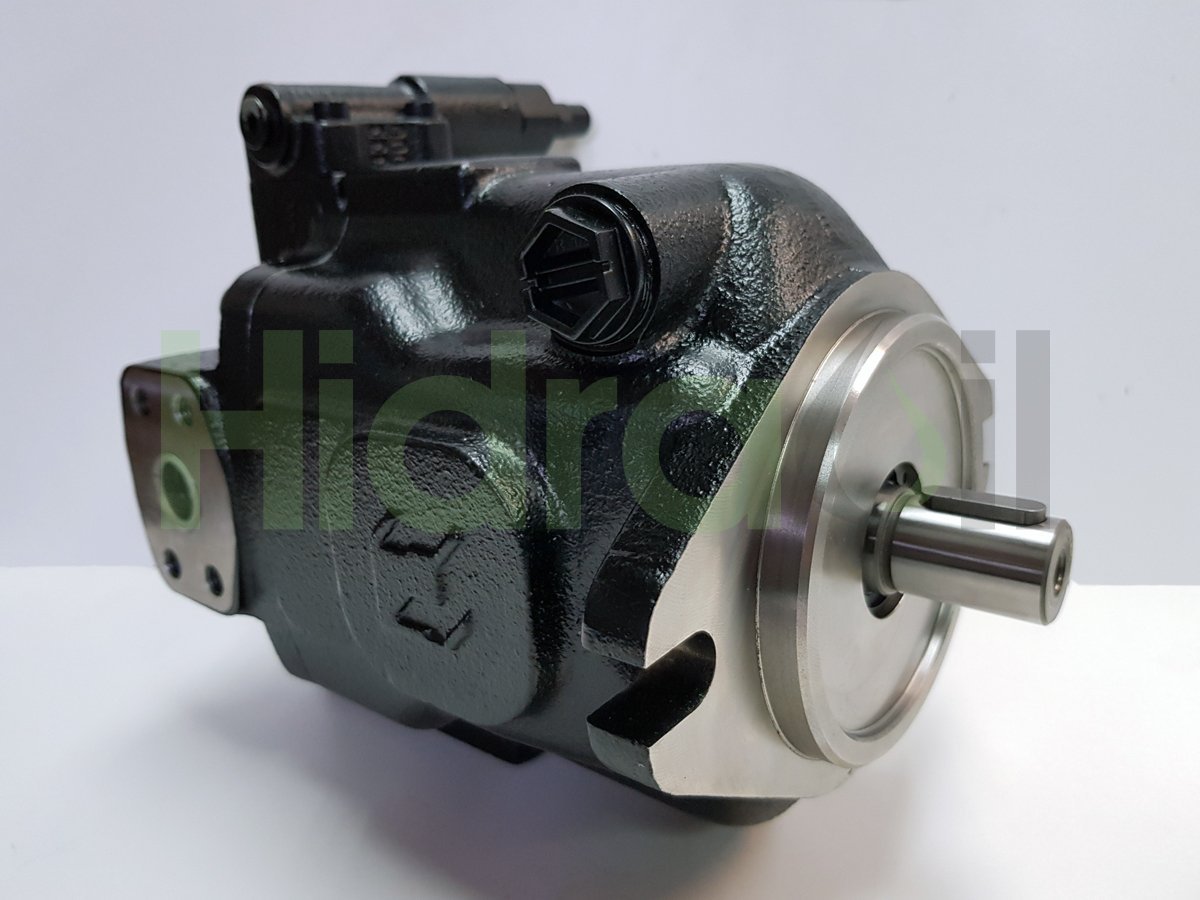

PVPC-C-5090/1D Atos hydraulic piston pump variable displacement 88 cm3 with cylindrical shaft and manual pressure compensator
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX102632
- Brand
- Atos
- Identification number
- PVPC-C-5090/1D
- Other numbers
- PVPC-C-5090/1D 11 PVPC-C-5090/1D 12 PVPCC50901D PVPCC50901D11 PVPCC50901D12 PVPC C 5090 1D 11 12
- Approximate weight (kg)
- 33,0
Description
Hydraulic Piston pump Variable Displacement.
Displacement: 88 cm3/rev.
Flow @ 1450 rpm: 127.6 liters/minute.
Max working pressure: 250 bar.
Rotation: Clockwise rotation (looking at the pump shaft from the front).
Control Type: Control by setting pressure mechanically. Pump displacement is reduced when system pressure reaches control set pressure.
Pressure setting range: Between 20 and 315 bar. Factory setting is 250 bar.
Speed range: From 500 to 2000 rpm. For higher speed than 1800 rpm; pump inlet must be below oil tank level and inlet line dimensions must be well designed.
Shaft type: Straight shaft 1-1/4" (31.75 mm) Diameter and parallel key Width 5/16" (7.94 mmm).
Displacement: 88 cm3/rev.
Flow @ 1450 rpm: 127.6 liters/minute.
Max working pressure: 250 bar.
Rotation: Clockwise rotation (looking at the pump shaft from the front).
Control Type: Control by setting pressure mechanically. Pump displacement is reduced when system pressure reaches control set pressure.
Pressure setting range: Between 20 and 315 bar. Factory setting is 250 bar.
Speed range: From 500 to 2000 rpm. For higher speed than 1800 rpm; pump inlet must be below oil tank level and inlet line dimensions must be well designed.
Shaft type: Straight shaft 1-1/4" (31.75 mm) Diameter and parallel key Width 5/16" (7.94 mmm).
More information
- Category: Hydraulic Pumps
- Category: Piston
- Category: Axial
- Category: Variable displacement
- Category: Atos
- Category: PVPC
- Category: C-Pressure manual control
- Category: Straight shaft
