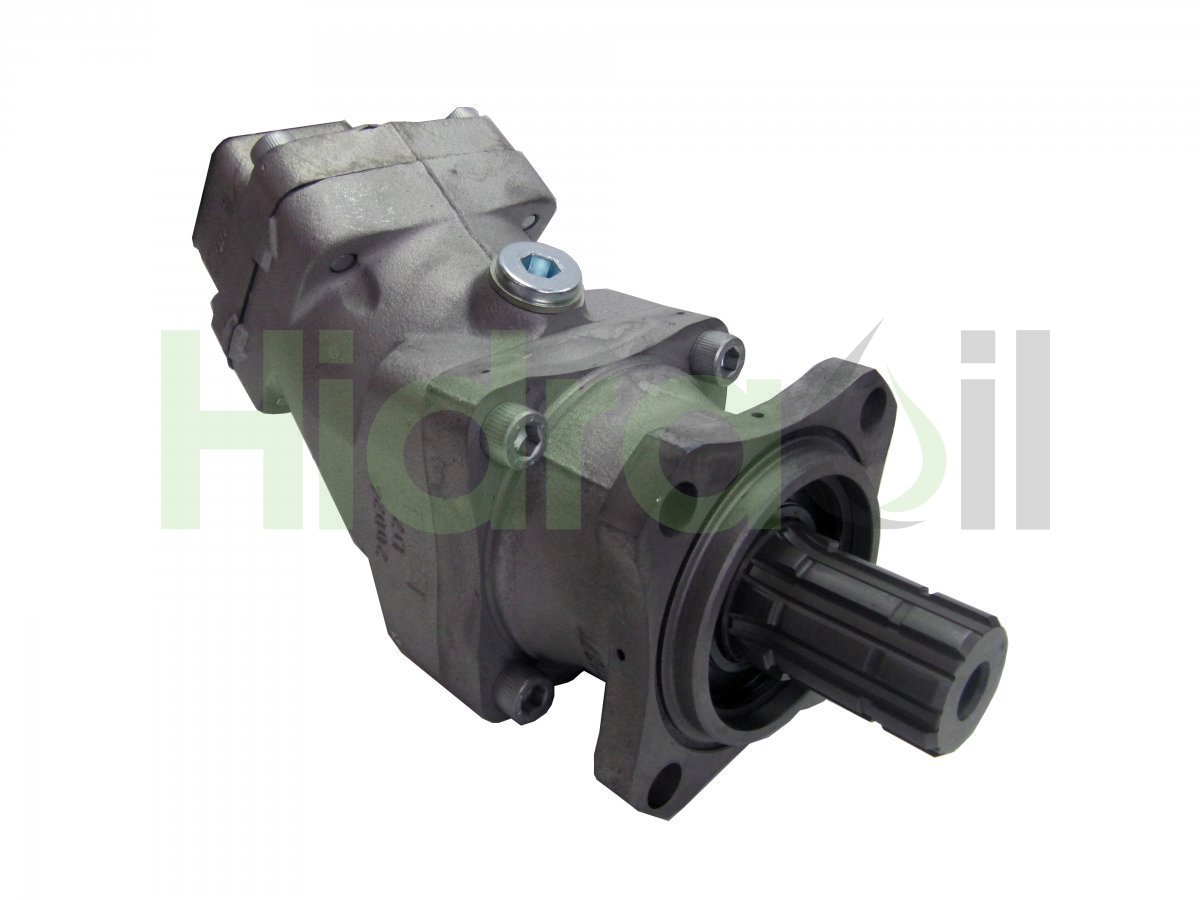

SCP-017R-N-DL4-L35-S0S-000 Sunfab hydraulic piston pump bent axis 17 cm3 splined shaft z8
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100371
- Brand
- Sunfab
- Identification number
- SCP-017R-N-DL4-L35-S0S-000
- Other numbers
- SCP017RNDL4L35S0S000 SCPO17RNDL4L35S0S000 SC017R SCP017R SC 017 R SCP 017 R
- Approximate weight (kg)
- 8,3
Description
Bomba hidráulica from pistones acodada Sunfab para aplicaciones móviles con una exigencia alta.
Type: Fixed displacement for open circuit.
Displacement: 17 cm3/rev
Rotation: Clockwise rotation
Flange type: DIN from 4 taladros (ISO 7653-D)
Shaft type: Splined from 8 tooth con diámetro exterior 34,9 mm (DIN 5462 / ISO 14 tipo B8x32x36)
Max working Pressure: 400 bar
Max speed: 2300 rpm (max continuos operation), 3000 rpm (intermittently).
Flow @ 500 rpm: 6,3 liters/minute
Flow @ 1000 rpm: 12,6 liters/minute
Flow @ 1500 rpm: 18,9 liters/minute
Applications: Se monta directamente en la toma from fuerza o up to través from un eje intermedio en un soporte bastidor. Suele montarse en camiones, por ejemplo para basculantes, grúas from carga, elevadores from gancho, etc.
Type: Fixed displacement for open circuit.
Displacement: 17 cm3/rev
Rotation: Clockwise rotation
Flange type: DIN from 4 taladros (ISO 7653-D)
Shaft type: Splined from 8 tooth con diámetro exterior 34,9 mm (DIN 5462 / ISO 14 tipo B8x32x36)
Max working Pressure: 400 bar
Max speed: 2300 rpm (max continuos operation), 3000 rpm (intermittently).
Flow @ 500 rpm: 6,3 liters/minute
Flow @ 1000 rpm: 12,6 liters/minute
Flow @ 1500 rpm: 18,9 liters/minute
Applications: Se monta directamente en la toma from fuerza o up to través from un eje intermedio en un soporte bastidor. Suele montarse en camiones, por ejemplo para basculantes, grúas from carga, elevadores from gancho, etc.
More information
- Category: Hydraulic Pumps
- Category: Piston
- Category: Axial
- Category: Fixed displacement
- Category: Bent-Axis
- Category: Sunfab
- Last updated: 2018-07-05 09:24:35
