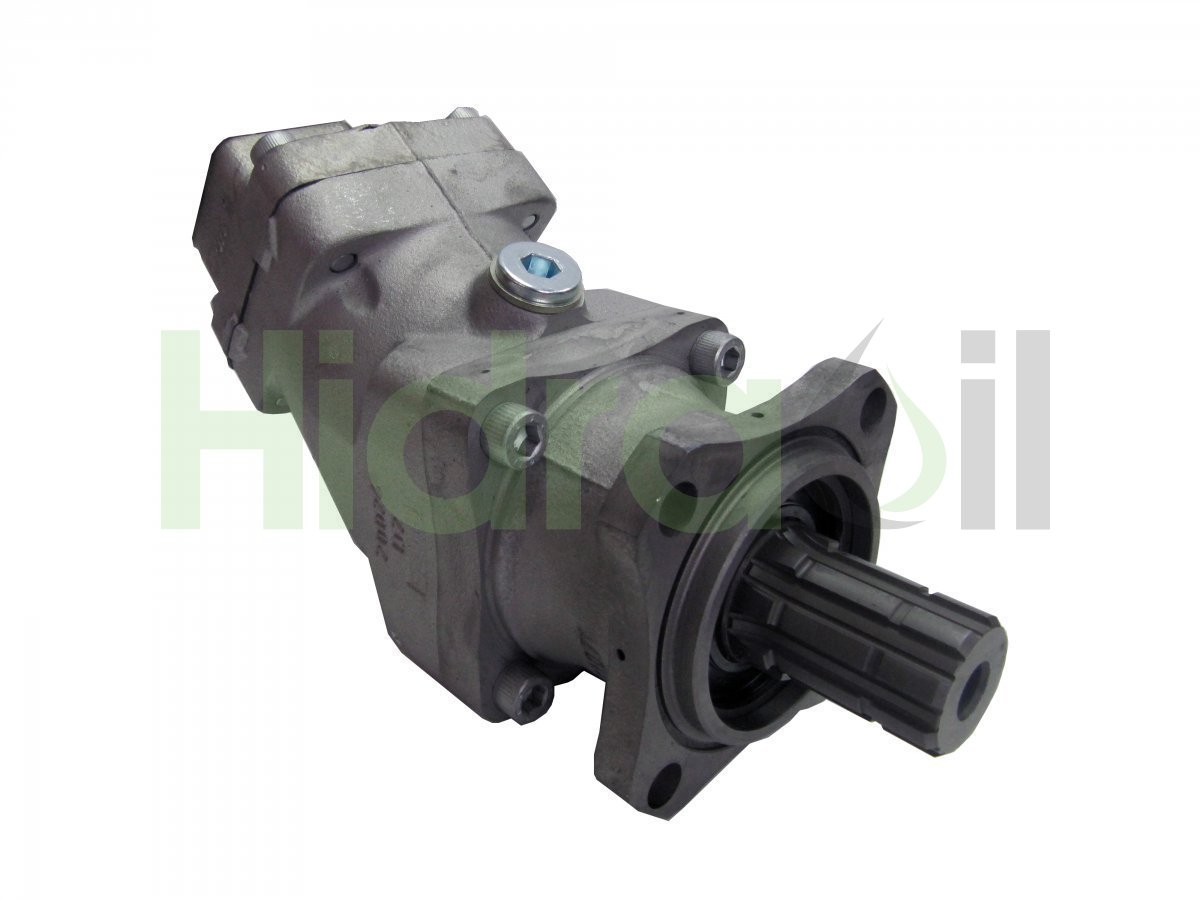

SCP-056L-N-DL4-L35-S0S-000 Sunfab hydraulic piston pump bent axis 56 cm3 splined shaft z8
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100016
- Brand
- Sunfab
- Identification number
- SCP-056L-N-DL4-L35-S0S-000
- Other numbers
- SCP056LNDL4L35S0S000 SCPO56LNDL4L35S0S000
- Approximate weight (kg)
- 11,7
Description
Bomba hidráulica from pistones acodada from caudal fijo Sunfab para aplicaciones móviles con una exigencia alta.
Applications: Se monta directamente en la toma from fuerza o up to través from un eje intermedio en un soporte bastidor. Suele montarse en camiones, por ejemplo para basculantes, grúas from carga, elevadores from gancho, etc.
Flange type: DIN flange 4 holes (ISO 7653-D).
Flow @ 1500 rpm: 84 liters/minute.
Displacement: 56 cm3/rev.
Circuit type: For open circuit applications.
Shaft type: Splined shaft z8 External diameter 34.9 mm (DIN 5462 / ISO 14 type B8x32x36).
Max working Pressure: 400 bar.
Rotation: Counterclockwise rotation (fácilmente se puede cambiar el sentido from giro CW rotation girando la tapa from dirección).
Max speed: 1900 rpm (max continuos operation), 2500 rpm (intermittently).
Applications: Se monta directamente en la toma from fuerza o up to través from un eje intermedio en un soporte bastidor. Suele montarse en camiones, por ejemplo para basculantes, grúas from carga, elevadores from gancho, etc.
Flange type: DIN flange 4 holes (ISO 7653-D).
Flow @ 1500 rpm: 84 liters/minute.
Displacement: 56 cm3/rev.
Circuit type: For open circuit applications.
Shaft type: Splined shaft z8 External diameter 34.9 mm (DIN 5462 / ISO 14 type B8x32x36).
Max working Pressure: 400 bar.
Rotation: Counterclockwise rotation (fácilmente se puede cambiar el sentido from giro CW rotation girando la tapa from dirección).
Max speed: 1900 rpm (max continuos operation), 2500 rpm (intermittently).
More information
- Category: Hydraulic Pumps
- Category: Piston
- Category: Axial
- Category: Fixed displacement
- Category: Bent-Axis
- Category: Sunfab
- Last updated: 2015-03-10 19:04:18
