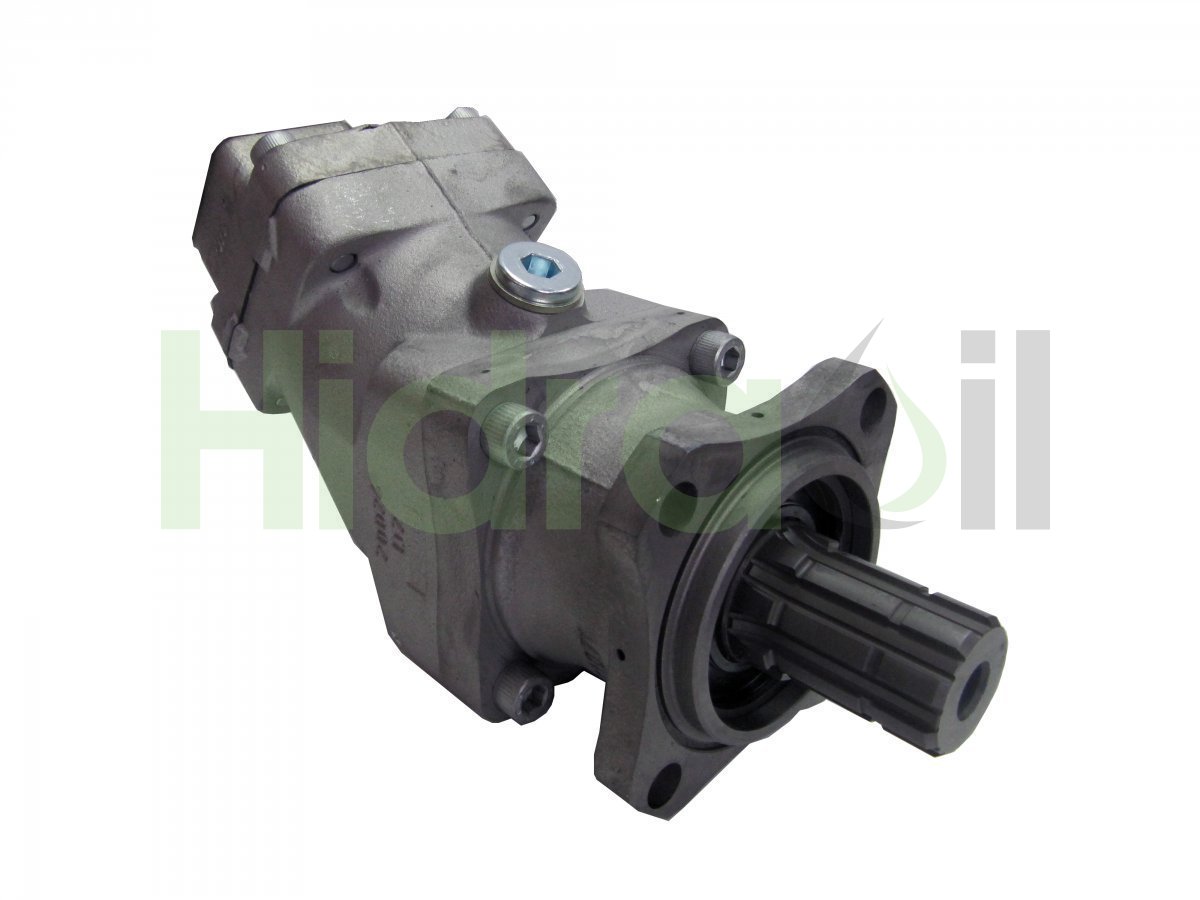

SCP-056R-N-DL4-L35-S0S-000 Sunfab hydraulic piston pump bent axis 56 cm3 splined shaft z8

Price and availability SHIPPING WORLDWIDE
REQUEST PRICE & AVAILABILITY

Availability: Inquire about stock

Price and availability

Payment and shipping methods

Visa · Mastercard · PayPal · Stripe · Google Pay

DHL · FedEx · UPS

Product identification

Hidraoil Part number
GFX100017
Brand
Sunfab
Identification number
SCP-056R-N-DL4-L35-S0S-000
Other numbers
SCP056RNDL4L35S0S000 SCPO56RNDL4L35S0S000
Approximate weight (kg)
11,7

Description

Sunfab hydraulic bent-axis piston pump for demanding mobile applications.
Type: Fixed displacement for open circuit.
Displacement: 56 cm3/rev
Rotation: Clockwise rotation, easily changed to counterclockwise by rotating the direction cover. The pump is supplied with CCW rotation as standard.
Flange type: DIN flange with 4 holes (ISO 7653-D).
Shaft type: Splined shaft with 8 teeth and 34,9 mm outside diameter (DIN 5462 / ISO 14 type B8x32x36).
Maximum working pressure: 400 bar
Maximum speed: 1900 rpm (maximum continuous operation), 2500 rpm (intermittent operation).
Flow @ 500 rpm: 28 liters/minute
Flow @ 1000 rpm: 56 liters/minute
Flow @ 1500 rpm: 84 liters/minute
Applications: Mounts directly on the PTO or via an intermediate shaft on a frame support. Common truck applications include tippers, loading cranes and hook lifts.
