Product identification

• Hidraoil Part number: GFX100220
• Brand of product: Vickers
• Part number: V20 1P11P 1C11
• Other numbers: V201P11P1C11

Description

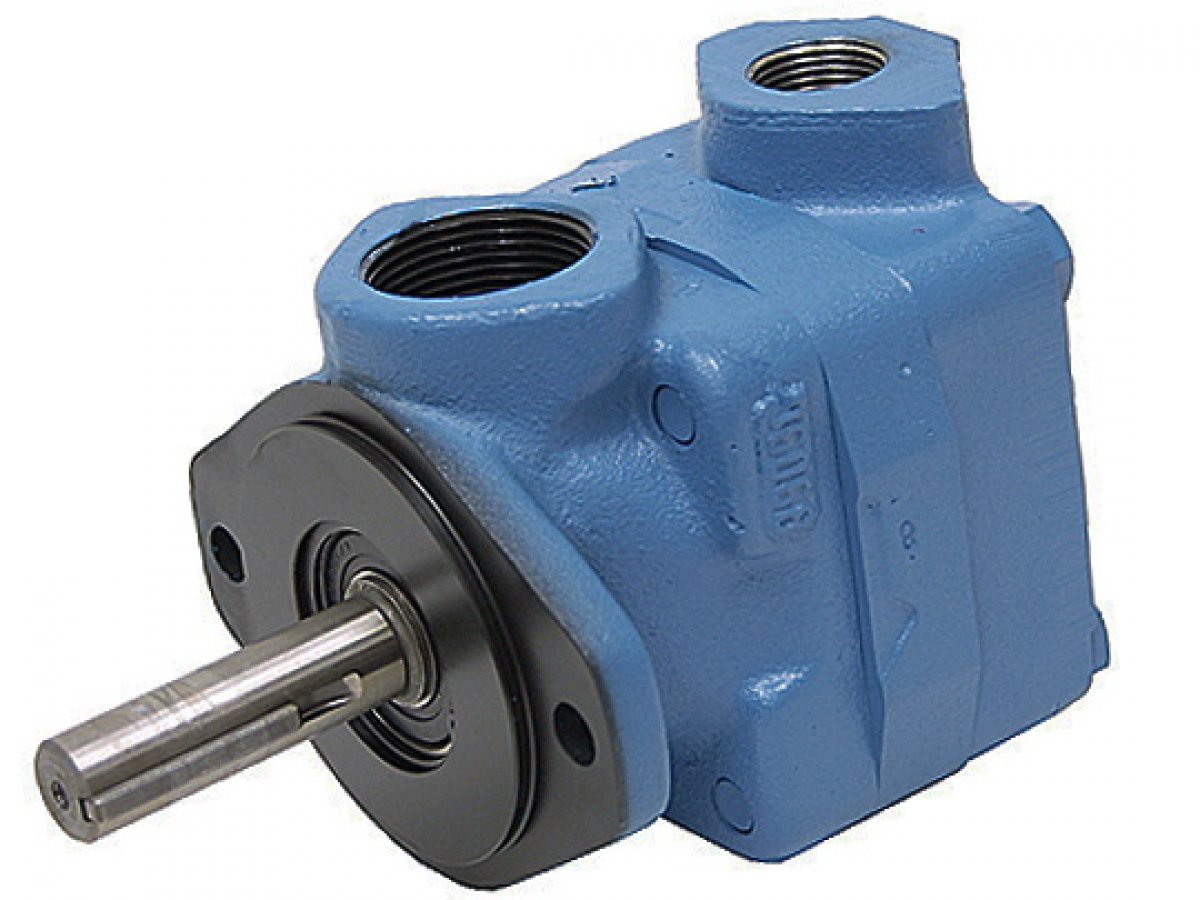

• Hydraulic vane pump Parker fixed displacement.
  Flow @ 1200 rpm y 7 bar (100 psi): 43,5 liters/minute (11 USgpm)
  Displacement: 36,4 cm3/rev
  Max working pressure: 172 bar (2500 psi)
  Max speed: 2500 rpm
  Flange type: brida con 2 taladros from fijación (tipo SAE A)
  Shaft type: eje cilíndrico from diámetro 19,05 mm con chaveta
  Inlet port: 1-1/4" NPT
  Outlet port: 3/4" NPT
  Posición from la toma from salida: en línea con la from entrada
  Rotation: CW rotation
