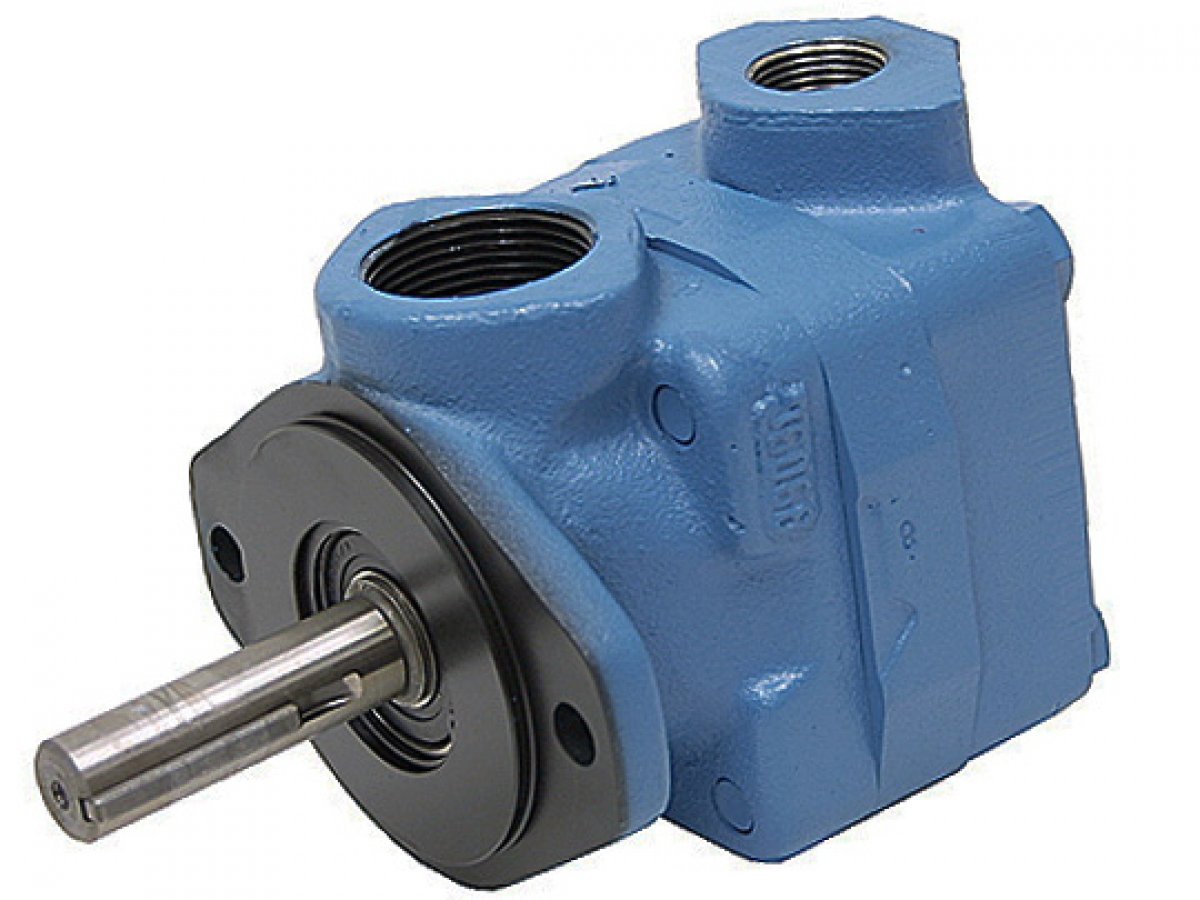

V20 1P9P 1C11 Vickers hydraulic vane pump 9 GPM straight shaft
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100219
- Brand
- Vickers
- Identification number
- V20 1P9P 1C11
- Other numbers
- V201P9P1C11
- Approximate weight (kg)
- 7,7
Description
Hydraulic vane pump Parker fixed displacement.
Flow @ 1200 rpm y 7 bar (100 psi): 34,8 liters/minute (9 USgpm)
Displacement: 29,7 cm3/rev
Max working pressure: 172 bar (2500 psi)
Max speed: 2800 rpm
Flange type: brida con 2 taladros from fijación (tipo SAE A)
Shaft type: eje cilíndrico from diámetro 19,05 mm con chaveta
Inlet port: 1-1/4" NPT
Outlet port: 3/4" NPT
Posición from la toma from salida: en línea con la from entrada
Rotation: CW rotation
Flow @ 1200 rpm y 7 bar (100 psi): 34,8 liters/minute (9 USgpm)
Displacement: 29,7 cm3/rev
Max working pressure: 172 bar (2500 psi)
Max speed: 2800 rpm
Flange type: brida con 2 taladros from fijación (tipo SAE A)
Shaft type: eje cilíndrico from diámetro 19,05 mm con chaveta
Inlet port: 1-1/4" NPT
Outlet port: 3/4" NPT
Posición from la toma from salida: en línea con la from entrada
Rotation: CW rotation
More information
- Category: Hydraulic Pumps
- Category: Vane
- Category: Fixed displacement
- Category: Vickers
- Category: V20
- Last updated: 2015-01-31 20:54:00
